? The system adopts programmable PLC control, and the operation isguided by Chinese language, which is safe and reliable.    ? Manual barrel loading, automatic filling, automatic conveying, manual capping, automatic positioning, easy to disassemble and wash    ? The filling gun is manufactured with an integral process to prevent dripping and splashing; the quick-release connector is easy to disassemble and clean.    ? The system target value can be set freely, and the height of the filling gun is adjustable, suitable for rapid filling of packaging barrels of various specifications.    ? Good stability, reduce losses, save costs, improve  operating efficiency, and reduce manual operation pressure.

Features
Intelligent and Efficient: This machine prohibits filling if a bucket is absent on the weighing platform, thanks to its advanced differential pressure zero-time bucket collision protection feature. Moreover, it operates automatically.
Experience seamless automation with functions like automatic peeling, intelligent anti-fooling, and fault detection, all designed to ensure optimal performance during filling.
Now, a single operator can simultaneously manage both the filling and capping operations with remarkable ease.
Professional Filling Gun: Engineered with precision, our filling gun boasts German technology-derived five-layer seals, ensuring flawless performance.
The design ensures a no-drip finish once filling is completed, maintaining cleanliness and efficiency.
Easy to Operate: With an adjustable packaging barrel positioning groove, users enjoy fast and accurate positioning. The system's automation simplifies the process.
The system intelligently detects barrel position and initiates filling automatically. The filling gun is adjustable by 150mm, accommodating various barrel specifications.
It's perfectly suited for barrels of the same specification, ensuring uniformity across operations.
Function Switching: Effortlessly switch between net weight/gross weight modes and choose between automatic/manual operation, tailored to your needs.

How to Operate

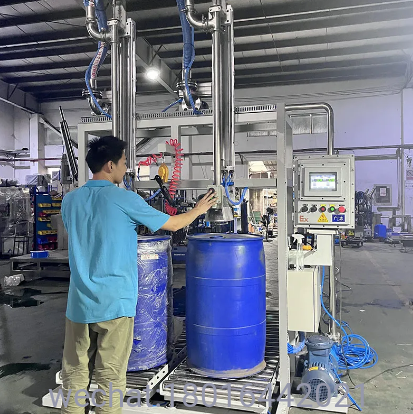

To operate, place the bucket manually on the weighing platform for swift positioning. The system detects the bucket's position to align the filling gun.
The gun automatically adjusts, initiating with an automatic peel, followed by the opening of the filling gun and ball valve group to commence filling.
The process involves loading through four stages-covering large, medium, small, and trace quantities-until reaching the target value.
Upon reaching the target, the filling gun automatically retracts, allowing manual transport to the lid lock area to complete the process with the [Lock lid] button.
The pneumatic locking cover function ensures a secure seal, complemented by simple manual palletizing.

Touch Screen PLC Control
Equipped with a touch screen, PLC, and a C3 level load cell, the system features dual 6-bit high-precision weighing controllers, sampling at speeds up to 128 times/second, alongside a frequency converter, ensuring unmatched filling quality and precision.
