Semi-Automatic Air Valve Bag Packing Machine for Mortars/Barite/ Pigments/ Plastic Pellets/Plastic Resins

2025-07-05 08:38:09 glzon

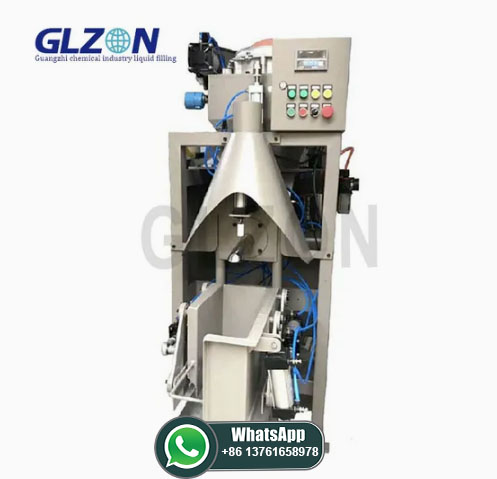

Air Valve Bag Packing Machine

Model NO.
GZM-50A
Automatic Grade
Semi-Automatic
Application
Cleaning, Detergent, Cosmetics, Skin Care Products, Oil, Tea, Rice, Flour, Seasoning
Type
Filling and Sealing Machine
Forming Species
Bag Moulding
Forming Function
Forming, Filling
Driven Type
Mechanical
Material Type
Powder
Packaging
Bag
Packaging Material
Bamboo, Wood
Core Components
Pressure Vessels, Pumps, Plcs, Gears, Bearings, Ge
Voltage
220V 380V 50/60Hz
Applicable Industries
Hotels, Manufacturing Plants, Food and Beverage Pl
Quantitative Error
±0.2%Fs
Transport Package
Wood
Specification
1850mmX700mmX1200mm
Trademark
GLZON
Origin
Shanghai

Product Description


Product Description

Semi-Automatic Air Valve Bag Packing Machine for Mortars/Barite/ Pigments/ Plastic Pellets/Plastic Resins
Applicable material

Semi-Automatic Air Valve Bag Packing Machine for Mortars/Barite/ Pigments/ Plastic Pellets/Plastic Resins                                 rice                                               flour                                              Buckwheat                                        cat litter
Semi-Automatic Air Valve Bag Packing Machine for Mortars/Barite/ Pigments/ Plastic Pellets/Plastic Resins                           peanut                                         dog food                                          Stoneboog                                chemical fertilizer
Semi-Automatic Air Valve Bag Packing Machine for Mortars/Barite/ Pigments/ Plastic Pellets/Plastic Resins              coarse food grains                                        tea                                                    cereal                                              candy

Product Parameters

Applicable materialsfood pellets, corn, seed, Sesame, beans, fertilizer granules, Rubber particles, feed pellets,coal...
Package weight range15-50kg/ bag
power supplyAC220V 380V 50/60Hz
Air pressure (Mpa)0.6-0.8MPA
Filling accuracy (%)±0.2%
Packaging speed200-300 packs/hour
Materialsus304/sus316/carbon steel/PTFE

Product features

    ? The single-station independent weighing system adopts servo motor arc gate control, which enables fast weighing and high precision.
    ? High-resolution three-point suspension sensor with high sensitivity and more stable weighing.
    ? The Chinese and English touch screen operation interface makes the parameter settings clear at a glance and the operation is more user-friendly. A variety of different product parameters can be set to realize the selection of different products and measurement values.
    ? It is equipped with a linkage interface to realize linkage work with other packaging equipment.
    ? This unit consists of a bag preparation warehouse, bag taking and sorting device, bag loading robot, bag clamping and unloading device, bag pushing device, bag mouth guide device, vacuum system and control system.
Semi-Automatic Air Valve Bag Packing Machine for Mortars/Barite/ Pigments/ Plastic Pellets/Plastic Resins

Detailed Photos

Semi-Automatic Air Valve Bag Packing Machine for Mortars/Barite/ Pigments/ Plastic Pellets/Plastic Resins
Features
Low pollution adopts low air pressure instantaneous flow control. The amount of mixed air during the transportation of materials is very small, and the air pressure is extremely low (about 0.01-0.05Mpa). During the packaging process, bulging, breaking, and material leakage are avoided, effectively controlling the appearance of dust. leakage, effectively reducing the amount of pollution from traditional packaging machines by 70%-90%.
How to operate
The material is added to the weighing hopper by the feeding mechanism (pneumatic gate). After the controller receives the weight signal from the sensor, it controls according to the preset program value. At the beginning, rapid feeding (fast, medium and slow feeding at the same time) is performed. When the weight ≥ (target value - coarse measurement value), stop the fast acceleration signal output and enter the medium speed (medium acceleration and slow acceleration at the same time) feeding; when the weight ≥ (target value - fine measurement value), stop the medium speed Add signal output and enter slow speed (slow adding) feeding; when the weight ≥ (target value - overshoot value), stop slow adding signal output, the feeding door is completely closed, and fixed value weighing is completed. After the bag clamping signal is input, the weighing hopper discharge door automatically opens. When the weight ≤ zero setting value, the weighing hopper discharge door automatically closes, and the material bag automatically releases and falls onto the conveyor belt, and is sent to the sewing machine. After sewing the bag, it enters the next process, and at the same time, the controller enters the next control cycle.
Semi-Automatic Air Valve Bag Packing Machine for Mortars/Barite/ Pigments/ Plastic Pellets/Plastic Resins
Semi-Automatic Air Valve Bag Packing Machine for Mortars/Barite/ Pigments/ Plastic Pellets/Plastic Resins
Touch screen PLC control
Touch screen, PLC, C3 level load cell, dual 6-bit high-precision weighing controller (sampling speed up to 128 times/second), and frequency converter to ensure filling quality and accuracy

Structure and composition
It is mainly composed of material inlet, feeding mechanism (gate), weighing hopper, bag clamping mechanism, frame, air suction port, pneumatic system, sensor, control box, etc.
Semi-Automatic Air Valve Bag Packing Machine for Mortars/Barite/ Pigments/ Plastic Pellets/Plastic Resins

Company Profile
Semi-Automatic Air Valve Bag Packing Machine for Mortars/Barite/ Pigments/ Plastic Pellets/Plastic Resins

Shanghai Guangzhi Automation Equipment Co., Ltd. is a domestic
high-tech enterprise located in Songjiang District, Shanghai. This is
Shanghai's large industry and large equipment manufacturing base.
"High excellence and high compatibility" is the manufacturing guideline
of Shanghai Guangzhi Instrument Equipment Co., Ltd. The company
has passed the IS09001 international quality system certification and
IS014001 environmental management system certification. The
mechanical equipment is gradually passing the "CE certification".
Shanghai Guangzhi Specializing in the production of packaging
machinery, customers are welcome to negotiate.


Factory strength display
Semi-Automatic Air Valve Bag Packing Machine for Mortars/Barite/ Pigments/ Plastic Pellets/Plastic Resins
                                                                     Shipping scenario
Semi-Automatic Air Valve Bag Packing Machine for Mortars/Barite/ Pigments/ Plastic Pellets/Plastic ResinsSemi-Automatic Air Valve Bag Packing Machine for Mortars/Barite/ Pigments/ Plastic Pellets/Plastic Resins                                                                         Component brand
Semi-Automatic Air Valve Bag Packing Machine for Mortars/Barite/ Pigments/ Plastic Pellets/Plastic Resins
Special note

Note: Our company reserves the right to update product designs and speci?cations at any time. The product information description on this page does not constitute any guarantee or commitment, and is not regarded as a product or service contract term.
