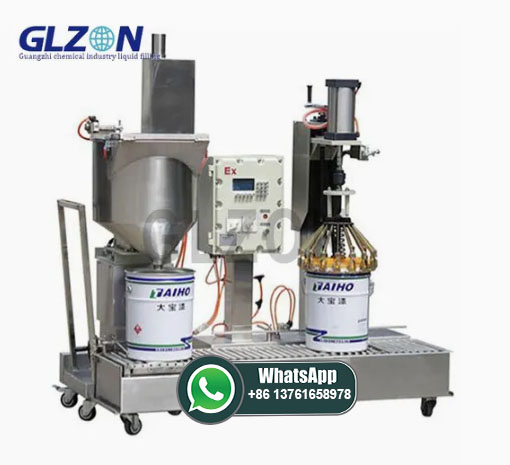

Fully Automated Paint Can Filling and Sealing Machine for 10-30L
Packaging & Delivery
Product Description
10L 30L 50L
200L 1000L 1000L| Applicable materials | Coatings, inks, paints, asphalt, glue, lubricants, petrochemicals, fine chemicals and other liquids |
| Filling range(L) | 1-30L |
| power supply | AC220V 50/60Hz |
| Air pressure (Mpa) | 0.6-0.8MPA |
| Filling accuracy (%) | ±0.2% |
| Speed(can/min) | 3-6 barrels(Depending on the material flow rate) |
| Material | sus304/sus316/carbon steel/PTFE |
| ? The system adopts programmable PLC control, and the operation isguided by Chinese language, which is safe and reliable. |
| ? Manual barrel loading, automatic filling, automatic conveying, manual capping, automatic positioning, easy to disassemble and wash |
| ? The filling gun is manufactured with an integral process to prevent dripping and splashing; the quick-release connector is easy to disassemble and clean. |
| ? The system target value can be set freely, and the height of the filling gun is adjustable, suitable for rapid filling of packaging barrels of various specifications. |
| ? Good stability, reduce losses, save costs, improve operating efficiency, and reduce manual operation pressure. |
Diverter device: The filling nozzle head is equipped with a detachable diverter device to ensure a large flow of material. No splashing during filling, while ensuring filling accuracy;
Replacement chuck: The use of replaceable pneumatic cap clamping machine can be applied to different types of clamps on the market.Clamp lids for spec metal barrels. One-click operation, fast and accurate.
Manually place the bucket on the weighing platform to quickly locate the counterpart- the system automatically detects the bucket position - automatically peeling - automatically open the filling gun and ball valve group to start filling - large and small two-stage filling load--reach the target value-the filling gun automatically closes--manually move to the cover clamping area--press [Clamping lid] key pneumatic clamping lid---manual palletizing.
Touch screen, PLC, C3 level load cell, dual 6-bit high-precision weighing controller (sampling speed up to 128 times/second), and frequency converter to ensure filling quality and accuracy.
Computer weighing, submersible filling, frequency conversion three-speed adjustment. The filling volume can be set directly, easy to operate, and has a gap compensation function.
Our company
Shanghai Guangzhi Automation Equipment Co., Ltd. is a domestic high-tech enterprise located in Songjiang District, Shanghai. This is Shanghai's large industry and large equipment manufacturing base."High excellence and high compatibility" is the manufacturing guideline of Shanghai Guangzhi Instrument Equipment Co., Ltd. The company has passed the IS09001 international quality system certification and IS014001 environmental management system certification. The mechanical equipment is gradually passing the "CE certification". Shanghai Guangzhi Specializing in the production of packaging machinery, customers are welcome to negotiate.
Component brand
Note: Our company reserves the right to update product designs and speci?cations at any time. The product information description on this page does not constitute any guarantee or commitment, and is not regarded as a product or service contract term.
-
