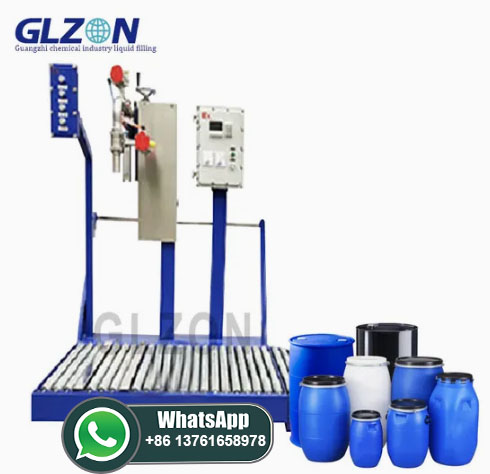

Semi Auto Drum Filling Machine for Filling 200L Dyes and Cleaning Agents

2025-07-05 11:42:59 glzon

Semi Auto Drum Filling Machin

Model NO.
GZM-200L
Type
Weighing-type Filling Machine
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Single-Head
Feed Cylinder Structure
Single-Room Feeding
Dosing Device
Drum Barrel
Filling Principle
Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Linear
Packaging
Barrel
Packaging Material
Wood
Application
Food, Beverages, Daily Necessities, Chemicals
Core Components
Pressure Vessels, Pumps, Plcs, Gears, Bearings, Ge
Voltage
220V 50/60Hz
Applicable Industries
Hotels, Manufacturing Plants, Food and Beverage Pl
Filling Accuracy
0.2%
Transport Package
Wood
Specification
3900*1500*1700mm
Trademark
GLZON
Origin
Shanghai

Packaging & Delivery

Package Size
160.00cm * 80.00cm * 180.00cm
Package Gross Weight
300.000kg

Product Description



Product Description

Semi Auto Drum Filling Machine for Filling 200L Dyes and Cleaning Agents
Suitable for barrel shape



Semi Auto Drum Filling Machine for Filling 200L Dyes and Cleaning Agents                             10L                                                                               30L                                                                                    50L
Semi Auto Drum Filling Machine for Filling 200L Dyes and Cleaning Agents
                            200L                                                                               1000L                                                                             1000L

Product Parameters

Applicable materialsCoatings, inks, paints, asphalt, glue, lubricants, petrochemicals, fine chemicals and other liquids
Filling range(L)100-300L
power supplyAC220V 50/60Hz
Air pressure (Mpa)0.6-0.8MPA
Filling accuracy (%)±0.2%
Speed(can/hour)30-50 barrels(Depending on the material flow rate)
Materialsus304/sus316/carbon steel/PTFE

Product features

    ? The system adopts programmable PLC control, and the operation isguided by Chinese language, which is safe and reliable.
    ? Manual barrel loading, automatic filling, automatic conveying, manual capping, automatic positioning, easy to disassemble and wash
    ? The filling gun is manufactured with an integral process to prevent dripping and splashing; the quick-release connector is easy to disassemble and clean.
    ? The system target value can be set freely, and the height of the filling gun is adjustable, suitable for rapid filling of packaging barrels of various specifications.
    ? Good stability, reduce losses, save costs, improve  operating efficiency, and reduce manual operation pressure.
Semi Auto Drum Filling Machine for Filling 200L Dyes and Cleaning Agents
Detailed Photos


Semi Auto Drum Filling Machine for Filling 200L Dyes and Cleaning Agents
Features

It adopts the type below the liquid level in the barrel, which is suitable for 200L single barrel filling;
The uniquely designed adjustable pneumatic ball valve and spray valve not only improve the particle discharging speed, but also ensure the particle discharging accuracy;
After the filling is completed, the dripping of residual liquid can be minimized;
The installation of the gas collection hood can avoid the release of volatile gases during the filling process and effectively protect the operator.
How to operate

During operation, as long as the empty barrel is loaded onto the empty barrel pipeline, the pipeline will automatically stop, and the nozzle device will automatically place the empty barrel directly under the nozzle;
The nozzle valve automatically descends to the barrel mouth, enters the full barrel pipeline, and the empty barrel is automatically tared, and then the specific gravity is accurately measured at two speeds;
After bundling, the spray valve automatically connects to the outside of the barrel, enters the full barrel pipeline, and reaches the capping position;
The capping machine stops, the cap is manually put on, and the capping machine pulls down to seal the cap, and the weighing is completed.
Semi Auto Drum Filling Machine for Filling 200L Dyes and Cleaning Agents

Semi Auto Drum Filling Machine for Filling 200L Dyes and Cleaning Agents
Touch screen PLC control

Touch screen, PLC, C3 level load cell, dual 6-bit high-precision weighing controller (sampling speed up to 128 times/second), and frequency converter to ensure filling quality and accuracy

Pneumatic filling

Computer weighing, submersible filling, frequency conversion three-speed adjustment. The filling volume can be set directly, easy to operate, and has a gap compensation function
Semi Auto Drum Filling Machine for Filling 200L Dyes and Cleaning Agents

Company Profile

Semi Auto Drum Filling Machine for Filling 200L Dyes and Cleaning Agents

Our company

Shanghai Guangzhi Automation Equipment Co., Ltd. is a domestic high-tech enterprise located in Songjiang District, Shanghai. This is Shanghai's large industry and large equipment manufacturing base."High excellence and high compatibility" is the manufacturing guideline of Shanghai Guangzhi Instrument Equipment Co., Ltd. The company has passed the IS09001 international quality system certification and IS014001 environmental management system certification. The mechanical equipment is gradually passing the "CE certification". Shanghai Guangzhi Specializing in the production of packaging machinery, customers are welcome to negotiate.



Factory strength display



Semi Auto Drum Filling Machine for Filling 200L Dyes and Cleaning Agents
Shipping scenario
Semi Auto Drum Filling Machine for Filling 200L Dyes and Cleaning AgentsSemi Auto Drum Filling Machine for Filling 200L Dyes and Cleaning Agents

Component brand

Semi Auto Drum Filling Machine for Filling 200L Dyes and Cleaning Agents
Special note

Note: Our company reserves the right to update product designs and speci?cations at any time. The product information description on this page does not constitute any guarantee or commitment, and is not regarded as a product or service contract term.
