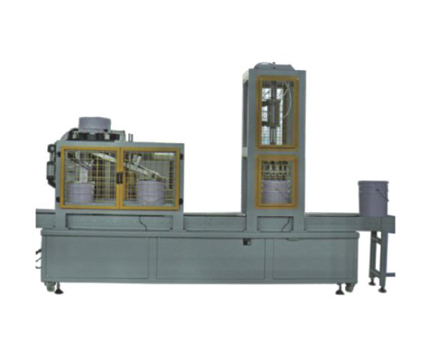

20L capping machine

Explosion-proof capper for 20L drums with ±1% torque control. ATEX Zone 1 rating, anti-static design & vapor recovery. 35 caps/min. Ideal for solvents/flammables.

  • Brand: glzon
  • Model: GZM_30L

Product Essence: Hermetic Sealing in Hazard Zones

Shanghai Guangzhi Automation’s 20L Explosion-Proof Capper delivers military-grade closure integrity for flammable solvents and chemicals in ATEX Zone 1 environments. Featuring ±1% torque accuracy (5-50 N·m), intrinsically safe sensors, and nitrogen-inerted sealing, it achieves 35 caps/minute while eliminating ignition risks and ensuring 100% compliance with UN/DOT packaging standards.


Core Technology Innovations

1. ATEX-Certified Safety

ComponentEx-Proof Specification
Servo SpindlesEx d IIC T4 pressurized enclosure
Control System24VDC intrinsic safety (Ex ia)
Static ControlConductive brushes (<10? Ω) + auto-grounding
SensorsEx ia-certified proximity sensors

2. Precision Torque Control

  • Closed-Loop Servo Drive:

    • ±0.5 N·m accuracy across 5-50 N·m range

    • Auto-compensation for cap wear/deformation

  • Anti-Cross-Thread AI:

    • 3D vision detects ±3° misalignment

    • Halts operation if thread resistance >15%

3. Vapor Containment System

  • Dual-Seal Technology:

    • Primary: PTFE gasket compression

    • Secondary: Nitrogen purge (O? <0.5%)

  • Zero Emission Design:

    • Vapor recovery efficiency ≥99% (EPA Method 21)

    • Residual solvent ≤0.1ml


Technical Specifications

ParameterStandard ModelATEX Model
Drum Compatibility20L (?290×340mm)20L (?290×340mm)
Cap TypesScrew caps (?60-120mm)Screw caps (?60-100mm)
Throughput35 caps/min30 caps/min
Torque Range5-50 N·m (±1%)5-40 N·m (±1.5%)
Power380V/50Hz, 2.5kW24VDC intrinsic safety
N? Consumption10 L/min @ 4bar8 L/min @ 4bar
Leak Rate<0.001 mL/min (ASTM D4991)<0.001 mL/min
Safety RatingCE, ISO 9001ATEX, IECEx, SIL 2
Footprint (L×W×H)1800×1200×2200mm2000×1200×2200mm

Chemical-Specific Engineering

Chemical CategorySpecialized Feature
Ketones (Acetone)Static-dissipative chuck jaws
Alcohols (Ethanol)Vapor recovery hood + carbon adsorption
Aromatics (Toluene)Nitrogen inerting during capping
Acids (HCl)Hastelloy C276 spindle

Smart Safety Ecosystem

10" ATEX HMI (Ex de IIC T6)

  • Real-Time Dashboards:

    • Torque profile analytics

    • Vapor concentration (ppm)

    • Grounding resistance (Ω)

  • Predictive Alerts:

    • Seal wear index

    • Bearing temperature anomalies

Triple Safety Interlocks (SIL2)

  1. Auto-shutdown if:

    • Static charge >5kV

    • Vapor >10% LEL

    • Grounding fault detected

  2. Emergency nitrogen purge (0.3s activation)


Operational Impact

German Chemical Plant Case:

  • Challenge: Manual capping caused 5% leakage in acetone drums

  • Solution: ATEX capper with vapor recovery + torque control

  • Results:
    ? Zero leaks in 15,000+ drums
    ? VOC emissions reduced by 98%
    ? ROI in 11 months


Global Compliance & Upgrades

Certifications:

  • ATEX 2014/34/EU (Zone 1)

  • IECEx IEC 60079-0

  • UL 1203 (North America)

  • ISO 80079-36

Critical Upgrades:

ModuleFunction
Inline Leak TesterVacuum decay test (≤0.001 mL/min)
UV-C SterilizationPre-capping decontamination
Robotic Drum HandlingATEX-compliant auto-load/unload
AR Torque CalibrationHoloLens-guided setup

Support & Service

24/7 Hazardous Zone Support:

  • Remote diagnostics via intrinsically safe IIoT

  • Critical Spares Dispatch ≤48h:

    • Torque sensors

    • Conductive brushes

    • Vapor membranes

  • Lifetime torque calibration



APPLICABLE BARREL TYPE

Drum Filling Machine
