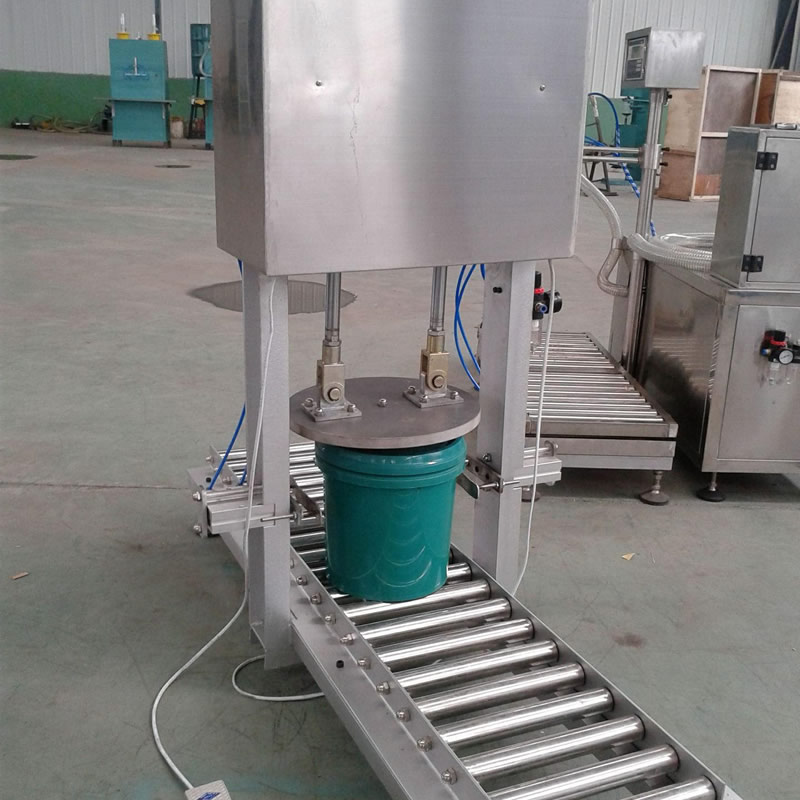

20L flat plate capping machine
Automatic flat plate capper for 20L drums with ±1% seal force accuracy. Handles screw caps, press-on lids & tamper bands. 40 caps/min. CE/FDA compliant.
- Brand: glzon
- Model: GZM_30L
Automatic flat plate capper for 20L drums with ±1% seal force accuracy. Handles screw caps, press-on lids & tamper bands. 40 caps/min. CE/FDA compliant.
Shanghai Guangzhi Automation’s 20L Flat Plate Capper revolutionizes drum sealing – delivering ±1% seal force accuracy for screw caps, press-on lids, and tamper bands on 20L drums. Featuring adaptive pressure control (200-2000N), self-centering alignment, and zero-scratch tooling, it achieves 40 caps/minute while eliminating leaks and ensuring 100% container integrity for chemicals, adhesives, and food-grade products.
1. Precision Pressure Control
System | Technical Advantage |
---|---|
Servo-Driven Platen | Closed-loop force control (±10N) |
Intelligent Lid Detection | 3D vision locates lids ±0.5mm |
Anti-Skid Technology | Vacuum-assisted lid stabilization |
Force Profiling | 3-stage compression (pre-seal/main/seal) |
2. Universal Lid Compatibility
Lid Type | Adaptive Tooling |
---|---|
Screw Caps | Auto-torque conversion (5-50 N·m) |
Press-On Lids | Controlled compression (0.5-3mm) |
Tamper Bands | Heat/ultrasonic sealing options |
Child-Safe Caps | Torque + push-down force hybrid |
3. Damage-Free Operation
ScratchGuard? Tooling:
POM/PTFE-coated contact surfaces
Auto-retract on misalignment
Self-Centering Drum Clamp:
Accommodates ±5mm container drift
Pneumatic side guides (0.5s positioning)
Parameter | Standard Model | GMP Model |
---|---|---|
Drum Compatibility | 20L (?290×340mm) | 20L (?290×340mm) |
Lid Types | Screw/press-on/tamper band | Same + aseptic seals |
Throughput | 40 caps/min | 35 caps/min |
Seal Force Range | 200-2000N (±1%) | 100-1500N (±0.8%) |
Power | 380V/50Hz, 3.2kW | 380V/50Hz, 3.0kW |
Air Consumption | 120 L/min @ 0.6MPa | 100 L/min @ 0.6MPa |
Leak Rate | <0.005 mL/min (ASTM D4991) | <0.002 mL/min |
Footprint (L×W×H) | 1800×1200×2200mm | 2000×1200×2400mm |
Chemical & Solvents
Vapor barrier sealing (O?<0.1%)
Static-dissipative tooling (<10? Ω)
Food & Pharma
FDA-grade UHMW-PE contact surfaces
Steam-sterilizable platens (SIP @ 121°C)
Paints & Adhesives
Anti-adhesion coating (resists epoxy/polyurethane)
Quick-release tooling (<30s cleanup)
10" HMI with Seal Profile Library
Real-Time Analytics:
Seal force distribution mapping
Lid alignment error tracking
OEE performance dashboard
Predictive Maintenance:
Pneumatic cylinder wear index
Belt tension monitoring
Industry 4.0 Integration
OPC UA/Modbus TCP connectivity
Blockchain-sealed audit trails
Remote firmware updates
US Adhesive Manufacturer Case:
Reduced seal failures from 8% to 0.05%
Eliminated $150k/year in product loss
ROI in 6 months via reduced rework
Certifications:
CE EN 415-6
FDA 21 CFR 177.2600
ISO 9001:2015
EHEDG (Option)
Critical Upgrades:
Module | Function |
---|---|
Vision Inspection | Lid defect/tamper band verification |
Nitrogen Flush | O? <0.1% for oxidation-sensitive products |
Robotic Drum Handling | Auto loading/unloading |
AR Calibration | HoloLens-guided force setup |
24/7 Global Response:
Remote diagnostics via IIoT gateway
Critical Spares Dispatch ≤48h:
Seal platens
Vacuum cups
Servo drives
Lifetime seal validation service
APPLICABLE BARREL TYPE
