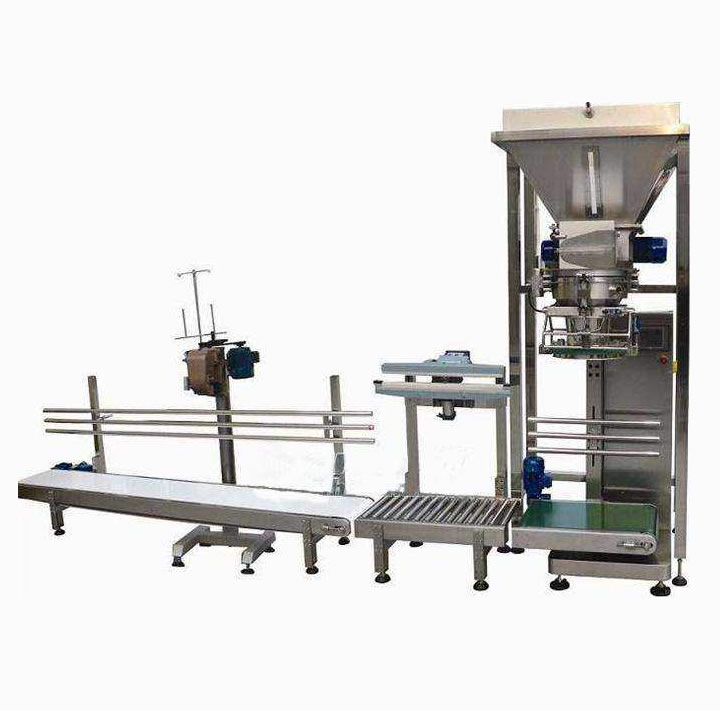

25Kg BAG PACKING MACHINE
Fully automatic 25kg bag packing machine with ±0.1% weighing accuracy. Handles granules/powders at 120 bags/hour. Dust containment & auto sewing. CE/FDA compliant.
- Brand: glzon
- Model: GZM-50V
Fully automatic 25kg bag packing machine with ±0.1% weighing accuracy. Handles granules/powders at 120 bags/hour. Dust containment & auto sewing. CE/FDA compliant.
Shanghai Guangzhi Automation’s 25Kg Bag Packing Machine delivers ±0.1% weighing accuracy for granules, powders, and pellets at 120 bags/hour. Featuring anti-bridging agitation, IP65 dust containment, and auto-tag/sewing integration, it reduces material loss by 98% while achieving <0.1% giveaway in fertilizer, food, and chemical industries.
1. Smart Gravimetric Filling
System | Technical Advantage |
---|---|
Multi-Cell Load Array | 4× OIML R61 Class 0.5 load cells (±0.05%) |
Anti-Bridging Agitator | Helical screw + vibration plate (sticky materials) |
Loss-in-Weight Control | Real-time flow compensation (±0.1%) |
Drip-Free Spout | Pneumatic seal + dust extraction |
2. Dust Containment Ecosystem
Closed-Loop Ventilation:
Negative pressure hood (≤1mg/m3 dust)
HEPA filtration (99.97% @ 0.3μm)
Clean-Out-of-Place (COP):
Tool-free disassembly <5 min
Vibrating screen self-clean
3. Automated Bag Handling
Step | Technology |
---|---|
Bag Feeding | Robotic suction cup pick-and-place |
Bag Mouth Opening | Dual vacuum cups + air knife assist |
Sealing | Auto sewing/staple/heat seal (choice) |
Tagging | RFID/QR code printer applicator |
Parameter | Powder Model | Granule Model |
---|---|---|
Capacity | 25kg (±0.1%) | 25kg (±0.15%) |
Throughput | 100 bags/hour | 120 bags/hour |
Material Density | 0.2-1.8 g/cm3 | 0.5-2.0 g/cm3 |
Bag Types | Woven/PP/PE bags | Paper/valve bags |
Dust Emission | ≤1 mg/m3 (ISO 14644) | ≤5 mg/m3 |
Power | 380V/50Hz, 6.5kW | 380V/50Hz, 5.5kW |
Air Consumption | 150 L/min @ 0.6MPa | 120 L/min @ 0.6MPa |
Bag Size | W400-600×H800-1200mm | Same |
Footprint (L×W×H) | 3500×2000×3500mm | 3500×2000×3500mm |
Product | Guangzhi Solution |
---|---|
Flour/Starch | Explosion-proof option (ATEX Zone 21) |
Fertilizer Granules | Anti-corrosion SS316L contact parts |
Carbon Black | Double airlock sealing |
Food Powders | USDA/FDA-compliant materials |
10" HMI with IoT Gateway
Real-Time Analytics:
OEE dashboard (uptime/bag count/rejects)
Material consumption per bag
Dust sensor readings
Predictive Maintenance:
Screw conveyor wear monitoring
Filter clogging alerts
Industry 4.0 Integration
OPC UA to SAP/ERP
Blockchain batch traceability
Remote firmware updates
Fertilizer Producer Case (USA):
Reduced giveaway from 0.8% to 0.05%
Eliminated $180k/year dust cleanup costs
ROI in 10 months
Certifications:
CE EN 61496-1 (Safety)
OIML R61 Class 0.5
ATEX 2014/34/EU (Zone 21)
FDA 21 CFR 177.2600
Critical Upgrades:
Module | Function |
---|---|
Checkweigher | ±10g real-time feedback |
Metal Detector | Fe 0.8mm / Non-Fe 1.5mm sensitivity |
Robotic Palletizing | 15 bags/min auto-stacking |
AR Troubleshooting | HoloLens-guided maintenance |
24/7 Global Bagging Support:
Remote diagnostics via IIoT
Critical Spares Dispatch ≤48h:
Filling screws
Dust filters
Sewing heads
Performance Optimization:
Material flow testing
Bag seal validation
APPLICABLE BARREL TYPE
COMPANY PROFILE
Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.
We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.
Company Certificate
Our office and workshop
Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance
This is a partial
service for us
in China.
Over 30 years of experience, every time we produce in
Shanghai, our friends can visit our factory at any time.
Brand components
We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.
Our service
Complete solution provided
Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.
Duty after death
Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.
Technology group
We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.
Successful collaboration
Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.
packge and delivery
Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose
