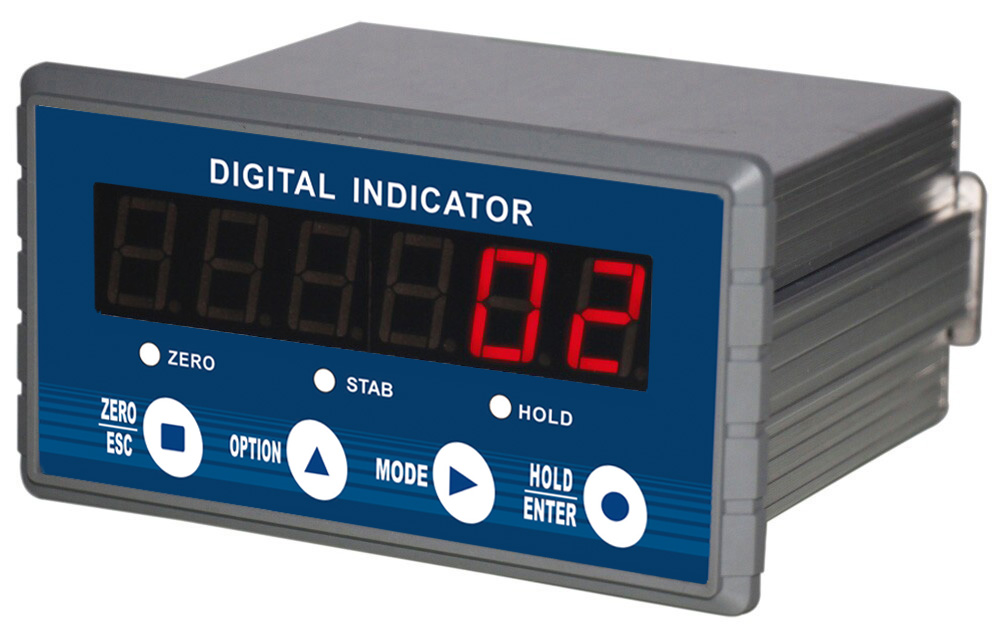

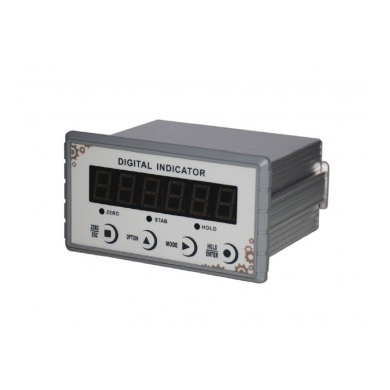

M02 Weighing indicator with RS232/485
The panel mounted weighing indicator offer exceptional reliability, advanced filtering, and tested ability to perform under heavy interference and the most severe industrial environments. With over 100,000 products being in use and negligible repair rate, they are customized for dynamic weighing systems with the highest demand for reliability, response speed and accuracy.
M02 digital indicator, also called weighing terminal, weighing transmitter.
INIDICATOR POWER | |
Power Supply | 18-36V DC(optional) |
Power Consume | About 10W |
A/D CONVERTER | |
Type | 24-bit Delta-Sigma |
Analogue input range | 0mV to 15mV |
Linearity | <0.01%FS |
Gain Drifting | 10PPM/℃ |
Minimum Sensitivity | 0.1 ? V/d |
Conversion Rate | 15/30/60/120/240/480/s |
Display Accuracy | 1 / 100,000 |
CALIBRATION & WEIGHING FUNCTIONS | |
Calibration | By test weight or by electronic calibration |
Digital Filter | Two Layer FIR filter with 9 selectable levels |
Weighing Functions | Zero, zero tracking, auto-zero at power |
DISPLAY & KEYBOARD | |
Display | 6 digits, 7 segments, LED red |
Keyboard | 4 buttons with beeping feedback |
Status Indicators | (3 LED green) Zero, Stable, Data |
ENVIORNMENTAL | |
Operating Temperature | -10℃ to 40℃ |
Storage Temperature | -25℃ to 70℃ |
Relative Humidity | 90% R.H without dew |
IP Level | IP 65 |
LOAD CELLS | |
Excitation | 5V |
Load Cells | Drives 8pcs load cells 350Ω |
MECHANICAL DATA | |
Dimensions & Weight | 110×89×60 mm (L×W×H) weighs approx.350g |
Standard Mounting | Panel Mount |
Certification | CE |
Enclosure | ABS front panel, cast aluminum body. |
INSTRUMENT WITH DATA TRANSMISSION | |
Serial Interface | R232 / RS485 + I/O |
INSTRUMENT WITH ANALOGUE OUTPUT | |
Type | Isolated 12-bit D/A converter |
Accuracy | 0.04% |
Optional Voltage Output | 0-5V / 0-10V |
Optional Current Output | 4-20mA / 0-20mA / 0-24mA |
