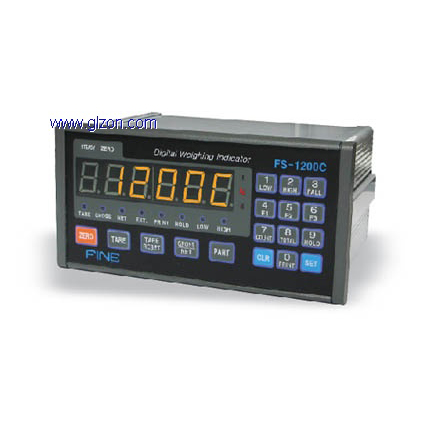

Fine FS-1200C weighing controllerHigh & Low 2 Step Control WeighingFS-1200C Weighing Indicator is particularly suitable for weight and measures approved applications such as a Feed Weighing,
Fine FS-1200C weighing controller
High & Low 2 Step Control Weighing
| Input Sensitivity | 0.2 μ V/D |
|---|---|
| Zero Adjust Range | -0.6mV ~ +42.0 mV |
| Load cell Supply Voltage | DC 10V( ± 5V) |
| Max. loadcell Input Voltage | 32 mV |
| Temperature Coefficient | ± 20 ppm / °C |
| Input Noise | ± 0.5 μv P.P |
| Input Impedance | More than 10 ΜΩ |
| A/D Conversion | 400,000 Count |
| Non-Linearty Range | 0.005% of Full Scale |
| Conversion Method | Dual - Slop ( Appr. 50times / Sec) |
| Max. Display | “ 999950” |
|---|---|
| A Digit | x1, x2, x5, x10, x20, x50 |
| Display | 7 Segment, 6Digit Red High Luminance LED Display |
| Character Size | 20m Height |
| Keypad | Numeral Keypad and Function Key(0~9),CLR,SET,PRINT |
| Data Back-Up | Permanent Record |
| Time Chip Power | Iridium Battery CR 2032 |
| Power Voltage | 1Phase, 110 / 220VAC(± 10%), 50/60Hz, 10VA |
|---|---|
| Indicator Weight | Net 3.3Kg, Packing 3.8Kg |
| Temperature | -10 °C ~ 40°C |
| Moisture | Less than 85% RH |
| Dimension | 198mm x 98mm x 135mm |
| Basic Standard 1 | Serial Interface : RS-232C |
|---|---|
| Basic Standard 2 | Current Loop |
| Option 3 | Parallel Interface : BCD OUT Weight( Positive, Negative Logic) |
| Option 4 | Serial Interface : RS-422, RS-485 |
| Option 5 | Analog Output : 0~10V or 10V ~ 0V |
| Option 6 | Analog Output : 4~20 mA or 20 ~ 4 mA |
| Option 7 | Printer Interface : Centronics Parallel |
