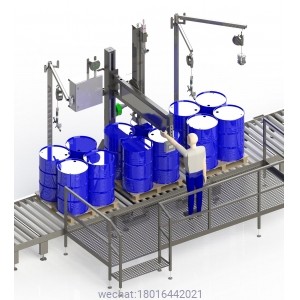

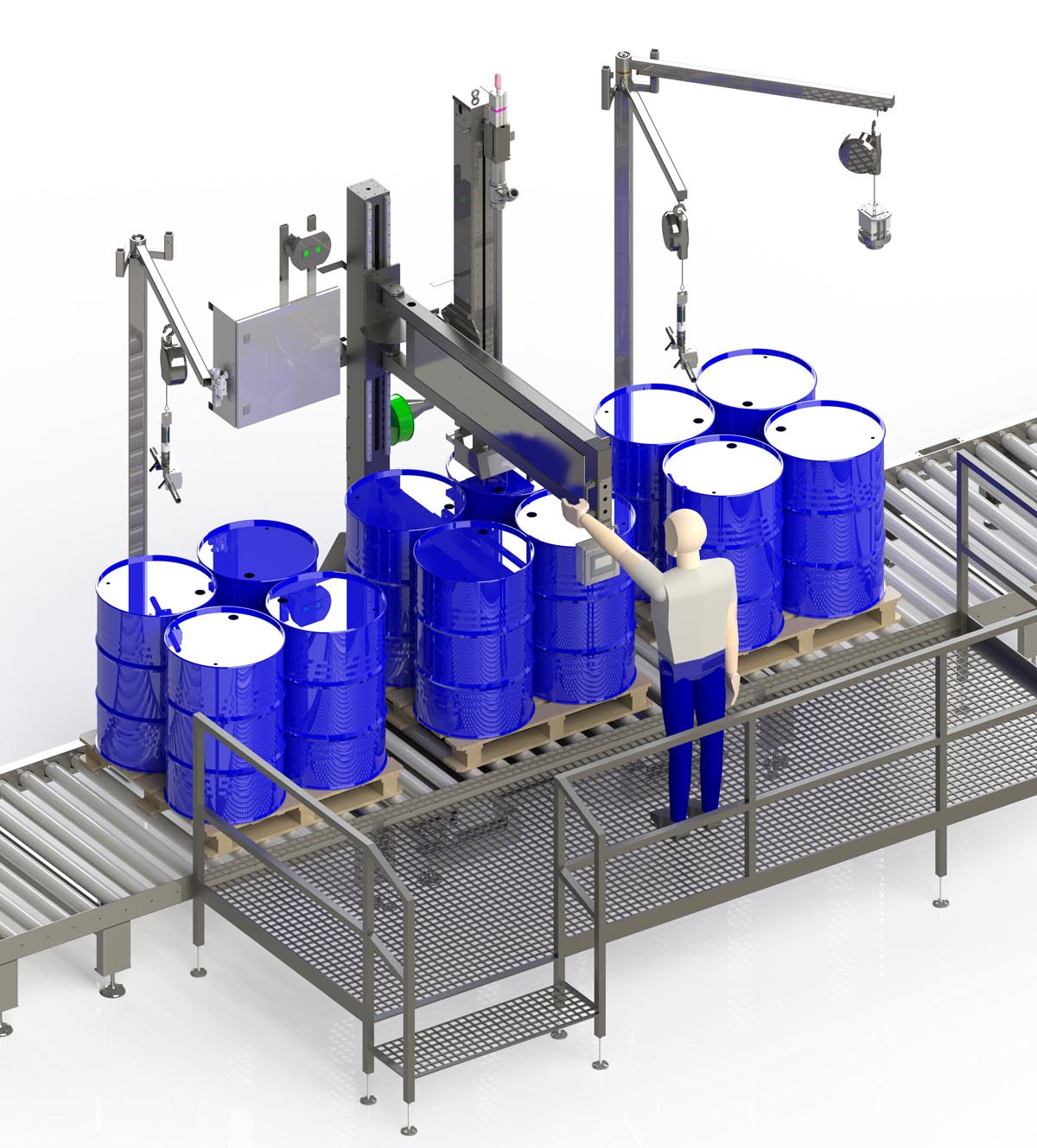

Drum & IBC filling machine conveyor lineThe Drum and IBC filling machine is a versatile and semiautomatic weight filling equipment. It is suitable for filling liquid and viscous products directly
End-to-End Integration ? 99.5% Uptime ? ATEX/ISO Certified
Turnkey Solution for 200L Drums & 1,000L IBC Totes
Shanghai Guangzhi Automation’s GZ-StreamLine Series revolutionizes bulk liquid handling with a synchronized conveyorized filling system that automates loading, filling, capping, and palletizing of drums and IBCs. Engineered for hazardous environments (Zone 1/21), this solution slashes labor costs by 80%, boosts throughput by 300%, and achieves ±0.15% filling accuracy – all while ensuring zero spills or ignition risks.
[https://example.com/diagram-placeholder]
(Visual: Integrated workflow from empty container intake to filled pallet output)
Container Intake
Auto-Detection: Laser scanners identify drum/IBC type (steel/plastic/composite).
Orientation: Rotary aligner positions barcodes for scanning.
Pre-Fill Station
Grounding Check: Measures resistance (<10 Ω) for flammable liquids.
Nitrogen Purging (Optional): Reduces O? to <5% for pyrophorics.
Precision Filling
Multi-Head Fillers: Gravimetric (drums) + Coriolis flow meters (IBCs).
Vapor Recovery: Sealed system captures >99% VOCs.
Post-Fill Process
Capping/Lidding: Robotic arm installs bungs or IBC caps.
Palletizing: AGV-compatible conveyor to stretch wrapper.
Table: Conveyor Line Performance Metrics
| Component | Specification | Capability |
|---|---|---|
| Throughput | 60 drums/hr or 20 IBCs/hr | Dual-line option: 120 drums/hr |
| Filling Accuracy | ±0.15% (drums), ±0.25% (IBCs) | ISO 17025 calibrated |
| Conveyor Type | Powered roller chain (3,000 kg capacity) | Stainless steel (316L) construction |
| Container Support | 200L drums, 1,000L IBCs (ISO 20" footprint) | Adaptors for 160–220L drums |
| Control System | Siemens PLC + SCADA integration | OPC UA, MQTT, Modbus TCP |
| Power Consumption | 480V/60Hz, 45 kW (peak) | Regenerative braking reduces by 18% |
| Safety Standards | ATEX, IEC 62061 SIL 2, ANSI B11.19 | Emergency stops every 3 meters |
| Dimensions (L×W) | 24 × 5 meters (modular extendable) | Height: 1.2 meters |
? Predictive Maintenance
Vibration sensors on motors/pumps forecast failures 30+ days ahead.
? Digital Twin
Live 3D simulation optimizes line speed and container spacing.
? OEE Dashboard
Real-time tracking of Availability, Performance, Quality metrics.
? Blockchain Batch Tracking
Immutable records for ISO 9001/14001 audits.
ATEX Zone 1: Pressurized control panels (Ex pxb IIC T4)
VOC Capture: Meets EPA Method 21 & EU IED Annex VI
Static Control: Conductive rollers (10? Ω) + ionizing bars
Spill Containment: Integrated drip trays with level sensors
