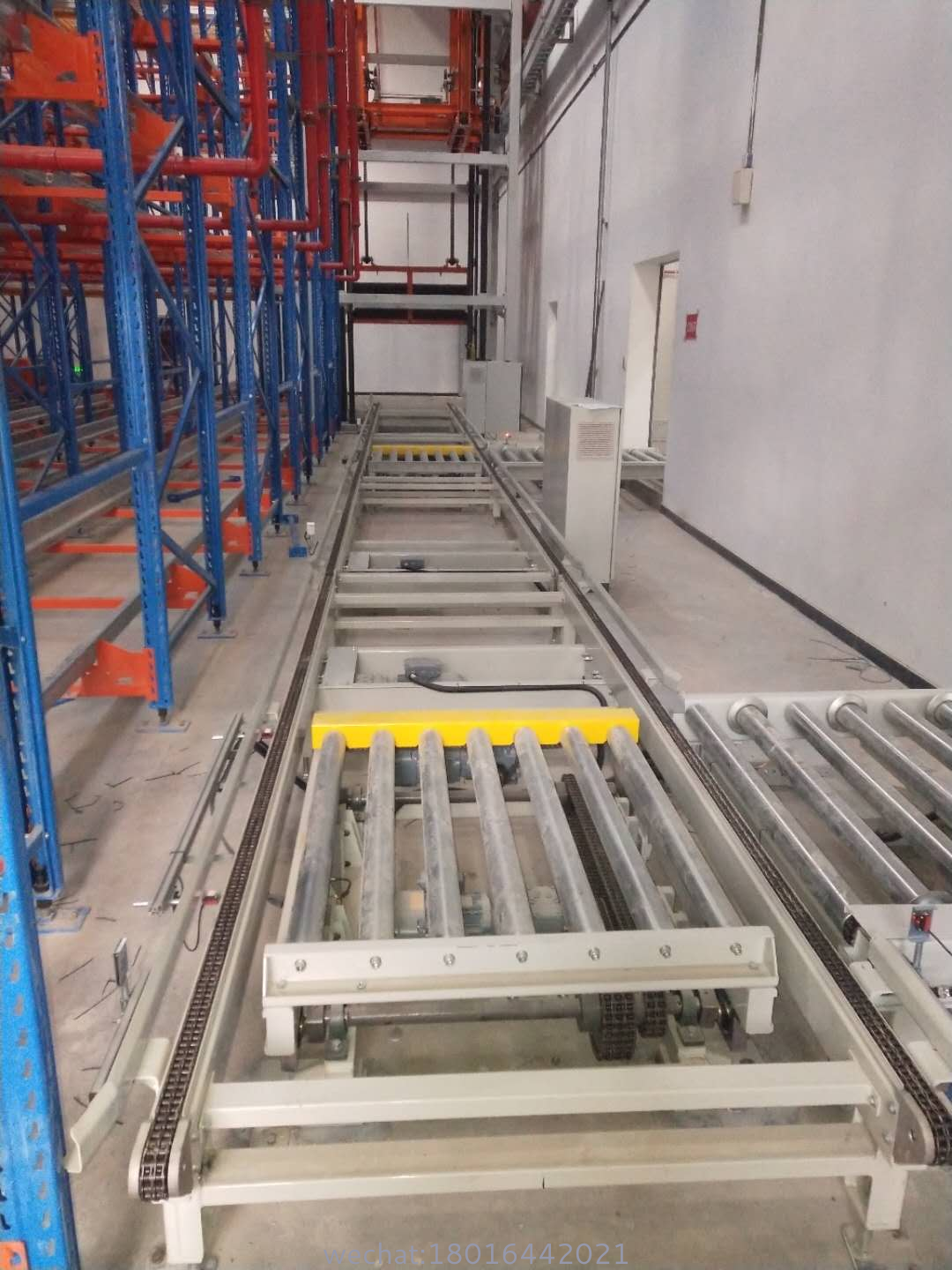

Roller Conveyor

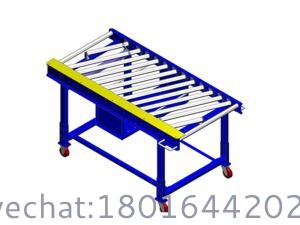

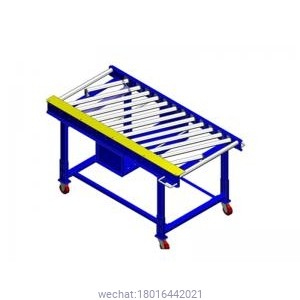

Roller ConveyorThe unpowered roller conveyor relies on the roller to complete the transportation, which is suitable for the transportation of all kinds of boxes, bags, pallets and other pieces of good
- Brand： glzon
- Model： GZM_RC800
1. Performance Specifications
| Parameter | Standard Model | Heavy-Duty Model | Test Standard |
|---|---|---|---|
| Load Capacity | 150 kg/m | 800 kg/m | ISO 5048 |
| Max. Speed | 30 m/min | 25 m/min | EN 619 |
| Roller Diameter | ?50 mm | ?89 mm | DIN 15237 |
| Roller Pitch | 75 mm | 100 mm | ISO 282 |
| Operating Temperature | -20°C to +60°C | -30°C to +80°C | IEC 60068-2 |
2. Structural Design
2.1 Frame Construction
Material: Galvanized steel (S350GD+Z) / Stainless steel (SUS304)
Profile: C-channel cross-section (80×40×3mm)
Surface Treatment: Shot blasting (Sa2.5) + epoxy coating (ISO 12944 C5-M)
2.2 Roller Assembly
Tube: ERW steel tube (δ≥2.5mm) / Stainless steel AISI 304
Bearings: Double-sealed ball bearings (IP67 rated)
Shaft: Cold-rolled steel (HRC≥45)
2.3 Drive System Options
| Drive Type | Power Range | Control Accuracy |
|---|---|---|
| Electric drum motor | 0.37-1.5 kW | ±5% speed |
| Line shaft drive | 1.1-3.0 kW | ±2% speed |
| Motorized roller | 24V DC/400V AC | ±1% speed (VF control) |
3. Technical Parameters
| Component | Specification | Compliance |
|---|---|---|
| Noise Level | ≤68 dB(A) @ 1m distance | ISO 4871 |
| Roller Resistance | ≤0.5 N per kg load | DIN 22301 |
| Minimum Bend Radius | R=600mm (chain-driven models) | FEM 9.511 |
| Electrical Protection | IP54 (standard) / IP66 (option) | IEC 60529 |
4. Specialized Configurations
4.1 Environmental Adaptations
Corrosion Resistance: Full stainless steel construction (AISI 316L for marine/chemical)
Explosive Atmospheres: ATEX Zone 22 compliant (dust ignition protection)
Food/Grade: FDA-compliant rollers with white polyurethane coating
4.2 Functional Modules
| Module | Function | Technical Features |
|---|---|---|
| Accumulation Zone | Zero-pressure conveying | PWM-controlled braking rollers |
| Weighing Section | In-motion weighing | Load cells (±0.5% accuracy) |
| Diverting Station | 90° sorting | Pneumatic arm (0.6 MPa, 0.5s cycle) |
| Lift & Transfer | Multi-level handling | Scissor mechanism (500kg capacity) |
5. Reliability Metrics
MTBF (Motorized Rollers): >30,000 hours (ISO 281)
Roller Life Expectancy:
Standard: 20,000 operating hours
Heavy-duty: 50,000 operating hours (FEM 1.001)
Maintenance Interval: 5,000 hours (grease-free bearings)
6. Global Compliance & Packaging
6.1 Certifications
EU: CE, EMC 2014/30/EU
North America: OSHA 1910.22, UL 507
Asia: GB/T 10595-2017, JIS B8807
6.2 Export Packaging
Frame sections: Wooden crates (IPPC ISPM-15)
Rollers: VCI-coated steel pallets
Electronic components: ESD-protected containers
7. Technical Support
| Region | Service Coverage | Contact |
|---|---|---|
| Americas | On-site commissioning | +1 713 XXX XXXX |
| EMEA | 24hr spare parts delivery | +31 10 XXX XXXX |
| APAC | Technical training programs | +86 21 6187 XXXX |
Documentation Package Includes:
Load calculation report (FEM 1.001 standard)
GA drawing with interface dimensions (PDF/DWG)
CE Declaration of Conformity (2024/XXXX)
Maintenance manual (EN/ES/FR/RU versions)
