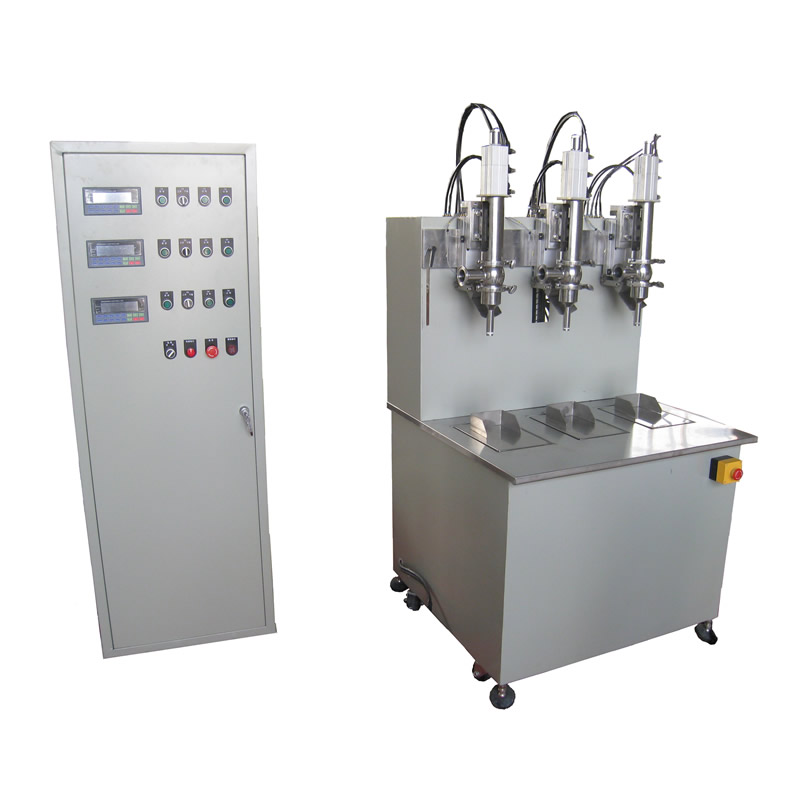

5L standard three gun filling machine
High-speed 5L liquid filler with 3-nozzle simultaneous filling. ±0.3% accuracy, 180 fills/hour. Handles oils/detergents/syrups. CE/FDA compliant. Low maintenance.
- Brand： glzon
- Model： GZM_10L
Product Essence: Triple the Speed, Uncompromised Precision
Shanghai Guangzhi’s Three-Gun Filling System revolutionizes 5L container packaging – delivering ±0.3% volumetric accuracy at 180 fills/hour via synchronized nozzle operation. Engineered for lubricants, cleaning chemicals, edible oils, and syrups (50-5,000 cP), it cuts production costs by 45% while maintaining industrial reliability in demanding environments.
Core Technology Innovations
1. Triplex Synchronized Filling
| Technology | Performance |
|---|---|
| Independent Servo Guns | ±0.5ml/gun repeatability |
| Simultaneous Triggering | Fill time reduction ≥65% vs single-head |
| Auto-Balancing Flow | <2% variance between nozzles |
| Quick-Change Nozzles | Tool-free swap in <15s (?10-40mm) |
2. Industrial Heavy-Duty Design
Durability Features:
Hardox? 450 wear plates on conveyor
IP65-rated electrical cabinets
50,000h MTBF on critical components
Material Compatibility:
Liquid Type Wetted Materials Engine Oils 304 SS + Nitrile seals Acidic Cleaners 316L SS + EPDM seals Food Syrups 316L + FDA UHMW-PE
3. Zero-Waste Efficiency
Drip-Free Retraction:
Spring-loaded nozzle lift + air knife cutoff
Residual fluid ≤0.3ml/container
Overfill Protection:
Load cell feedback (optional)
Mechanical stroke limiter
Technical Specifications
| Parameter | Standard Model | Food-Grade Model | High-Viscosity Model |
|---|---|---|---|
| Filling Accuracy | ±0.3% | ±0.25% | ±0.4% |
| Throughput | 180 fills/hour | 160 fills/hour | 140 fills/hour |
| Viscosity Range | 50-5,000 cP | 50-3,000 cP | 500-50,000 cP |
| Nozzle Spacing | 200-400mm adjustable | Same | Same |
| Power | 380V/50Hz, 3.5kW | 380V/50Hz, 3.2kW | 380V/50Hz, 4.0kW |
| Air Consumption | 150 L/min @ 0.6MPa | 140 L/min @ 0.6MPa | 180 L/min @ 0.6MPa |
| Container Height | 250-600mm | 250-600mm | 300-700mm |
| Material Contact | 304 SS + PTFE | 316L + EPDM | 304 SS + Tungsten carbide |
| Footprint (L×W×H) | 3000×1200×1800mm | 3000×1200×1800mm | 3200×1300×1900mm |
Key Advantages:
60% Faster Cycle Time: vs single-nozzle systems
Redundancy Design: One nozzle failure ≠ line stoppage
Energy Recovery: Regenerative braking captures 30% motion energy
Industry Application Matrix
| Sector | Typical Products | Specialized Feature |
|---|---|---|
| Lubricants | Gear oils, hydraulic fluids | Heated nozzles (80°C) for cold start |
| Janitorial | Floor cleaners, degreasers | Acid-resistant spray shields |
| Food Processing | Cooking oils, corn syrup | USDA-compliant stainless steel |
| Agriculture | Pesticides, fertilizers | Corrosion-resistant coating |
Certifications & Upgrades
Base Compliance:
CE Machinery Directive 2006/42/EC
ISO 9001:2015
FDA 21 CFR 177.2600 (food option)
Advanced Modules:
| Module | Function |
|---|---|
| Auto Height Sensor | Adjusts nozzles for container height |
| Checkweigher Conveyor | Post-fill verification (±15g) |
| CIP System | Clean-in-place for food/pharma |
| ATEX Kit | Zone 22 compliance (dust explosion) |
Operational Economics
Asian Lubricant Blender Case:
Challenge: Single-nozzle filler @ 60 fills/hour with ±1% variance
Solution: Three-gun filler with auto-balancing flow
Results:
? 300% throughput increase
? Giveaway reduced to 0.25%
? ROI: 5 months
Why Three-Gun Design?
? High Output: 180 fills/hour without high-cost automation
? Flexible Layout: Adjustable nozzle spacing (200-400mm)
? Easy Maintenance: Modular gun design with quick-disconnect
? Future-Ready: IoT-ready for OEE monitoring
