GZM is the English acronym for pneumatic valve port packaging equipment. GLZON Group has designed and manufactured this equipment and applied it to the powder packaging workshop 35 years ago. Our stan
| Parameter | Standard Model | High-Speed Model | Test Standard |
|---|---|---|---|
| Bag Capacity | 10-50 kg | 25-100 kg | OIML R61 |
| Filling Accuracy | ±0.2% | ±0.15% | ISO 2378 |
| Max. Speed | 260 bags/h | 200 bags/h | EN 619 |
| Bag Width Range | 300-600 mm | 400-800 mm | ISO 6590-1 |
| Dust Emission | ≤1.8 mg/m3 | ≤1.2 mg/m3 | NIOSH 0600 |

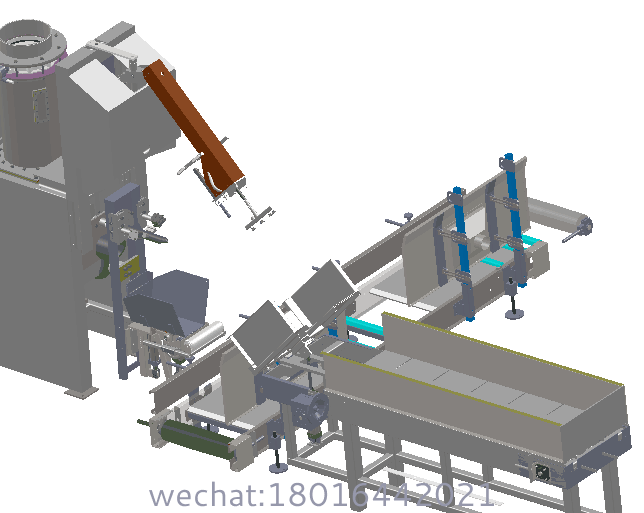

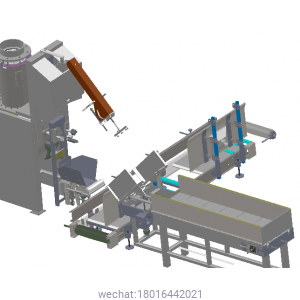

2.1 Robotic Bag Handling
Automatic Bag Feeding: Vacuum cup system (99.7% pick rate)
Valve Alignment: Laser positioning (±0.2 mm)
Sealing System: Inflatable EPDM collar (0.6 MPa)
2.2 Precision Filling System
Dual-Phase Weighing:
Primary: Volumetric pre-fill (90% capacity)
Secondary: Gravimetric fine dosing (±50g accuracy)
Anti-Bridging: Variable-frequency agitator (2.5 Hz)
2.3 Control & Monitoring
PLC: Rockwell ControlLogix 5580
HMI: 12" ruggedized touch panel
IoT Connectivity: OPC UA / MQTT protocols
| Component | Specification | Compliance |
|---|---|---|
| Material contact parts | 316L SS (Ra≤0.4μm) | FDA 21 CFR 177.2600 |
| Main frame | S355JR steel (ISO 12944 C5-M) | |
| Electrical protection | IP66 (NEMA 4X) | IEC 60529 |
| Noise emission | ≤65 dB(A) @ 1m | ISO 4871:2019 |
| Industry | Technical Adaptation | Certification |
|---|---|---|
| Cement | Abrasion-resistant liners (HRC 65) | EN 12407 |
| Food | CIP washdown system (IP69K) | EHEDG Type EL-A |
| Chemicals | ATEX Zone 21 compliance | IECEx T4 |
| Pharma | Isolator interface (ISO 14644) | GMP Annex 1 |
| Metric | GZ-AVB300 | Industry Average |
|---|---|---|
| Labor requirement | 0 operators | 2-3 operators |
| Bag rejection rate | ≤0.25% | 1.5-3% |
| Changeover time | <120 sec | 20-35 min |
| Energy consumption | 0.22 kWh/ton | 0.40-0.55 kWh/ton |
| Region | Standard |
|---|---|
| International | ISO 9001:2015, ISO 45001:2018 |
| Europe | CE, MID 2014/32/EU, ATEX |
| North America | UL 508A, NRTL (cCSAus) |
| Asia-Pacific | GOST-R, CCC, JIS B 8950 |
Factory Acceptance Test Report (ISO 19438)
Pneumatic/Electric Schematics (PDF/DWG)
ATEX/IECEx Certification Dossier
3D Installation Layout (STEP format)
APPLICABLE BARREL TYPE
