GZM PFS-1000T semi-auto pallet filler handles 1000L IBCs/200L drums with ±0.3% accuracy. Features vapor recovery, ATEX safety, and tool-free changeover. Processes 18 units/hour. Reduces spills by 97%.

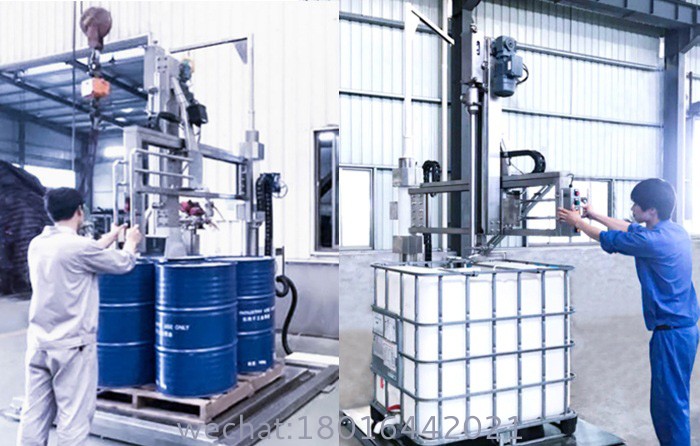

Precision Bulk Filling for Pallet-Mounted IBCs & Drums
The GZM PFS-1000T semi-automatic filling station delivers ±0.3% accuracy for 1000L IBC totes and 200L drums on pallets. Designed for chemicals, oils, and food-grade liquids, this operator-assisted system features ATEX compliance, integrated vapor recovery, and tool-free changeover – processing 12-18 containers/hour while eliminating spills and operator exposure risks.
| Parameter | IBC Mode (1000L) | Drum Mode (200L) |
|---|---|---|
| Accuracy | ±0.3% (Coriolis meter) | ±0.5% (load cell) |
| Flow Rate | 50-250 L/min | 30-120 L/min |
| Viscosity Range | 1-100,000 cP | 1-50,000 cP |
| Container Support | UN-certified IBCs/Drums | Steel/plastic drums |
| Material Contact | 316L SS / PTFE-lined | |
| Power | 380V/50Hz, 5.5 kW | |
| Vapor Recovery | >98% efficiency | |
| Changeover | 8 min (tool-free) |
Operator Control: Manual pallet positioning + foot pedal activation
Auto Safety Systems:
Grounding verification (<10 Ω)
LEL monitoring with auto-shutdown
Emergency nitrogen purge
Smart Filling Modes:
Weight-based (gross/net)
Flow totalizer
Preset volume
