Screw Feed Net Packer is a high accuracy bagging machine for filling powder products like chemicals, lime, pigments, flour in open-mouth bags.This packing machine include powder hopper, discharging ap
High-Speed, Gentle Handling for Granular & Fragile Materials

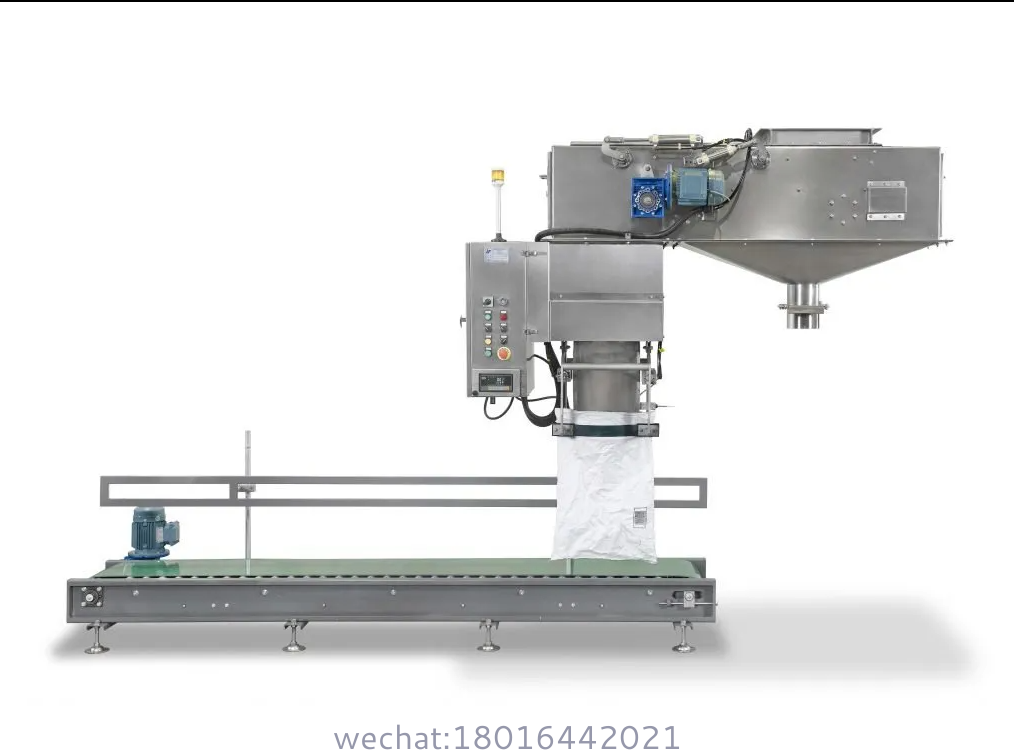

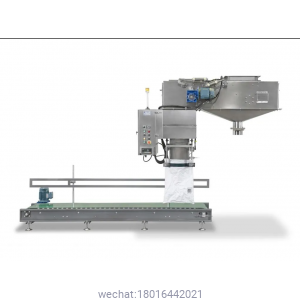

Shanghai Guangzhi Automation’s GZ-GB/B Series combines precision gross-weight bagging with advanced belt feeding technology, achieving ±0.5% filling accuracy at 30–40 bags/hour for grains, pellets, flakes, and fragile products. Engineered with heavy-duty construction and PLC-controlled dosing, this system reduces labor costs by 80% while minimizing product degradation – ideal for agriculture, pet food, and chemical industries.
Gentle Belt Feeding System
Variable-speed conveyor belt (0.1–3 m/min) with cleated design prevents rollback
Product Preservation: Low-impact handling for fragile items (e.g., cereal flakes, polymer pellets)
Intelligent Gross Weighing
500kg load cells with ±0.5% accuracy + automatic tare compensation
Overfill prevention via real-time feedback control
Dust Containment
Telescopic filling spout with inflatable collar (IP65 sealing)
Integrated dust vent port (connects to extraction systems)
Semi-Automatic Operation
Operator positions bag → machine auto-fills/seals
Foot pedal control for hands-free cycling
Industrial-Grade Build
4mm carbon steel frame (1,200 kg capacity)
Abrasion-resistant belt (PU/PVC options)
| Parameter | Standard Model | High-Capacity Option |
|---|---|---|
| Bag Capacity | 10–50 kg | 25–100 kg |
| Throughput | 30 bags/hour | 40 bags/hour |
| Accuracy | ±0.5% (gross weight) | ±0.3% |
| Belt Width | 300–600 mm | 400–800 mm |
| Material Compatibility | Grains, pellets, flakes, granules (0.5–50mm) | |
| Power Supply | 380V/50Hz, 3.2 kW + 0.6 MPa air | |
| Bag Types | Woven PP, Paper, Jumbo Bags | |
| Machine Dimensions | 2,500 × 1,500 × 3,000 mm | |
| Compliance | CE, ATEX Zone 22, OIML R61 |
| Industry | Typical Materials | Special Features |
|---|---|---|
| Agriculture | Animal feed, grains | Anti-microbial belt (USDA) |
| Chemicals | Plastic pellets, fertilizers | ATEX explosion-proofing |
| Food Processing | Cereals, sugar, snacks | Food-grade stainless steel |
| Recycling | Plastic flakes, rubber crumb | Heavy-duty impact beds |
Bag Placement: Operator hangs open-mouth bag on spout
Clamping: Pneumatic seal engages (dust-tight)
Belt Feeding: Material gently conveyed into bag
Weighing: Real-time load cell monitoring
Release: Auto drop onto conveyor after target weight
| Metric | Belt Feeder | Screw Feeder |
|---|---|---|
| Product Damage | <0.1% breakage | 2–5% breakage |
| Throughput | 40 bags/hour | 25 bags/hour |
| Energy Use | 30% lower | Higher power consumption |
| Maintenance | Belt replacement in 15 mins | Screw dismantling required |
| Material Versatility | Handles flakes/fibers | Limited to free-flowing |
Belt Upgrades:
Chevron belts for steep inclines
Magnetic belts for ferrous contamination
Automation Packages:
Robotic bag placers
|Checkweigher + reject system
Hazardous Environments:
ATEX Zone 21/22 compliance
Static-dissipative belts
Sanitary Configurations:
CIP-ready with polished surfaces
APPLICABLE BARREL TYPE
