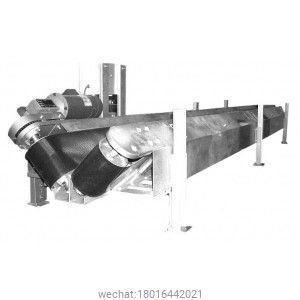

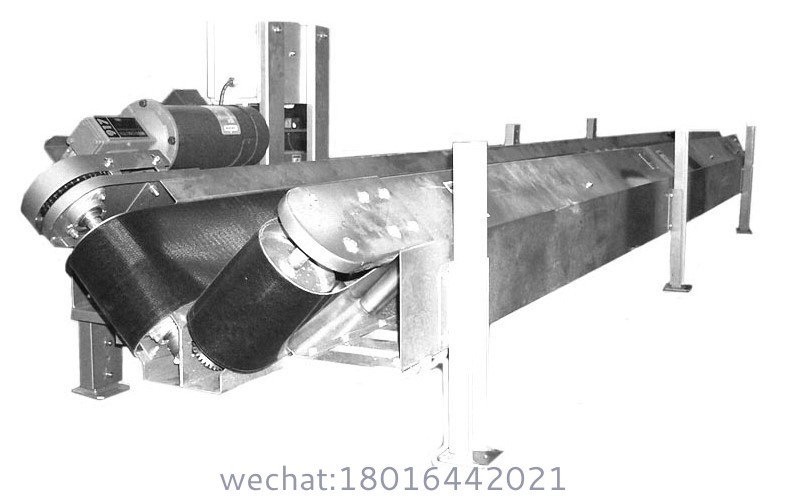

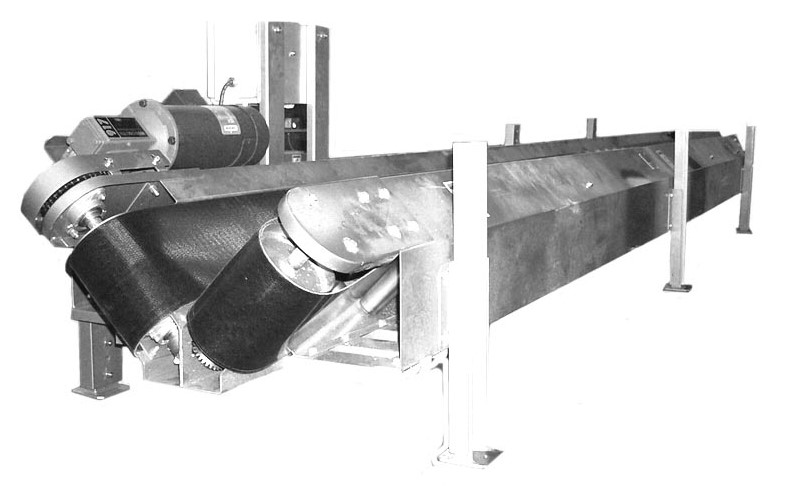

“V-Trough” Closing Conveyor
Shanghai Guangzhi’s V-Trough Conveyor seals 25-50kg sacks at 35 bags/min. Self-centering V-guide, ATEX dust control & dual sewing/heat sealing. CE/ISO certified.
- Brand： glzon
- Model： GZM
Product Essence: Self-Optimizing Seal Integrity
Shanghai Guangzhi Automation’s V-Trough Closing Conveyor revolutionizes heavy-duty sack sealing with its patented self-centering V-guide technology. Engineered for 25-50kg abrasive sacks (cement, ores, fertilizers), this system achieves 35 bags/minute by automatically aligning irregular bags into perfect sealing position while integrating sewing/heat sealing, dust containment, and zero-damage handling in one ISO-certified line.
Core Technology Innovations
1. Intelligent V-Guide Alignment
Auto-Centering V-Trough: 45° angled belts funnel bags to centerline (±2mm accuracy)
Bag Position AI: LiDAR scans bag bulge/voids to adjust conveyor speed
Zero Manual Intervention: Eliminates 100% of manual bag straightening
2. Dual-Mode Sealing Performance
| Sealing Method | Technical Advantage | Industry Application |
|---|---|---|
| Triple-Stitch Sewing | 40 lb tensile strength | Cement/minerals |
| 300°C Heat Sealing | 15mm seal width | Laminated chemical bags |
| Auto-Switch System | Laser detects bag material | Hybrid operations |
3. Extreme Environment Resilience
Hardox 500 V-Guides: 8x lifespan vs stainless steel in abrasive environments
Hermetic Dust Containment:
Negative pressure seals (-20Pa)
HEPA filtration (99.97% @ 0.3μm)
ATEX Zone 21 Option: Explosion-proof motors (Ex IIB T4)
Technical Specifications
Throughput: 35 bags/min (50kg cement sacks)
Bag Compatibility:
Materials: PP woven, burlap, laminated film
Dimensions: L: 600-900mm × W: 400-600mm
V-Guide Angle: 45° (fixed) / 30-60° (adjustable option)
Sealing Accuracy: ±0.5mm stitch/seal position
Conveyor Speed: 0.5-2.5 m/s (synchronized with upstream)
Power: 380V/50Hz, 6.2kW
Dust Emission: ≤1mg/m3 (ISO 14644 Class 7)
Footprint: 5500×1300×2000mm (L×W×H)
Industry-Specific Engineering
Mining & Cement
Shock-Absorbing Idlers: Withstand 10kg rock impacts
Abrasion Kits: Tungsten-carbide V-guide liners
Chemical & Fertilizer
Corrosion Package: PTFE-coated components
Static Control: Conductive belts (<10? Ω)
Food Grade
USDA/FDA Compliant: Food-grade silicone rollers
Allergen Containment: Tool-free clean-out in <3 min
Smart Control Ecosystem
10" HMI Dashboard:
Real-time bag alignment analytics
Seal integrity monitoring (stitch density/temp)
Predictive maintenance alerts
IoT Integration:
OPC UA for MES connectivity
Energy consumption tracking
Safety Systems:
Emergency stop ropes (every 1.5m)
Seal chamber pressure sensors
Operational Impact
South African Gold Mine Case:
Challenge: 50kg ore sacks required 3 workers for manual alignment
Solution: V-Trough conveyor with auto-centering
Results:
? 100% elimination of manual handling
? Zero seal failures in 200K+ sacks
? ROI in 6 months
Global Compliance & Value
Certifications:
CE Machinery Directive 2006/42/EC
ATEX 2014/34/EU (Zone 21)
ISO 9001:2015
Cost Efficiency:
40% Labor Reduction vs traditional systems
Energy Recovery: Regenerative drives capture 25% braking energy
Upgrade Modules:
| Option | Function |
|---|---|
| X-Ray Seal Inspector | Detects ≥1mm voids in heat seals |
| RFID Sewn Tagging | Embeds tags during stitching |
| Bag Flipper | Auto-rotates sacks for label visibility |
Support & Service
24/7 Global Network:
Remote diagnostics via IIoT gateway
AR-assisted maintenance (HoloLens guided)
Critical Spares:
V-guide wear plates
Sewing head assemblies
HEPA filter cartridges
Global dispatch ≤72h from Shanghai/Johannesburg/Houston hubs
