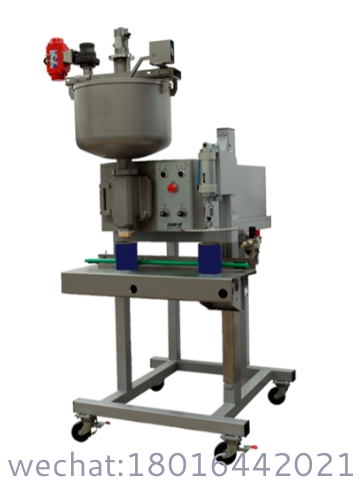

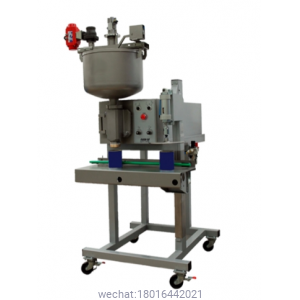

Liquid filling machine
Industrial liquid filler with ±0.1% accuracy for 10ml-1000L containers. Handles viscous/pulsed/foamy liquids. 500CPH max. CE/FDA/ATEX compliant. CIP/SIP ready.
- Brand： glzon
- Model： GZM
Product Essence: Universal Precision for Every Fluid
Shanghai Guangzhi Automation’s Liquid Filling Series delivers ±0.1% accuracy across 10ml vials to 1000L IBCs – mastering water-thin solvents to 50,000 cP pastes. Featuring modular filling technologies (piston/peristaltic/gravity), AI-driven viscosity compensation, and GMP/ATEX-ready construction, it achieves 500+ fills/hour while eliminating cross-contamination, foam, and giveaway in food, pharma, and chemical operations.
Core Technology Innovations
1. Adaptive Filling Architecture
| Technology | Fluid Type | Accuracy | Speed |
|---|---|---|---|
| Servo Piston | Oils/Syrups (50-20k cP) | ±0.1% | 300CPH |
| Peristaltic Pump | Shear-sensitive (mAbs) | ±0.2% | 200CPH |
| Time-Pressure | Low-viscosity (<100 cP) | ±0.5% | 500CPH |
| Net Weight | Foamy/Aerated | ±0.05% | 150CPH |
2. Zero-Contamination Design
Material Options:
Industry Wetted Materials Pharmaceuticals 316L EP + USP Class VI Chemicals Hastelloy C276/PTFE Food & Beverage 316L + USDA UHMW-PE Sanitary Engineering:
EHEDG-compliant surfaces (Ra≤0.8μm)
Self-draining slopes >3°
3. Smart Fluid Management
圖片代碼graph TB A[Viscosity Sensor] --> B(AI Flow Optimization) B --> C[Real-Time Density Compensation]C --> D[Auto-Drip Cutoff]Viscosity SensorAI Flow OptimizationReal-Time Density CompensationAuto-Drip Cutoff
Key Features:
Foam suppression: Vacuum-assisted filling
Pulsed filling for carbonated drinks
Nitrogen blanketing (O?<0.1%)
Technical Specifications
| Parameter | Standard Model | Pharma Model | ATEX Model |
|---|---|---|---|
| Capacity Range | 10ml-1000L | 1ml-20L | 1L-1000L |
| Accuracy | ±0.2% | ±0.1% | ±0.3% |
| Max Speed | 500 fills/hour | 300 fills/hour | 200 fills/hour |
| Viscosity Range | 1-50,000 cP | 1-5,000 cP | 5-100,000 cP |
| Power | 380V/50Hz, 2.5kW | 220V/50Hz, 1.8kW | 24VDC Ex ia |
| Air Consumption | 100 L/min @ 0.6MPa | 80 L/min @ 0.6MPa | 120 L/min @ 0.6MPa |
| Cleanability | Manual CIP | SIP @ 121°C/30min | Solvent CIP |
| Footprint (L×W×H) | 1800×900×1800mm | 2000×1000×2000mm | 2200×1200×2200mm |
Industry-Optimized Solutions
Pharmaceuticals
Isolator compatibility (ISO Class 5)
21 CFR Part 11 data integrity
Single-use fluid path option
Food & Beverage
IP69K washdown rating
Carbonation retention control
USDA-compliant materials
Chemicals & Solvents
ATEX Zone 1 certification
Vapor recovery hood (≥99% capture)
Static dissipation (<10? Ω)
Cosmetics
Anti-foam pulsed filling
Perfume alcohol resistance
Smart Control Ecosystem
10" HMI with Fluid Intelligence
Real-Time Analytics:
OEE dashboard (uptime/speed/accuracy)
Viscosity-temperature mapping
Reject cause Pareto analysis
Predictive Maintenance:
Seal wear forecasting
Pump performance degradation
Industry 4.0 Integration
OPC UA/Modbus TCP connectivity
Blockchain batch traceability
Digital twin for virtual FAT
Operational Impact
Global Beverage Company Case:
Reduced giveaway from 1.5% to 0.2%
Increased line speed by 40%
ROI in 7 months via waste reduction
Certifications & Upgrades
Global Compliance:
FDA 21 CFR 177.2600
CE EN 60204-1
ATEX 2014/34/EU
ISO 15378 (Pharma)
Advanced Modules:
| Module | Function |
|---|---|
| Inline Checkweigher | ±0.1g real-time feedback |
| Vision Inspection | Fill level/particulate detection |
| Robotic Handling | Auto container loading/unloading |
| AR Calibration | HoloLens-guided volume setup |
Support & Service
24/7 Global Response:
Remote diagnostics via IIoT gateway
Critical Spares Dispatch ≤48h:
Filling nozzles
Pumps & seals
Sensors & valves
Performance Validation:
Gravimetric accuracy certification
Material compatibility testing
