Toothpaste, hand cream, face cream, BB cream, juice, shampoo, all kinds cosmetics, medical caring products and other similar products.1.Automatic tube heating sealing and cutting2.Automatic tube cutti

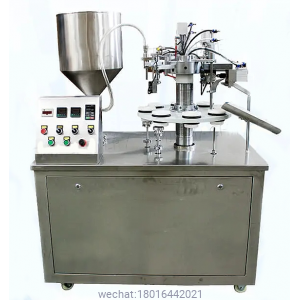

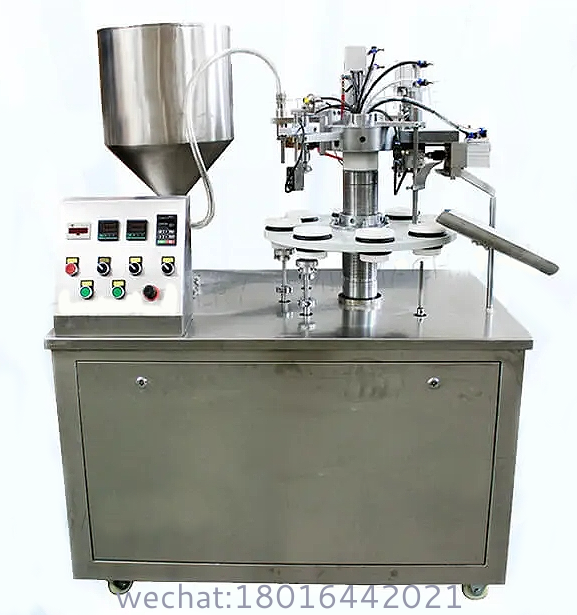

Plastic Laminated Soft Tube Filling & Sealing System
Pharma-Grade ? ±0.5% Accuracy ? 200 Tubes/Min ? cGMP/ISO 15378 Certified
| Parameter | FF-5100 (Standard) | FF-5200P (Pharma Grade) | FF-5300H (High-Visc) |
|---|---|---|---|
| Tube Compatibility | Aluminum Laminate ? Plastic Laminate ? Co-extruded | Same + Barrier Tubes | Same + Metallized Tubes |
| Tube Sizes | 5-150ml (±0.5%) | 5-150ml (±0.3%) | 15-200ml (±0.4%) |
| Throughput | 200 tubes/min | 180 tubes/min | 160 tubes/min |
| Accuracy | ±0.5% gravimetric | ±0.3% | ±0.4% |
| Viscosity Range | 1,000-500,000 cP | 500-300,000 cP | 50,000-2,000,000 cP |
| Filling Technology | Servo Piston Pump | Peristaltic Pump (FDA) | Twin-Screw Auger |
| Sealing Method | High-Frequency Induction | Same + Laser Sealing | Ultrasonic Sealing |
| Material Contact | 316L EP (Ra<0.4μm) | 316L EP (Ra<0.2μm) | Ceramic-Coated Path |
| O? Barrier Performance | <0.01 cc/pkg/day (23°C/50%RH) | <0.005 cc/pkg/day | <0.02 cc/pkg/day |
| Changeover Time | <3 min (Tool-Free) | <4 min | <3.5 min |
| Vision Inspection | Fill Height ±0.5mm ? Seal Integrity ? Print Registration | Same + Particulate Detection | Same + Metal Contaminant Scan |
| Power | 380V/50Hz, 7.5kW | 380V/50Hz, 6.8kW | 380V/50Hz, 9.2kW |
| Cleanability | CIP/SIP Ready (20 min) | Validated SIP (121°C/30min) | CIP 15-min Cycle |
| Certifications | CE, ISO 9001 | FDA cGMP/ISO 15378 | EHEDG EL Class I |
Seal Integrity Metrics:
| Test Method | Performance | Standard |
|---|---|---|
| Dye Penetration | 0% Failure (ISO 11607) | <0.1% Allowed |
| Burst Pressure | >450kPa (ASTM F1140) | >300kPa Required |
| O? Transmission | <0.005 cc/pkg/day | Pharma Grade A |
| Technology | Function | Residual |
|---|---|---|
| Needle-Free Filling | Laminar Flow Path | <0.1% |
| Vacuum Assisted Retraction | -0.8bar Suction | <0.05ml |
| Anti-Stringing | Pulsed Air-Knife | Zero Strings |
Pharmaceuticals
| Feature | Certification |
|---|---|
| Aseptic Filling | ISO Class 5 Environment |
| Batch Traceability | 21 CFR Part 11 Compliance |
| Extractables/Leachables | USP <661> Compliance |
Cosmetics & Toothpaste
Print Registration:
| Parameter | Precision |
|---|---|
| Cap/Seam Alignment | ±0.3mm |
| Color Registration | ΔE<0.4 (CIE Lab) |
Fragrance Protection:
Industrial Adhesives
| Component | Function |
|---|---|
| Abrasion Resistance | Tungsten Carbide Nozzle (2,200 Hv) |
| String Prevention | Laser Cutoff + Vacuum Suction |
| Settling Control | In-line Dynamic Mixer |
10" HMI with TubeOS?
Industry 4.0 Features:
Predictive Quality Control:
| Defect Type | Detection Rate |
|---|---|
| Seal Voids | 99.98% |
| Fill Volume Error | 99.95% |
| Print Misalignment | 99.9% |
OEE Dashboard:
| Metric | Real-Time Tracking |
|---|---|
| Uptime | 99.6% |
| Reject Rate | <0.05% |
? FDA 21 CFR 210/211 (FF-5200P) ? ISO 15378 Primary Packaging ? CE EN ISO 13485 ? EHEDG EL Class I ? GAMP 5 Validation
1. Tube Feeding → 2. Print Registration → 3. N? Purging (O?<0.3%) → 4. Needle-Free Filling (±0.5%) → 5. Vacuum Retraction → 6. High-Frequency Sealing (20kHz) → 7. Cooling & Compression → 8. 100% Vision Inspection → 9. Reject Sorting
Cycle Time: 0.3 seconds/tube
GSK Pharma Report:
*"After 12 months using FF-5200P for steroid cream:
Output: 120 → 180 tubes/min (+50%)
O? Ingress: 0.08 → <0.005 cc/pkg/day
Media Fill Test: 0 CFU/10,000 tubes
ROI: 9 months"*
Aseptic Assurance:
? Barrier Protection: - ISO Class 5 Laminar Flow Hood (ISO 14644) - VHP Decontamination Ports - RTP Container Transfer ? Seal Integrity: | **Test** | **Performance** | |------------------------|------------------------| | Bubble Emission | 0 Bubbles @ -80kPa| | Dye Penetration | 0% Failure| | Tensile Strength| >15N/mm Seal Integrity | ? Material Science: - 316L Electropolished (Ra<0.2μm ASME BPE) - USP Class VI Silicone Seals
APPLICABLE BARREL TYPE
