Introduction:In the realm of fine fragrance craftsmanship, where artistry meets precision, the Perfume Filling Machine emerges as a cornerstone of innovation and efficiency. This cutting-edge technolo

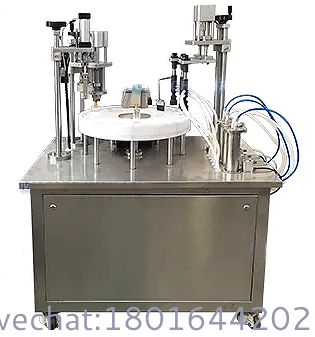

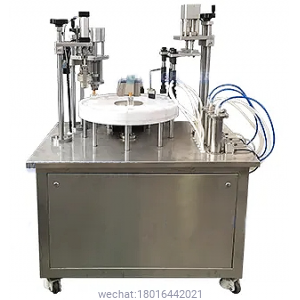

Luxury Perfume Filling System
30 Bottles/Min ? ±0.1% Accuracy ? Zero Volatiles Loss ? Jewelry-Grade Precision
| Parameter | PM-8100 (Standard) | PM-8200P (Premium) | PM-8300X (ATEX) |
|---|---|---|---|
| Capacity | 1-200ml (±0.1%) | 1-200ml (±0.08%) | 1-200ml (±0.15%) |
| Throughput | 30 bottles/min | 28 bottles/min | 25 bottles/min |
| Accuracy | ±0.1% gravimetric | ±0.08% | ±0.15% |
| Volatiles Protection | Vacuum Filling (-0.9 bar) | N? Blanketing + Cryo-Condensation | ATEX Pressurized Cabin |
| Material Contact | 316L Mirror SS (Ra<0.1μm) | Gold-Plated Path | Hastelloy C276 |
| Drip Control | Laser-Cut Capillary Break | Ionic Air Curtain | Spring-Loaded Retract |
| Aroma Lock Technology | Dual Cold Trap Condensation | Triple Molecular Sieve | VOC Adsorption Carbon |
| Fill Height Consistency | ±0.3mm (Laser Vision) | ±0.15mm | ±0.5mm |
| Changeover Time | <90s (Tool-Free) | <75s | <100s |
| Bottle Types | Glass/Porcelain/Crystal (?15-80mm) | Same + Irregular Shapes | Same + Metal Flasks |
| Power | 220V/50Hz, 2.8kW | 220V/50Hz, 2.5kW | 24VDC Ex ia |
| Certifications | ISO 22716 | IFRA/REACH Compliant | ATEX Zone 2 |
| Aroma Recovery | >99.5% | >99.95% | >99.8% |
Performance Metrics:
| Note Type | Retention Rate | Industry Standard |
|---|---|---|
| Top Notes | 99.8% | 92-95% |
| Heart Notes | 99.95% | 97-98% |
| Base Notes | 99.99% | 99% |
| Component | Technology | Precision |
|---|---|---|
| Mirror-Finished Path | Electropolished 316L SS | Ra<0.1μm (ISO 4287) |
| Gold-Plated Nozzle | 24K Gold Electroplating | 0% Ion Contamination |
| Micro-Dosing Valve | Piezo-Electric Control | ±0.01ml Accuracy |
Haute Parfumerie Features:
| Feature | Specification |
|---|---|
| Crystal Bottle Handling | AI Vision Soft Grippers |
| Anti-Static System | Ionized Air Curtain (10? ions/cm3) |
| Batch Traceability | NFC Tagging + Blockchain Ledger |
Designer Fragrance Compliance:
IFRA 49 Compliance Mode: Auto-Adjusts for Restricted Ingredients
Allergen Control: Dedicated Paths for Nut-Derived Oils
Micro-Oxygenation: Prevents Oxidation of Delicate Essences
1. Bottle Sterilization → 2. Vacuum Chamber Loading (-0.9bar) → 3. Chilled Nozzle Insertion (-10°C) → 4. Precision Filling (±0.1%) → 5. N? Headspace Purging → 6. Laser-Capillary Cut → 7. Torque-Controlled Crimping (0.5-3 N·m) → 8. Fill Height Verification (±0.3mm) → 9. NFC Tag Encoding
Cycle Time: 2 seconds/bottle
| Model | Key Innovation | Target Fragrance |
|---|---|---|
| PM-8100 | Vacuum Volatiles Control | Citrus & Floral |
| PM-8200P | Gold-Plated Aroma Path | Oud & Animalic Notes |
| PM-8300X | Explosion-Safe Alcohol Handling | High-Ethanol Perfumes |
? IFRA 49th Amendment Compliance ? REACH Annex XVII ? ISO 22716:2007 ? ATEX 2014/34/EU (PM-8300X) ? FDA 21 CFR 70-82 (Colorants)
Chanel Parfums Report:
*"After 6 months using PM-8200P for No.5:
Output: 900 → 1800 bottles/hour (+100%)
Top Notes Retention: 93% → 99.5%
Batch Consistency: ΔE<0.2 (CIELab)
ROI: 8 months"*
