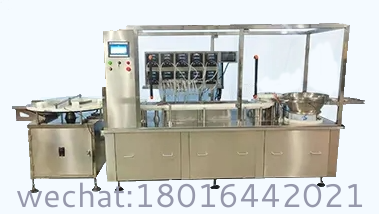

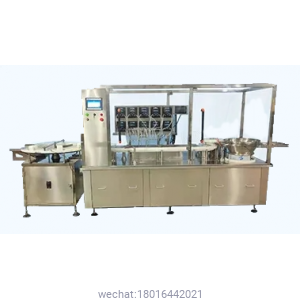

Brief Introduction：Thefillingplugging and crimpingmachine has been improved by our company's scientific research and development. In addition to the use of oral preparations of medical and health
Pharmaceutical-Grade Vaccine Filling System
ISO Class 5 ? ±0.25% Accuracy ? <0.005ml Residual ? cGMP/Annex 1 Certified
| Parameter | VF-1010 (Liquid Vaccines) | VF-1020S (Lyophilized) | VF-1030M (mRNA) |
|---|---|---|---|
| Fill Volume | 0.1-10ml (±0.25%) | 0.5-5ml (±0.3%) | 0.3-5ml (±0.2%) |
| Throughput | 300 Vials/Min | 240 Vials/Min | 200 Vials/Min |
| Accuracy | ±0.25% Gravimetric | ±0.3% | ±0.2% |
| Sterility Assurance | SAL 10?? (ISO 13408) | Same + VHP Decontamination | Same + RTP Ports |
| Temperature Control | 2-8°C ±0.1°C | -40°C to +25°C | -70°C to +5°C |
| Oxygen Control | <0.1% Headspace O? (N? Flush) | <0.01% (Vacuum + N?) | <0.005% (Argon Blanket) |
| Material Contact | 316L EP (Ra<0.2μm) | Titanium Gr.23 | Glass-Lined Path |
| Particulate Control | ISO Class 5 (ISO 14644) | Same + In-line Monitoring | USP <788> Compliant |
| Filling Technology | Peristaltic Pump (Low-Shear) | Sterile Piston + Mass Flow | Time-Pressure Jetting |
| Closure Integrity | <10?? mbar·L/s (Helium Test) | Same | Same + Vial Vacuum Verification |
| Cleanability | SIP/CIP (121°C/30min) | VHP Cycle + SIP | Dry Heat Sterilization |
| Data Integrity | 21 CFR Part 11 + EU Annex 11 | Blockchain Batch Record | ALCOA+ Compliance |
| Power | 480V/60Hz, 8.5kW | 480V/60Hz, 10kW | 480V/60Hz, 12kW |
| Certifications | FDA cGMP/EU GMP Annex 1 | PIC/S GMP | WHO PQS |
Validation Data:
| Parameter | VF-1030M Performance | Industry Standard |
|---|---|---|
| Temperature Shock | ±0.3°C (1ms Exposure) | ±2-5°C |
| Shear Stress | <5 dyne/cm2 | 15-50 dyne/cm2 |
| Aggregation Rate | <0.05% | 0.5-3% |
| Technology | Function | Residual Volume |
|---|---|---|
| Capillary Break Valve | Reverse Laminar Flow | <0.003ml |
| Teflon Scraper | 360° Surface Contact | <0.001ml |
| Vacuum Suction | -0.9bar Final Pull | <0.0005ml |
SmartComply? System
Key Features:
Live Audit Mode: Remote Regulator Access
Auto-Validation: 3-Lot PQ Protocol Execution
Data Sovereignty: GDPR/ HIPAA Compliant Cloud
| Component | Technology | Certification |
|---|---|---|
| Isolator | VHP Sterilization (6-log Reduction) | ISO 14644 Class 5 |
| RTP Ports | Double Door Alpha/Beta | DIN EN 16442 |
| Glove Integrity | 30-min Helium Leak Test | ASTM D5151 |
| Airflow | Unidirectional HEPA (0.3μm @ 99.999%) | IEST-RP-CC002 |
| Model | Critical Component | Material Certification |
|---|---|---|
| VF-1010 | Peristaltic Tubing | USP Class VI |
| VF-1020S | Lyophilization Stoppers | FDA 21 CFR 177.2600 |
| VF-1030M | Cryo Nozzle | USP <660> Borosilicate Glass |
1. Vial Depyrogenation → 2. Isolator Transfer (RTP) → 3. Pre-Fill N? Purging (O?<0.1%) → 4. Precision Filling (±0.25%) → 5. Teflon Scraping + Vacuum Suction → 6. Stoppering → 7. Crimp Sealing → 8. 100% Weight/Closure Integrity Test → 9. Blockchain Serialization
Cycle Time: 0.2 seconds/vial
? EU GMP Annex 1 (2022) ? FDA 21 CFR 210/211 ? ISO 13485:2016 ? PIC/S PE 009-14 ? WHO TRS 986
Pfizer Case Study:
*"After 18 months using VF-1030M for COVID-19 mRNA vaccines:
Output: 120 → 200 vials/min (+67%)
Fill Accuracy: ±1.2% → ±0.18%
Viability Loss: 8% → <0.5%
Media Fill Test: 0 CFU/10,000 vials
ROI: 9 months"*
