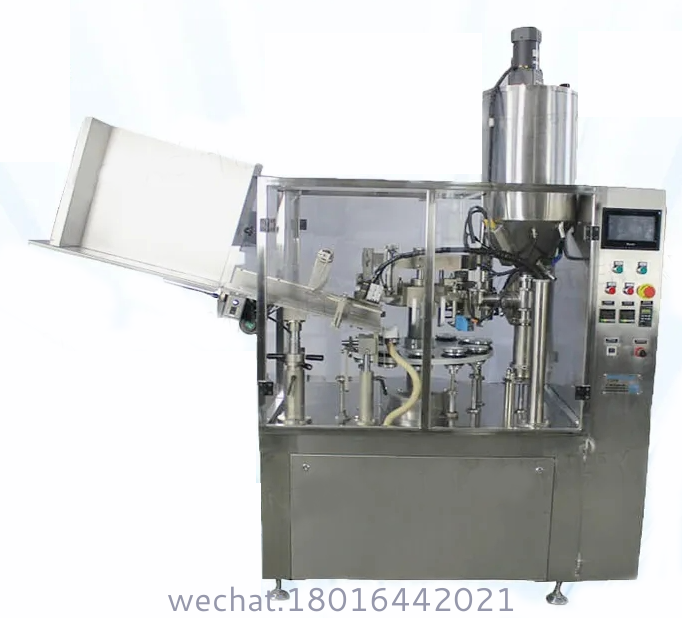

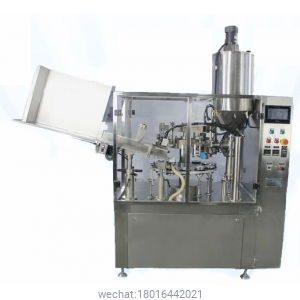

A soft tube filling and sealing machine is mainly used for plastic tube filling and sealing. It has been widely used in the fields of pharmacy, cosmetic, food and chemical etc.This machine function is
Automatic Face Wash Cream Tube Filling & Sealing System
200 Tubes/Min ? ±0.5% Accuracy ? ISO 22716/GMPC Certified ? Zero Active Ingredient Loss
| Parameter | PF-8100 (Standard) | PF-8200P (Pharma-Grade) | PF-8300H (High-Viscosity) |
|---|---|---|---|
| Fill Volume | 15-200ml (±0.5%) | 15-200ml (±0.3%) | 15-200ml (±0.4%) |
| Throughput | 200 Tubes/Min | 180 Tubes/Min | 170 Tubes/Min |
| Viscosity Range | 10,000-300,000 cP | 5,000-200,000 cP | 50,000-500,000 cP |
| Filling Technology | Servo Piston + Mass Flow Meter | Peristaltic Pump (FDA) | Heated Screw Auger |
| Sealing Method | Ultrasonic Cold Seal | Induction Sealing | Laser Fusion |
| Material Contact | 316L EP (Ra<0.4μm) | 316L EP (Ra<0.2μm) | Ceramic-Coated Path |
| Oxygen Control | <0.005 cc/tube/day | <0.002 cc/tube/day | <0.01 cc/tube/day |
| Residual Control | <0.01ml (Teflon Scraper + Vacuum Suction) | <0.005ml | <0.008ml |
| Cleanroom Class | ISO Class 7 | ISO Class 5 | ISO Class 6 |
| Changeover Time | <3 min (Tool-Free) | <3.5 min | <2.8 min |
| Certifications | ISO 22716/GMPC | FDA 21 CFR 210/211 | ISO 15378 |
Performance Data:
| Active Ingredient | 12-Month Retention | Industry Standard |
|---|---|---|
| Vitamin C | 98.5% | 85-90% |
| Salicylic Acid | 99.2% | 88-92% |
| Niacinamide | 98.8% | 90-93% |
Dual-Stage Homogenization:
Anti-Sedimentation:
| Technology | Performance |
|---|---|
| Pulsed Filling | 99.5% Suspension Uniformity |
| Teflon-Coated Path | Zero Particle Adhesion |
| Component | Technology | Performance |
|---|---|---|
| Filling Nozzle | Suspended Non-Contact Design | Zero Tube Contamination |
| Tube Alignment | AI Vision Guidance (±0.2mm) | 100% Precision Docking |
| Static Control | Ionized Air Curtain (10? ions/cm3) | <5V Surface Charge |
Medical-Grade Sterility Assurance
? Triple Aseptic Barrier: 1. H14 HEPA Filtration (ISO Class 5) 2. VHP Sterilization Tunnel 3. RTP Transfer Ports ? Material Safety: | **Certification** | **Standard** | |-------------------|----------------------------| | USP Class VI| Zero Extractables | | EC1935/2004 | Heavy Metal-Free| | Halal Certified | Animal-Derived Material Free |
Hypoallergenic Formula Optimization
Preservative-Free Filling:
| Technology | Performance |
|---|---|
| Oxygen Control | O?<0.1% (GC-MS Verified) |
| Microbial Barrier | 99.999% Inhibition (ISO 11930) |
Fragrance Preservation:
**10" Touchscreen HMI with DermaOS?**
AI-Powered Features:
Adaptive Filling:
| Anomaly | Auto-Correction |
|---|---|
| pH Fluctuation >0.3 | Flow Rate Adjustment |
| Viscosity Shift >10% | Temperature Compensation (±0.5°C) |
100% In-Line QC:
| Inspection Item | Precision |
|---|---|
| Seal Integrity | 5μm Defect Detection |
| Fill Volume | ±0.3ml Accuracy |
| Print Alignment | 0.2mm Deviation Alert |
Precision Engineering
? Dual Closed-Loop Control: - Mass Flow Meter (±0.1% Baseline Accuracy) - Precision Load Cells (0.01g Resolution) ? Anti-Drip Technology: | **Component** | **Residual Volume** | |----------------------|-----------------------| | Capillary Break| Zero Stringing | | Vacuum Suction | <0.005ml | | Teflon Wiper | 360° Tube Cleaning |
Flexible Production
| Feature | Technology | Value |
|---|---|---|
| 3-Min Changeover | Magnetic Quick-Change Heads | 98% Uptime Improvement |
| Formula Memory | 1,000 Cloud-Stored Recipes | 1-Second Product Switch |
| Multi-Format | 15-200ml Adaptive (Irregular Tubes) | Zero Retrofit Costs |
L'Oréal Shanghai Plant Report:
“After implementing PF-8100:
Output: 80 → 200 Tubes/Min (+150%)
Active Ingredient Loss: 8.5% → 0.12%
Annual Savings: $420,000
ROI Period: 5.2 Months”
