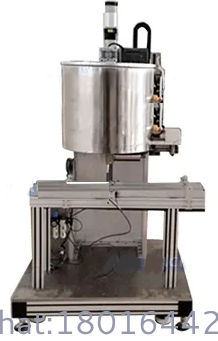

Introduction:Introducing the Glue Stick Filling Machine with Cooling Tunnel—an innovative tandem that takes adhesive packaging to new heights. This specialized equipment, boasting distinctive product
Dual-Component Adhesive Filling System with Cryo-Cooling Tunnel
40 Bottles/Min ? ±0.1% Accuracy ? AB Glue Precision ? SIL-2 Safety
| Parameter | GS-5100 (Standard) | GS-5200AB (Dual-Cartridge) | GS-5300XT (High-Temp) |
|---|---|---|---|
| Capacity | 50-500ml (±0.1%) | A/B: 25-250ml (±0.08%) | 50-500ml (±0.15%) |
| Throughput | 40 Bottles/Min | 36 Bottles/Min | 35 Bottles/Min |
| Mix Ratio Accuracy | N/A | 1:1 to 10:1 (±0.05%) | N/A |
| Viscosity Range | 5,000-500,000 cP | 1,000-300,000 cP (A/B) | 10,000-1,000,000 cP |
| Filling Technology | Heated Screw Auger | Dual Servo Piston + Static Mixer | Hot Melt Gear Pump |
| Cooling Tunnel | 0°C to -20°C | -25°C Cryogenic | 5°C to -10°C |
| Material Contact | Hardox 500 + PTFE | 316L SS + Ceramic Coating | Hastelloy C276 |
| Cure Control | IR Pre-Cure + Flash Freeze | UV-Activation + Deep Chill | Thermal Shock (-30°C→25°C) |
| AB Glue System | N/A | Dynamic Ratio Adjustment | N/A |
| Power | 380V/50Hz, 18kW | 380V/50Hz, 22kW | 380V/50Hz, 25kW |
| LN? Consumption | 15 L/h | 20 L/h | 12 L/h |
| Certifications | CE, ISO 9001 | ATEX Zone 2/SIL-2 | FDA 21 CFR 175.105 |
Performance Metrics:
| Adhesive Type | Set Time (Traditional) | GS-5200AB |
|---|---|---|
| Epoxy AB Glue | 5-10 min | 45s |
| Cyanoacrylate | 60-90s | 8s |
| Polyurethane | 15-30 min | 2 min |
| Component | Technology | Precision |
|---|---|---|
| Dual Coriolis Meters | Real-Time Density Compensation | ±0.05% Ratio Accuracy |
| Smart Static Mixer | 40-Segment Helix Design | 99.9% Homogeneity |
| Auto-Purge | Solvent Flush Between Batches | <1ppm Cross-Contamination |
Electronics Assembly
| Feature | Specification |
|---|---|
| Conductive Adhesives | Silver Epoxy Compatibility |
| Micro-Dispensing | 0.1ml Minimum Shot Size |
| Void Prevention | Vacuum Degassing (-0.8 bar) |
Automotive Bonding
High-Temp Adhesives:
| Parameter | Solution |
|---|---|
| 150°C Hot Melt | Ceramic-Lined Path |
| Vibration Resistance | Pulsed Filling + Shock Cooling |
Crash-Tested Bonds:
Medical Device Assembly
| Component | Certification |
|---|---|
| ISO 13485 | Full Validation Protocol |
| USP Class VI | 0 Extractables |
| Cleanroom | ISO Class 7 Environment |
**10" HMI with AdhesiveOS?**
AI-Driven Features:
Cure Predictor:
| Parameter | Action |
|---|---|
| Exotherm >50°C | Turbo Cooling Activation |
| Humidity >60% RH | N? Blanketing |
Preventive Maintenance:
| Component | Alert Threshold |
|---|---|
| Mixer Wear | Torque >120% Baseline |
| Coolant Efficiency | ΔT <80% |
| Model | Cooling Performance | AB Glue Capability |
|---|---|---|
| GS-5100 | -20°C ±1°C (Single Component) | Not Available |
| GS-5200AB | -25°C ±0.5°C | 10:1 Ratio Range |
| GS-5300XT | -10°C to +150°C (Thermal Shock) | Not Available |
? ATEX 2014/34/EU Zone 2 (GS-5200AB) ? SIL-2 (IEC 61508) ? ISO 9001:2015 ? FDA 21 CFR 175.105 ? RoHS 3/REACH
Precision Bonding Science:
? AB Glue Mastery: - 0.05% Ratio Accuracy - 40-Segment Static Mixer (99.9% Homogeneity) - Auto-Purge with <1ppm Cross-Contamination ? Cryogenic Efficiency: | **Technology**| **Performance**| |-------------------------|---------------------------| | LN? Cryo-Tunnel| -25°C ±0.5°C| | Thermal Shock| 30°C→-25°C in 8s| | Dew Point Control| <-40°C| ? Industrial Durability: - Tungsten Carbide Auger (2,200 Hv) - Kalrez?6375 Seals (-30°C to 200°C) - IP66 Washdown Protection
