Semi-Automatic Jerrycan Filling Machine – High-Speed, Precise, Explosion-Proof

Semi-Automatic Jerrycan Filling MachineExplosion-Proof ? ±0.25% Accuracy ? 25 Cans/HourIdeal for Chemicals, Solvents, Lubricants & Hazardous LiquidsShanghai Guangzhi Automation’sGZ-JC50 Seriesrede

  • Brand:
  • Model:

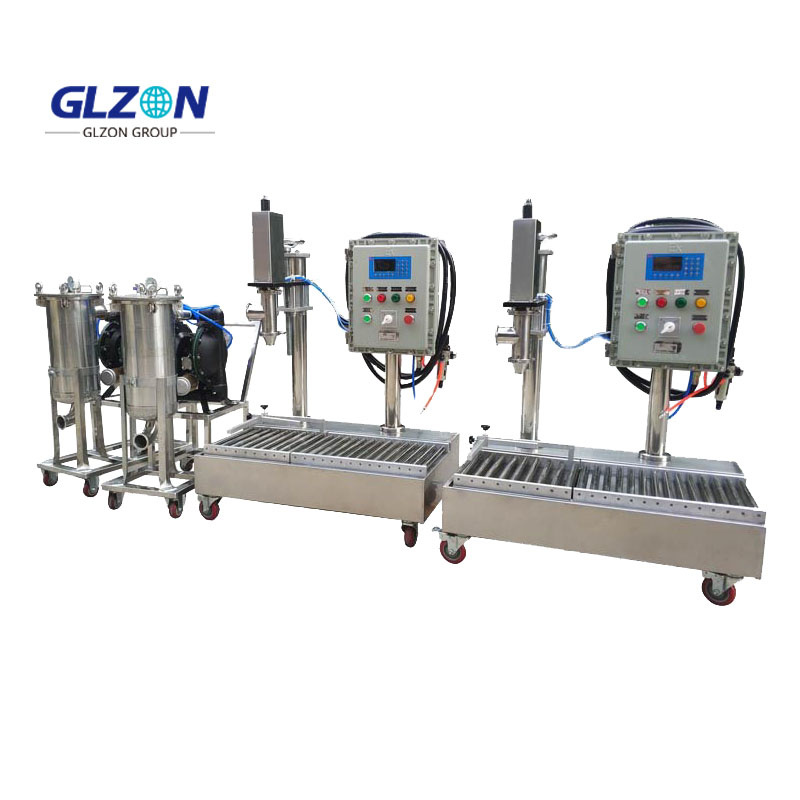

Semi-Automatic Jerrycan Filling Machine

Explosion-Proof ? ±0.25% Accuracy ? 25 Cans/Hour
Ideal for Chemicals, Solvents, Lubricants & Hazardous Liquids

Shanghai Guangzhi Automation’s GZ-JC50 Series redefines safety and efficiency for filling jerrycans (5–50L) with flammable, corrosive, or viscous liquids. Combining ATEX/IECEx-certified explosion-proof design with servo-driven precision, this system cuts filling errors by 99%, reduces operator exposure to hazards, and delivers ROI in <8 months.

Explosion-proof jerrycan filler


Core Innovations

ATEX Zone 1/21 Compliance
Integrated gas detection + pressurized control cabinet (IP66) prevents ignition of vapors (Group IIA/IIC gases).
Zero-Drip Nano-Coated Nozzle
PTFE/SiC ceramic composite retracts instantly post-fill, eliminating spills (<0.1mL residual).
Auto Viscosity Compensation
Handles 1–30,000 cP liquids (e.g., acetone to gear oil) via adaptive flow control.
Quick-Change Can Adaptors
Tool-free swap between 5L, 10L, 20L, 30L, 50L jerrycans in <15 seconds.
Ergonomic Anti-Fatigue Design
Height-adjustable conveyor + foot pedal operation reduces operator strain.


Technical Specifications

*Table: GZ-JC50 Performance & Safety Metrics*

ParameterSpecificationSafety/Certification
Throughput20–25 jerrycans/hour (50L)
Accuracy±0.25% of set volumeCalibrated per ISO 17025
Filling Range1–50 liters
Viscosity Range1–30,000 cPHeated path option (80°C max)
Explosion Proof RatingATEX: Ex db ib mb IIB T4 GbIECEx, NEC 500 Class I Div 1
Material Contact316L SS / PTFE / FFKM Kalrez? sealsResists aromatics, acids, bases
Power Supply230V/50Hz, 2.2 kW + 0.7 MPa airEMC Directive 2014/30/EU
Control System10" IP66 HMI + PLC with audit trail21 CFR Part 11 option
Safety FeaturesEmergency stop, vapor sensor, grounding alarmSIL 2 (optional)
Dimensions1,500 × 900 × 1,800 mm (L×W×H)Weight: 450 kg

Industry-Specific Engineering
