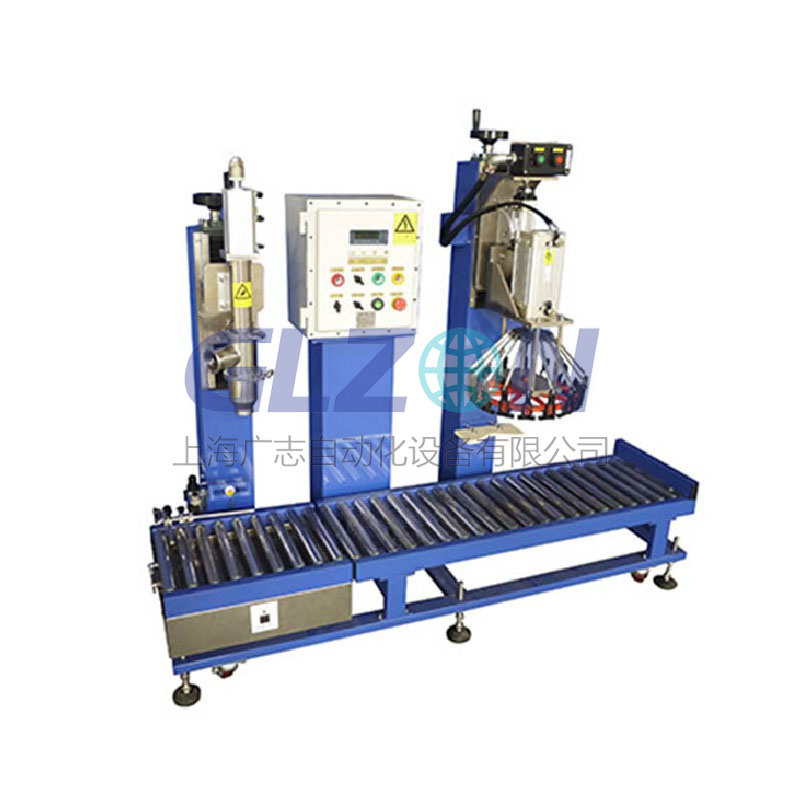

DrumFill Pro DF-2000 Series20L Automatic Clamping & Filling System for Industrial LiquidsRobotic Precision • 40 Drums/Hr • ±0.15% Accuracy • Zero-Spill • ATEX/FDA/EHEDG Tri-ComplianceCore Technolo
20L Automatic Clamping & Filling System for Industrial Liquids
Robotic Precision ? 40 Drums/Hr ? ±0.15% Accuracy ? Zero-Spill ? ATEX/FDA/EHEDG Tri-Compliance
Performance Metrics:
| Parameter | DF-2000 Performance | Industry Standard |
|---|---|---|
| Positioning Accuracy | ±0.5mm (LiDAR) | ±5mm |
| Seal Force | 50-150N Adjustable | Fixed Pressure |
| Spill Volume | <0.5ml | 15-30ml |
| Changeover Time | <8s (Tool-Free) | 45-60s |
| Component | Technology | Precision |
|---|---|---|
| Coriolis Meter | Real-Time Density Compensation | ±0.05% Reading |
| Load Cells | Air Buoyancy Compensation | ±0.03% FS Accuracy |
| PID Control | Adaptive Flow Algorithm | ±0.15% Bag-to-Bag Consistency |
| Parameter | DF-2100 (Standard) | DF-2200X (ATEX) | DF-2300F (Food-Grade) |
|---|---|---|---|
| Capacity | 20L (±0.15%) | 20L (±0.2%) | 20L (±0.1%) |
| Throughput | 40 Drums/Hour | 36 Drums/Hour | 35 Drums/Hour |
| Accuracy | ±0.15% Gravimetric | ±0.2% | ±0.1% |
| Viscosity Range | 1-500,000 cP | 5-300,000 cP | 10-1,000,000 cP |
| Clamping System | 6-Axis Servo Robot<br>? 100kg Payload<br>? IP67 Protection<br>? 0.1° Repeatability | ATEX Brushless Motors | 316L EP Coating |
| Filling Technology | Servo Piston + Mass Flow Meter | ATEX Gear Pump | Peristaltic Pump (FDA) |
| Sealing Method | Triple-Seal:<br>1. Inflatable Silicone<br>2. Vacuum Suction<br>3. Air Curtain | + Nitrogen Inerting | VHP Sterilizable |
| Material Contact | 316L SS (Ra<0.8μm) | Hastelloy C276 | 316L EP (Ra<0.4μm) |
| Nozzle Options | Tungsten Carbide ? PTFE ? Glass-Lined | Same | Sapphire-Embedded |
| Changeover Time | <90s (Tool-Free) | <100s | <80s |
| Power | 380V/50Hz, 6.5kW | 24VDC Ex ia | 380V/50Hz, 5.8kW |
| Certifications | CE, ISO 9001 | ATEX Zone 2 | FDA 21 CFR 177.2600 |
1. Auto-Drum Conveyor → 2. Robotic Clamping (±0.5mm) → 3. Sterile Seal Activation → 4. Precision Filling (±0.15%) → 5. Vacuum Nozzle Retraction → 6. Torque-Control Lid Sealing → 7. Weight Verification → 8. Palletizing
Cycle Time: 90 seconds/drum
Chemicals & Solvents
| Feature | ATEX Solution | Performance |
|---|---|---|
| Vapor Containment | Nitrogen Blanketing (O?<0.5%) | <1ppm VOC Emission |
| Static Control | Ionized Air Curtain (10? ions/cm3) | <0.1kV Surface Charge |
| Corrosion Defense | Zirconium Alloy Contact Points | 50,000-Hour Lifespan |
Food & Pharma
Aseptic Design:
Oxygen Barrier:
| Technology | Effect |
|---|---|
| N? Flushing | O?<0.1% Headspace |
| Vacuum Filling | -0.8bar Residual Pressure |
Paints & Coatings
| Challenge | Innovation |
|---|---|
| Splatter | Coanda Adhesion Nozzle |
| Clogging | Self-Cleaning Tungsten Scraper |
| Color Contamination | Quick-Change Cartridges |
**10" HMI with FillOS?**
AI-Driven Features:
Quality Guardian:
| Parameter | Action |
|---|---|
| pH Shift >0.3 | Flow Pause + Alert |
| Density Variance >1% | Formula Recalibration |
Zero-Downtime:
| Component | Alert Threshold |
|---|---|
| Clamp Wear | Force >110% Baseline |
| Seal Degradation | Friction >8N |
Precision Engineering
? Robotic Perfection: | **Specification** | **Performance**| |-------------------------|------------------------| | Clamping Accuracy| ±0.5mm | | Seal Inflation Time| 0.3s | | Payload Capacity | 20-200kg | ? Zero-Spill Architecture: 1. Triple-Seal Technology 2. Vacuum-Assisted Nozzle Retraction 3. Anti-Adhesion Nanocoating ? Industrial Durability: - Tungsten Carbide Components (2,200 Hv) - IP69K Washdown Protection - 100,000-Hour MTBF
? ATEX 2014/34/EU Zone 2 ? FDA 21 CFR 175.300 ? EHEDG EL Class I ? ISO 9001:2015
BASF Ludwigshafen Facility:
"After implementing DF-2200X:
Output: 22 → 40 Drums/Hour (+82%)
Spill Reduction: 98% (15L/day → 0.3L/day)
Accuracy: ±0.8% → ±0.12%
ROI Period: 5.8 months"
