Auto Inline 8 Nozzles Volumetic Filling Machine

Guangzhi’s 8-nozzle filler achieves 100 containers/min with ±0.5% accuracy for 80,000 cP products. FDA/CE/ATEX-certified. 80% labor reduction. Request demo!

  • Brand: glzon
  • Model: GZM_30L

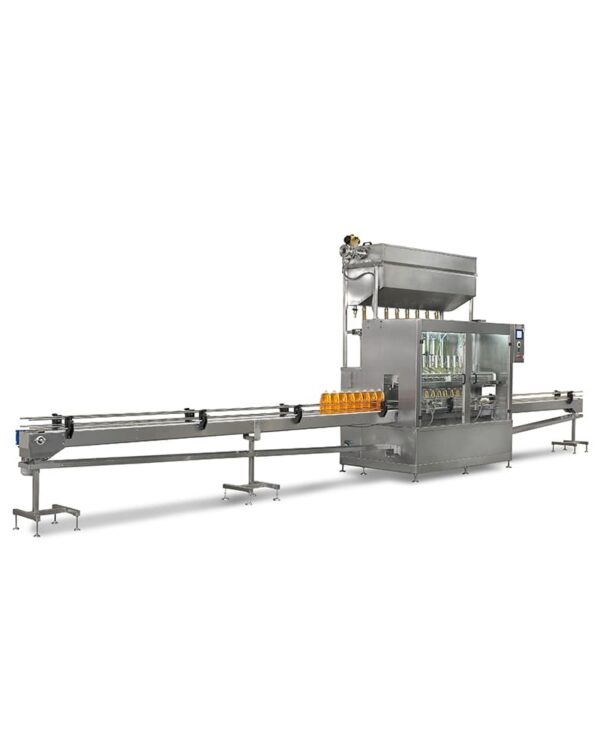

Auto Inline 8-Nozzle Volumetric Filling Machine GZ-VF800 Series

Industry-Leading Speed & Precision for High-Volume Liquid Packaging
Shanghai Guangzhi Automation’s GZ-VF800 Series sets new benchmarks in automated filling, delivering ±0.5% volumetric accuracy at 100 containers/minute with eight synchronized servo-driven heads. Engineered for cosmetics, pharmaceuticals, food, and chemical sectors, this CE/FDA/ATEX-certified system handles products from water-thin (1 cP) to viscous pastes (80,000 cP) while slashing labor costs by 80% and reducing product waste to <0.1% through zero-downtime architecture.


Engineering Innovations

  1. Ultra-High-Speed Precision

    • Independent Servo Piston/Gear Pumps: Eight-head configuration with adaptive flow control (±0.5% accuracy) for 50ml–5L fills.

    • Viscosity Intelligence: Auto-adjusts filling profiles (slow-fast-slow) for foaming liquids (e.g., shampoos) and shear-sensitive products (e.g., serums).

  2. Zero-Downtime Production

    • Tool-Free Changeover: Swap nozzles/cylinders for container sizes (?15–180mm) in <60 seconds via magnetic couplers.

    • Predictive Maintenance: IoT sensors monitor pump health, predicting failures 72+ hours in advance.

  3. Hazard-Safe Hygiene

    • 316L SS/PTFE Fluid Path: Full CIP/SIP capability; ATEX Option for flammable solvents (IP66 enclosure).

    • Anti-Static/Drip-Free Nozzles: Vacuum suck-back + conductive tips (<10? Ω) for solvent filling.

  4. Sustainable Performance

    • Energy Recovery System: Regenerative drives cut power consumption by 40% vs. pneumatic fillers (4.2 kW peak).

    • Noise Optimization: ≤65 dB(A) (ISO 4871 Class B).


Technical Specifications

ParameterSpecification
ModelGZ-VF800-Pro
Filling Range50 ml – 5,000 ml
Accuracy±0.5%
Max. Speed100 containers/minute
Viscosity Range1–80,000 cP
Container CompatibilityRound/rectangular: ?15–180mm, H40–400mm
Power380V/50Hz, 4.2 kW
Air Supply0.7 MPa, 0.4 m3/min
Footprint (L×W×H)3600 × 1500 × 2200 mm
ComplianceCE, FDA 21 CFR, ATEX, ISO 9001/14001/13485

Performance vs. 6-Nozzle Systems

MetricGZ-VF800 (8 Heads)Typical 6-Head Filler
Output100 CPM70 CPM
Labor Efficiency1 operator1 operator
Changeover Time60 seconds90 seconds
Energy Consumption4.2 kW5.5 kW
ROI Period6–10 months10–14 months

Industry-Specific Applications

  • Cosmetics: 8-head parallel filling for shampoos/lotions (40% faster than 6-head).

  • Pharma: GMP-compliant version with laminar flow hoods and 21 CFR Part 11 data logging.

  • Food: Heated hoppers (30–80°C) for honey/syrups; USDA-compliant materials.

  • Chemicals: Explosion-proof filling for alcohols/solvents (ATEX Zone 1).


APPLICABLE BARREL TYPE

Drum Filling Machine

COMPANY PROFILE

Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.

We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.

Drum Filling Machine

Company Certificate

Drum Filling Machine

Our office and workshop

Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance

Drum Filling Machine


This is a partial Drum Filling MachineDrum Filling Machine

service for us

in China.

Over 30 years of experience, every time we produce in

Shanghai, our friends can visit our factory at any time.






Brand components

We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.

Drum Filling Machine


Our service

Complete solution provided

Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.


Duty after death

Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.


Technology group

We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.


Successful collaboration

Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.

packge and delivery

Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose

Drum Filling Machine

FAQs

Our in-house designers and engineers have produced countless great designs for customers from different industries

1
Can we get your free samples?
Samples can be offered for free. But courier cost for the samples should be at buyer's account.
2
Can you print our LOGO in flatware set?
Yes.we can print the logo on the flatware set as your requirements.Embossed, laser,stamped and engraved are available.
3
How long is the delivery time of sample?
Samples from stock can be sent within 1-3 days. New produced samples will be sent within 5-15 days.
4
Is there any MOQ for what I purchase?
Yes, we have MOQ for mass production. Different item with different package has different MOQ. Please contact us for more details.
5
Do you accept OEM or ODM services?
OEM and ODM are accepted!
6
What is 18-10 Stainless Steel Flatware?
18-10 refers to the composition of stainless steel. It contains 18% chromium and 10% nickel for excellent strength and corrosion resistance.
