Shanghai Guangzhi’s turnkey ketchup line fills/seals 500-3000ml bottles at 120 bpm with ±0.5% accuracy. Features anti-settling filling, steam sterilization & leak-proof capping.

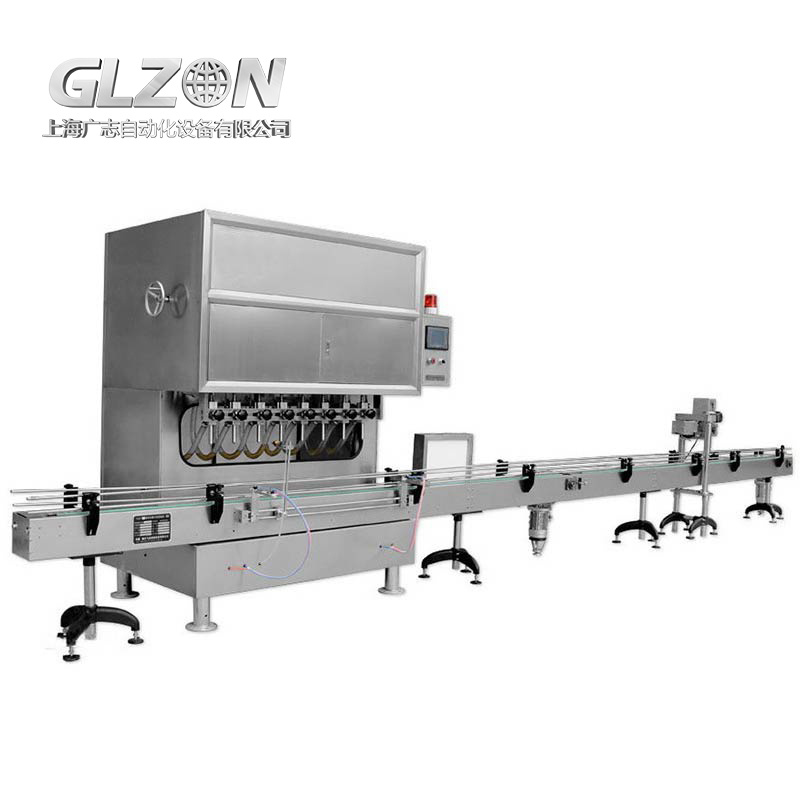

Shanghai Guangzhi Automation delivers a fully synchronized line for bottling, filling, sealing, labeling, and palletizing ketchup sauces (10-50% pulp content). Engineered for PET/glass bottles (500-3000ml), this GMP-compliant system combines 85°C hot-fill sterilization, anti-pulp settling technology, and robotic handling to achieve 120 bottles/min with zero cross-contamination.
1. Precision Hot-Fill Station
Pulp Management System: Agitating hopper with helical ribbon mixer prevents tomato pulp sedimentation (±1% density variance)
±0.5% Volumetric Accuracy: Corrosion-resistant ceramic pistons handle 15,000 cP viscosity at 85±2°C
Nitrogen Overpressure: Maintains 0.3-0.5 bar during filling to prevent bubble formation
2. Hermetic Sealing System
| Process | Technology | Performance |
|---|---|---|
| Steam Sterilization | Saturated steam tunnel | 6-log pathogen reduction |
| Vacuum Capping | Rotary chuck torque control | 5-18 in-lb seal integrity |
| Cooling Tunnel | Progressive temperature zones | Prevents bottle distortion |
3. In-Line Quality Control
AI Vision Inspection: Checks fill level (±2mm), cap alignment, label position
Pressure Decay Tester: Detects microleaks ≥0.05cc/min
Weight Rejector: ±1g accuracy with automated diverter
4. Palletizing Robotics
Delta robot stacks 25kg cases at 18 cycles/min
Integrated stretch wrapping for humidity protection
Throughput: 120 bottles/minute (1L PET bottle)
Bottle Compatibility: Round/square PET/glass (?50-120mm × H150-320mm)
Cap Types: 38-53mm continuous thread, press-on lug
Filling Temp: 82-88°C (adjustable)
Cooling Rate: 85°C→45°C in 8 min (water spray + forced air)
Power: 380V/50Hz, 28kW
Line Footprint: 16m × 3.2m × 3.5m (L×W×H)
OEE: ≥93% (validated @ 24/7 operation)
Pulp Handling Breakthroughs
Anti-Jam Nozzles: 8mm ID ceramic-coated tips resist pulp clogging
Particle Size Tolerance: Up to 8mm tomato solids
Acid Resistance: Hastelloy C276 components withstand pH 3.3-3.9
HACCP-Critical Design
CIP/SIP Integration: 4-channel spray balls (flow ≥1.5m/s)
Drainable Frame: 3° slope with no fluid entrapment zones
Material Traceability: Laser-etched batch codes on all product-contact parts
Heinz-Style Plant Retrofit (Vietnam)
Challenge: 8% underfill in 700ml bottles due to pulp settling
Solution: Helical mixer + viscosity-compensated pistons
Results:
99.4% fill accuracy
40% energy saving via heat recovery cooling
ROI in 14 months
Global Certifications
FDA 21 CFR 114 (Low-Acid Canned Foods)
EU Regulation No 1935/2004
ISO 22000 & HACCP
3-A Symbol-08 (Option)
Critical Options
| Upgrade | Function |
|---|---|
| Aseptic Cold Fill Module | For sensitive ingredients |
| X-Ray Detection | Foreign object scan (≥2mm glass/metal) |
| Blockchain Traceability | End-to-end batch tracking via IBM Food Trust |
| Solar Thermal System | Cuts steam generation cost 65% |
Support Commitment
24/7 remote diagnostics with predictive maintenance alerts
Sanitary spare kit (gaskets/pistons) global delivery ≤72h
APPLICABLE BARREL TYPE
