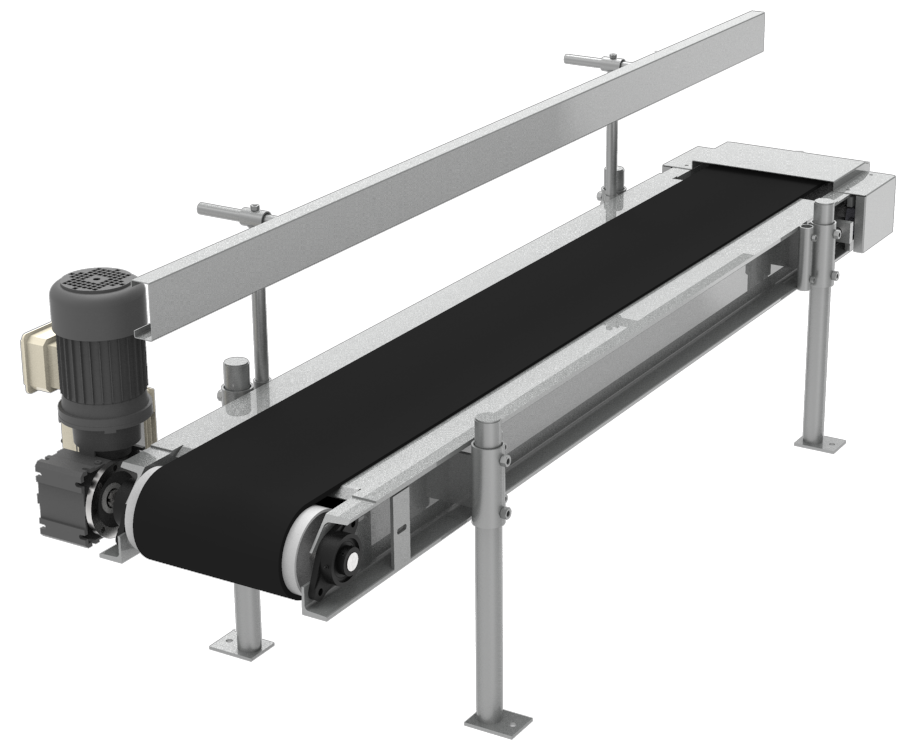

Bag Closing Conveyor
Shanghai Guangzhi’s Bag Closing Conveyor integrates sewing/heat sealing with 40 bags/min throughput. ±0.5% stitch accuracy, dust control & ATEX option for cement/chemical plants.
- Brand： glzon
- Model： GZM
Product Essence: Seamless End-of-Line Integration
Shanghai Guangzhi Automation’s Bag Closing Conveyor unifies bag sealing, inspection, and transfer in one robust system. Engineered for 10-50kg sacks (PP woven/paper/jute), it achieves 40 bags/minute with precision sewing or heat sealing (±0.5mm accuracy), ATEX-compliant dust containment, and zero-damage handling – critical for cement, grain, and chemical packaging.
Core Technology Highlights
1. Intelligent Sealing Options
Dual-Mode Closure:
Industrial Sewing Head: Triple-thread lockstitch (35 lb tensile)
Heat Sealing Bar: 0-300°C for laminated bags (10mm seal width)
Auto-Detect System: Laser scans bag material to switch modes
2. Precision Conveyance
Servo-Driven Belts: Speed sync ±0.1s with upstream fillers
Anti-Slip Control: Vacuum zones hold bags during sealing
Zero Misalignment: Edge guides with AI vision correction (±1mm)
3. Dust-Tight Containment
Enclosed Sealing Chamber: IP65-rated with HEPA filtration (99.97% @ 0.3μm)
Negative Pressure System: -15Pa dust capture at transfer points
ATEX Zone 21 Kit: Explosion-proof motors (Ex IIB T4)
Technical Specifications
| Parameter | Specification |
|---|---|
| Throughput | 40 bags/min |
| Bag Weight | 10-50kg |
| Sealing Accuracy | ±0.5mm (stitch/seal position) |
| Conveyor Width | 650mm (adjustable to 1000mm) |
| Sealing Speed | Sewing: 1,000 stitches/min |
| Heat Seal: 3 sec cycle | |
| Power | 380V/50Hz, 5.5kW |
| Dust Emission | ≤2mg/m3 (ISO 14644 Class 8) |
| Footprint (L×W×H) | 6000×1200×1800mm |
Industry-Specific Solutions
Cement & Minerals
Abrasion Kits: Tungsten-coated sewing throat plates
Vibration Dampeners: Stabilize sacks during sealing
Food & Grain
USDA/FDA Compliance: Food-grade belts & seals
Allergen Control: Tool-free cleaning in <5 min
Chemical Powders
Corrosion Package: Hastelloy sewing head (HCl/H?SO? resistance)
Static Dissipation: Conductive rollers (<10? Ω)
Smart Control System
10" HMI Touchscreen:
Real-time OEE monitoring
Seal quality analytics (stitch density/temp curves)
200+ recipe storage
IoT Connectivity:
OPC UA for ERP integration
Predictive maintenance alerts
Safety Ecosystem:
Emergency stop cords (every 1.5m)
Seal chamber interlocks
Operational Impact
Egyptian Cement Plant Case:
Challenge: 5% sack leaks from manual sealing
Solution: ATEX closing conveyor with auto-stitch tensioning
Results:
? Zero leaks in 500K+ sacks
? 30% labor reduction
? ROI in 7 months
Global Compliance & Value
Certifications:
CE EN 620:2021
ATEX 2014/34/EU (Zone 21)
ISO 9001:2015
Cost Efficiency:
40% Space Saving vs standalone sealers
Energy Recovery: Regenerative drives capture 25% braking energy
Upgrade Modules:
| Option | Function |
|---|---|
| In-line Checkweigher | ±0.2kg weight verification |
| RFID Tagging | Batch coding during conveyance |
| X-ray Inspection | Seal integrity scanning (≥2mm voids) |
Support & Service
24/7 Global Network:
Remote diagnostics via IIoT gateway
AR-guided maintenance (Microsoft HoloLens)
Critical Spares:
Sewing head assemblies
Heat seal cartridges
HEPA filter cassettes
Global dispatch ≤72h from Shanghai/Dubai/Houston hubs
