Product Essence: Zero-Ignition Precision for Flammable Oils

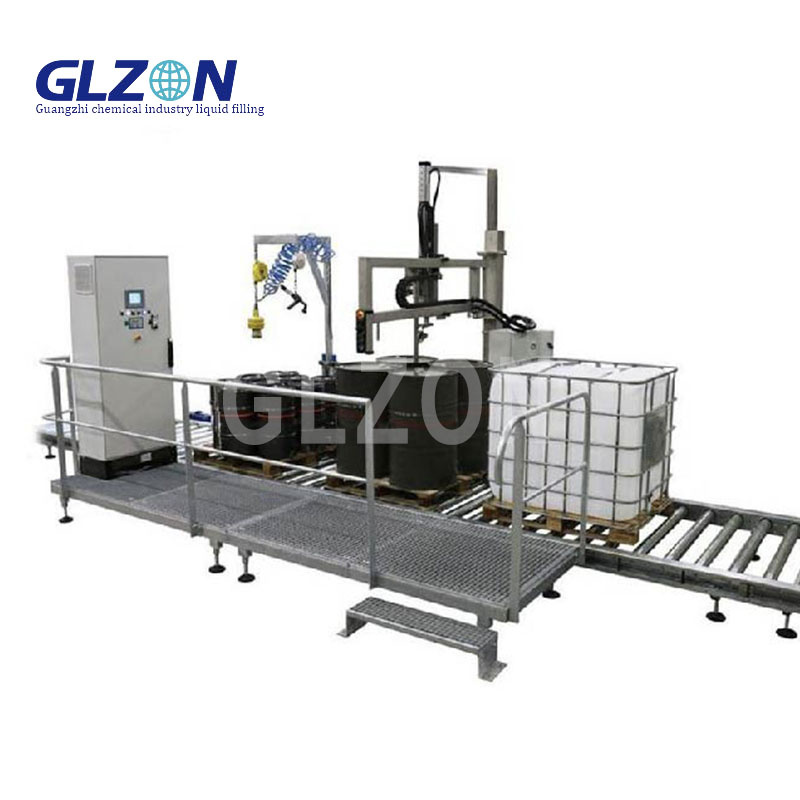

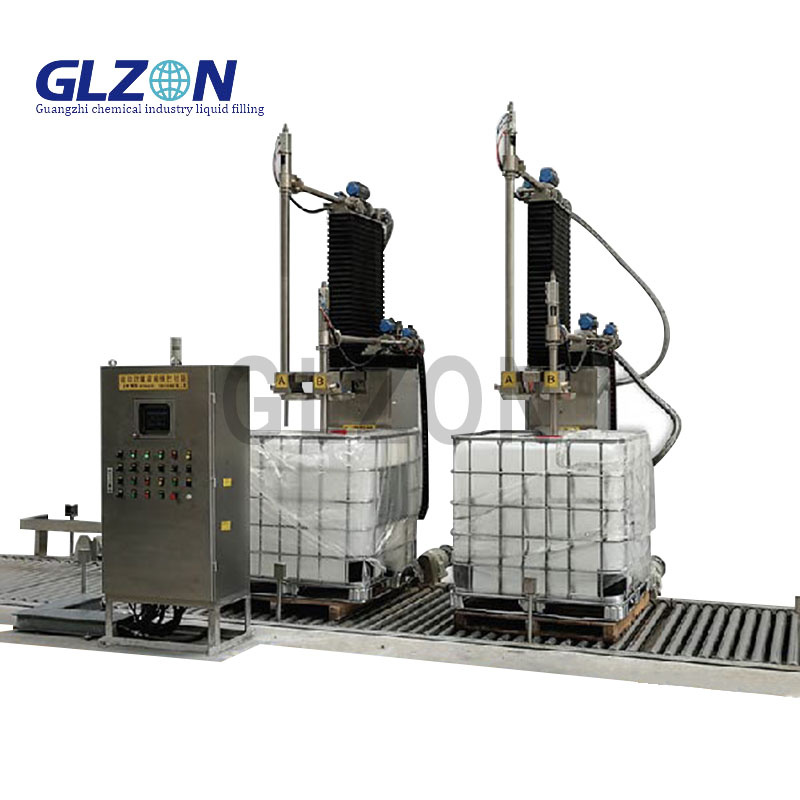

Shanghai Guangzhi Automation’s ATEX IBC Filler delivers ±0.1% gravimetric accuracy for 200-1000L lubricants (ISO VG 32-680) in Zone 1 hazardous areas. Engineered with Ex d IIC T4 certification, nitrogen inerting (O?<0.5%), and multi-point static dissipation, it achieves 15 fills/hour while eliminating electrostatic ignition risks per NFPA 77 and IEC 60079 standards.

Core Safety & Precision Technology
1. Explosion-Proof Architecture
Component | ATEX Specification |
---|
Load Cells | Ex ia IIC T4 intrinsically safe |
Filling Head | Ex d pressurized enclosure |
Control Panel | Ex p purged (IP66) |
Static Dissipation | Conductive hoses (<10? Ω) + auto-grounding |
2. High-Viscosity Optimization
Heated Flow Path:
Smart Flow Control:
3. Zero-Waste Design
Technical Specifications
Parameter | Standard Model | Arctic Model |
---|
Filling Range | 200-1000L (±0.1%) | 200-1000L (±0.15%) |
Viscosity Range | 32-680 cSt (ISO VG) | 68-1500 cSt |
Flow Rate | 100-400 L/min | 80-300 L/min |
Heating Capacity | 8kW (40-80°C) | 12kW (60-100°C) |
N? Consumption | 25 L/min @ 4bar | 30 L/min @ 5bar |
Throughput | 15 fills/hour | 12 fills/hour |
Power | 380V/50Hz, 9.5kW | 480V/60Hz, 14kW |
Safety Certification | ATEX Zone 1 (Ex d IIC T4) | ATEX Zone 1 + SIL2 |
Footprint (L×W×H) | 3800×2500×3200mm | 4000×2500×3400mm |
Lubricant-Specific Engineering
Oil Type | Specialized Feature |
---|
Transformer Oil | Dry air purge (dew point -40°C) |
Engine Lubricants | Anti-foam pulsed filling |
Gear Oils (EP) | Additive injection port |
Synthetic Esters | Hastelloy C22 wetted parts |
Smart Safety Ecosystem
10" ATEX HMI (Ex de IIC T6)
Real-time dashboards:
O? concentration (ppm)
Static charge (kV)
Fill curve analytics
Predictive alerts:
Triple Safety Interlocks (SIL2)
Auto-shutdown if:
Emergency nitrogen purge
Operational Impact
German Lubricant Blender Case:
Eliminated electrostatic incidents in Zone 1 areas
Achieved ±0.08% fill accuracy for ISO VG 460
ROI in 13 months via reduced giveaway
Global Compliance & Upgrades
Certifications:
ATEX 2014/34/EU (Zone 1)
IECEx IEC 60079-0
API Standard 675
OIML R60 Class 0.5
Critical Upgrades:
Module | Function |
---|
Inline Viscometer | Real-time viscosity (±2 cSt) |
Robotic Lid Handler | Auto-torque sealing (5-50 N·m) |
Blockchain Batch Log | Immutable API/REACH compliance records |
AR Emergency Drill | HoloLens-based hazard training |
Support & Service
24/7 Hazardous Response Team:
Remote diagnostics via intrinsically safe IIoT
Critical Spares Dispatch ≤48h:
Ex-proof Coriolis meters
Heating cartridges
Kalrez sealing kits
Lubricant compatibility validation
