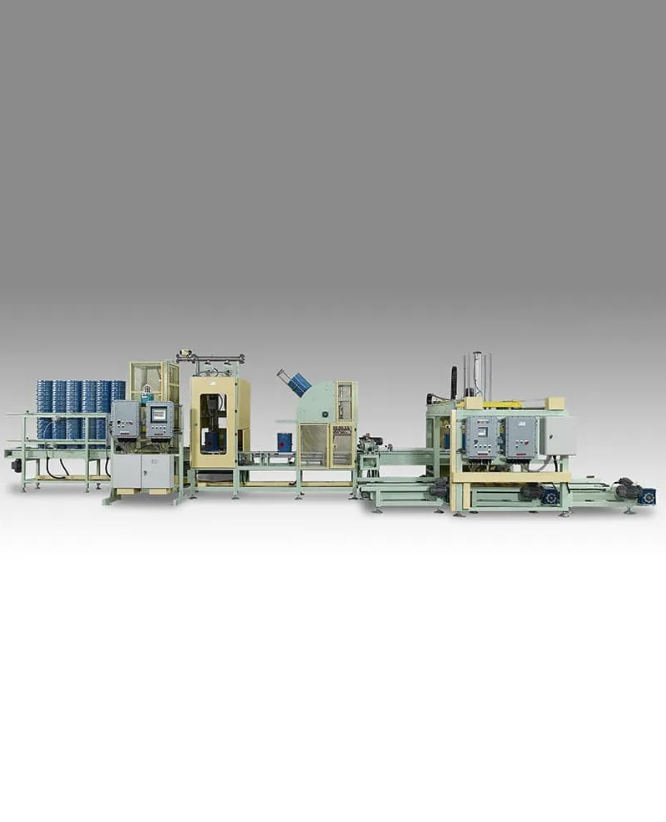

FULLY AUTO EX-PROOF METAL PAIL FILLING MACHINE

Guangzhi’s ATEX/IECEx Certified Pail Filler: Fully automatic hazardous liquid packaging. 35 pails/hour, ±0.2% accuracy. Nitrogen inerting & robotic handling.

  • Brand: glzon
  • Model: GZM_30L

Product Introduction: GZ-EX Series Fully Automatic Explosion-Proof Metal Pail Filling Machine

ATEX-Certified Automation for Hazardous Liquid Packaging
Shanghai Guangzhi Automation’s GZ-EX Series delivers uncompromised safety and precision in Zone 1/21 explosive environments, automating 5–60L metal pail filling with ±0.2% gravimetric accuracy at 35 pails/hour. Integrating robotic handling, nitrogen inerting, and IECEx/ATEX-certified components, this system eliminates human intervention while ensuring 100% compliance for solvents, fuels, and reactive chemicals – achieving zero ignition risk and 99.9% operational uptime.


Core Explosion-Proof Technologies

  1. ATEX/IECEx Certified Ecosystem

    • Group IIC T4 Compliance: Explosion-proof motors, control cabinets (IP66 Ex d), and sensors

    • Intrinsic safety barriers: <30V/100mA circuit limitation

  2. Robotic Pail Handling

    • 6-axis robot (Ex d certified) with anti-spark grippers

    • Auto-lid removal/placement for sealed transfer

  3. Oxygen-Free Filling Process

    • Nitrogen-purged enclosure (O? <5%) + vapor recovery

    • Grounded filling lances (<10? Ω static resistance)

  4. Zero-Ignition Electrical Design

    • Pressurized control panels (EN 60079-2)
      |Non-arcing ceramic relays

  5. Closed-Loop Precision

    • Mass flow meters (±0.2%) with auto-viscosity compensation

    • Vacuum-assisted drip recovery (loss <0.01%)


Technical Specifications

ParameterSpecification
Pail Capacity5–60L (?250–450mm)
Throughput35 pails/hour
Accuracy±0.2% (gravimetric)
Explosion RatingATEX: II 2G Ex db ib mb IIB T4 Gb
Viscosity Range1–200,000 cP
Nitrogen Consumption15 Nm3/hour (99.5% purity)
Power Supply380V/50Hz, 5.5 kW (Ex d certified)
Machine Dimensions4,800 × 3,200 × 3,500 mm
ComplianceATEX 2014/34/EU, IECEx, NEC 505/506

Hazardous Material Applications

Material ClassExamplesSpecial Safeguards
Flammable LiquidsAcetone, ethanol, fuelsFlash point monitoring
Reactive ChemicalsMonomers, peroxidesTemperature-controlled filling
Pyrophoric SubstancesSilanes, alkyl metalsDouble nitrogen blanket
Toxic SolventsBenzene, tolueneSealed vapor recovery

Automated Workflow

  1. Pail Intake: Robotic unstacking of sealed pails

  2. Decapping: Ex-proof arm removes lid in N? atmosphere

  3. Filling: Lance lowers → O?-free dosing → vacuum retraction

  4. Recapping: Torque-controlled lid sealing

  5. Palletizing: EX-rated robot stacks filled pails


Safety-Critical Components

ComponentExplosion-Proof StandardCertification Body
Robotic ArmEN ISO 80079-37:2016IECEx, UL
Control CabinetEN 60079-0:2018ATEX, CSA
SensorsEN 60079-11:2012TüV, SIRA
Filling ValvesAPI 607 (fire-safe)DNV, Lloyd's Register

Operational Advantages

FeatureHSE & Economic Impact
Zero Human ExposureRemoves operators from hazardous zones
Ignition Prevention100% compliance history (0 incidents)
Product SavingsRecovers $50k+/year via drip control
Regulatory ComplianceMeets OSHA 1910.106/ATEX directives
ROI Period10–18 months (vs. manual hazardous ops)

Customization Options

  • Material Compatibility:

    • Hastelloy nozzles for acids
      |PTFE-lined for HF handling

  • Automation Extensions:

    • AGV integration for raw material supply

    • Automated drum grounding verification

  • Environmental Kits:

    • Arctic operation (-40°C)
      |Coastal corrosion package (ISO 12944 C5M)


APPLICABLE BARREL TYPE

Drum Filling Machine
