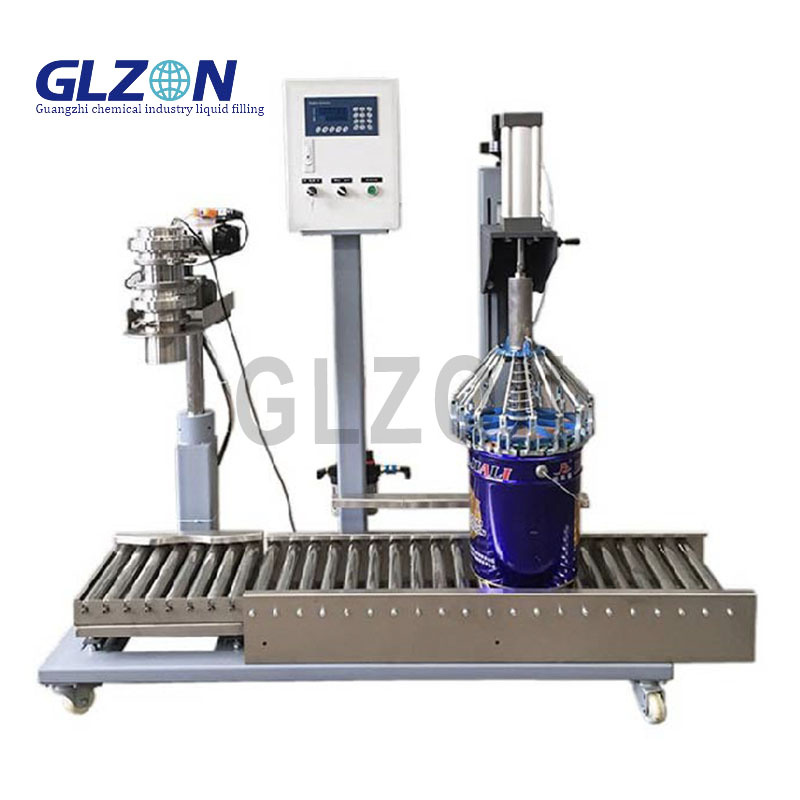

Fully Automatic 25L Paint Can Filling and Capping Machine

Fully auto machine fills & caps 25L paint cans at 30/min. ±0.15% accuracy, anti-skinning system & ATEX option. Water-based/solvent paints. CIP ready.

  • Brand: glzon
  • Model: GZM_30L

Product Essence: Precision Meets Paint Chemistry

Shanghai Guangzhi Automation’s 25L Paint Can Filler & Capper integrates high-precision filling (±0.15%) and torque-controlled sealing (5-50 N·m) in one system. Designed for water-based/solvent paints (500-30,000 cP), it achieves 30 cans/minute throughput with helical anti-settling agitation, nitrogen-blanket filling, and paint-skin prevention technology – reducing waste by 40% while ensuring color consistency.

Paint Can Filling Machine


Core Technology Innovations

1. Settlement-Free Filling

SystemTechnical Advantage
Bottom-Up Fill NozzleAvoids pigment separation
Helical Ribbon AgitatorWall scraping at 10-30 RPM (shear <1,000 s?1)
Pulsed Flow ControlDensity uniformity (±0.8% SG)
Vacuum DegassingRemoves 95% entrained air

2. Intelligent Sealing System

  • Vision-Guided Cap Alignment:

    • Corrects ±5° angular deviation

    • ±0.5mm positional accuracy

  • Torque-Phase Control:

    PhaseFunction
    Pre-Seal25% torque for gasket compression
    Main Torque70% torque for thread engagement
    Finishing5% torque relief for stress relaxation

3. Paint-Skin Prevention

  • Oxygen Barrier Technology:

    • Nitrogen-purged headspace (O?<0.3%)

    • Floating lid applicator pre-sealing

  • Residual Paint Protection:

    • UV-blocking can material option

    • Infrared drying tunnel (60°C)


Technical Specifications

ParameterWater-Based ModelSolvent Model
Throughput30 cans/min25 cans/min
Filling Accuracy±0.15% (25L target)±0.2%
Viscosity Range500-20,000 cP500-30,000 cP
Cap Size?110-160mm?110-160mm
Torque Accuracy±2% (5-50 N·m)±2.5%
Power380V/50Hz, 8.5kW380V/50Hz, 9.2kW
N? Consumption15 L/min20 L/min
CIP Cycle<8 min (water rinse)<12 min (solvent flush)
Footprint (L×W×H)4500×1800×2200mm4800×1800×2400mm

Paint-Chemistry Engineering

Paint TypeGuangzhi Solution
Acrylic EmulsionsLow-foam nozzles + slow-fill finish
Epoxy PaintsQuick-flush dual-path system
Metallic CoatingsAnti-sedimentation pulsed agitation
Solvent-BorneATEX Zone 1 option + vapor recovery

Smart Control Ecosystem

10" HMI with Paint Formulation Cloud

  • Auto Recipe Recall:

    • 100+ preset profiles (e.g., latex, alkyd, epoxy)

    • Viscosity-temperature compensation (±1 cP)

  • Real-Time Analytics:

    • Fill accuracy SPC chart

    • Cap torque distribution

    • O? ppm in headspace

  • Predictive Alerts:

    • Agitator bearing wear

    • Seal degradation index

Industry 4.0 Connectivity

  • OPC UA/MQTT to MES/ERP

  • Blockchain Traceability:

    • Raw material batch → production timestamp

  • Remote firmware updates


Operational Impact

Global Coatings Manufacturer Case:

  • Reduced giveaway from 1.5% to 0.2%

  • Eliminated 100% skinning defects

  • ROI in 7 months via material savings


Global Compliance & Upgrades

Certifications:

  • CE EN 415-6

  • REACH SVHC Compliance

  • ATEX 2014/34/EU (Zone 1 Option)

  • ISO 9001:2015

Critical Upgrades:

ModuleFunction
Inline ViscosimeterReal-time viscosity control (±50 cP)
Robotic Can HandlingAuto de-palletizing & lid feeding
X-Ray Fill CheckDetects settled pigments (≥100μm)
AR Maintenance GuideHoloLens-assisted calibration

Support & Service

24/7 Paint Sector Support:

  • Remote diagnostics via IIoT gateway

  • Critical Spares Dispatch ≤48h:

    • Degassing modules

    • Torque spindles

    • Agitator blades

  • Color Consistency Protocol:

    • Shear rate optimization reports

    • Packaging integrity validation


APPLICABLE BARREL TYPE
