GROSS BAGGING MACHINE WITH BELT FEEDER

Screw Feed Net Packer is a high accuracy bagging machine for filling powder products like chemicals, lime, pigments, flour in open-mouth bags.This packing machine include powder hopper, discharging ap

  • Brand: glzon
  • Model: GZM-50V

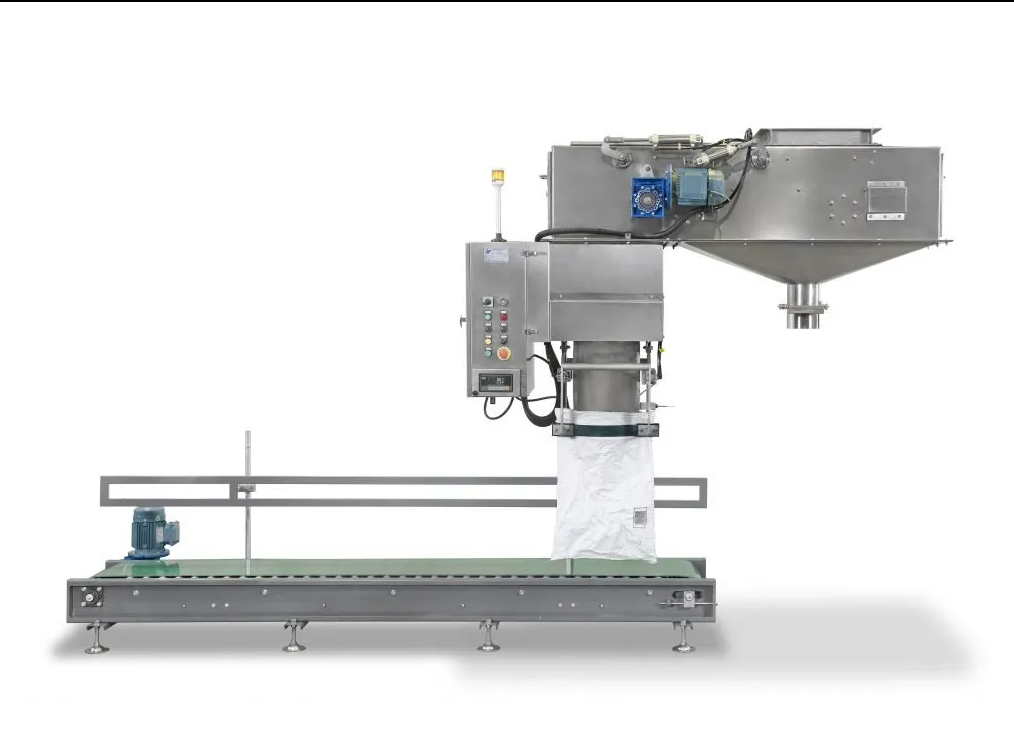

Product Introduction: GZ-GB/B Series Gross Bagging Machine with Belt Feeder

High-Speed, Gentle Handling for Granular & Fragile Materials
Shanghai Guangzhi Automation’s GZ-GB/B Series combines precision gross-weight bagging with advanced belt feeding technology, achieving ±0.5% filling accuracy at 30–40 bags/hour for grains, pellets, flakes, and fragile products. Engineered with heavy-duty construction and PLC-controlled dosing, this system reduces labor costs by 80% while minimizing product degradation – ideal for agriculture, pet food, and chemical industries.


Core Technologies & Features

  1. Gentle Belt Feeding System

    • Variable-speed conveyor belt (0.1–3 m/min) with cleated design prevents rollback

    • Product Preservation: Low-impact handling for fragile items (e.g., cereal flakes, polymer pellets)

  2. Intelligent Gross Weighing

    • 500kg load cells with ±0.5% accuracy + automatic tare compensation

    • Overfill prevention via real-time feedback control

  3. Dust Containment

    • Telescopic filling spout with inflatable collar (IP65 sealing)

    • Integrated dust vent port (connects to extraction systems)

  4. Semi-Automatic Operation

    • Operator positions bag → machine auto-fills/seals

    • Foot pedal control for hands-free cycling

  5. Industrial-Grade Build

    • 4mm carbon steel frame (1,200 kg capacity)

    • Abrasion-resistant belt (PU/PVC options)


Technical Specifications

ParameterStandard ModelHigh-Capacity Option
Bag Capacity10–50 kg25–100 kg
Throughput30 bags/hour40 bags/hour
Accuracy±0.5% (gross weight)±0.3%
Belt Width300–600 mm400–800 mm
Material CompatibilityGrains, pellets, flakes, granules (0.5–50mm)
Power Supply380V/50Hz, 3.2 kW + 0.6 MPa air
Bag TypesWoven PP, Paper, Jumbo Bags
Machine Dimensions2,500 × 1,500 × 3,000 mm
ComplianceCE, ATEX Zone 22, OIML R61

Industry Applications

IndustryTypical MaterialsSpecial Features
AgricultureAnimal feed, grainsAnti-microbial belt (USDA)
ChemicalsPlastic pellets, fertilizersATEX explosion-proofing
Food ProcessingCereals, sugar, snacksFood-grade stainless steel
RecyclingPlastic flakes, rubber crumbHeavy-duty impact beds

Workflow Process

  1. Bag Placement: Operator hangs open-mouth bag on spout

  2. Clamping: Pneumatic seal engages (dust-tight)

  3. Belt Feeding: Material gently conveyed into bag

  4. Weighing: Real-time load cell monitoring

  5. Release: Auto drop onto conveyor after target weight


Operational Advantages vs. Screw Feeders

MetricBelt FeederScrew Feeder
Product Damage<0.1% breakage2–5% breakage
Throughput40 bags/hour25 bags/hour
Energy Use30% lowerHigher power consumption
MaintenanceBelt replacement in 15 minsScrew dismantling required
Material VersatilityHandles flakes/fibersLimited to free-flowing

Customization Options

  • Belt Upgrades:

    • Chevron belts for steep inclines

    • Magnetic belts for ferrous contamination

  • Automation Packages:

    • Robotic bag placers
      |Checkweigher + reject system

  • Hazardous Environments:

    • ATEX Zone 21/22 compliance

    • Static-dissipative belts

  • Sanitary Configurations:

    • CIP-ready with polished surfaces



APPLICABLE BARREL TYPE

Drum Filling Machine

COMPANY PROFILE

Shanghai Guangzhi Automation Equipment Co., Ltd. is a production and trading company specializing in the weighing industry. We are located in Shanghai, China's economic city, with convenient transportation and export ports all over the world. We cooperate with state-owned factories and international companies, and the quality is guaranteed.

We mainly focus on providing customers with weighing solutions, from commercial scales to industrial weighing machines. Such as pneumatic valve bag packaging machine, dry mix mortar bag packaging machine, cement packaging machine, natural stone powder packaging machine, flour powder packaging machine, wheat packaging machine, potato starch packaging machine, air packaging machine, granule bag packaging machine, grain packaging machine, fertilizer bag packaging machine, lubricant filling machine, 200 kg drum filling machine, 216L drum filling machine, 208L drum filling machine, ton barrel filling machine, IBC barrel filling machine, jumbo bag packaging machine, ton bag packaging machine, 30L pail filling machine, 50L pail asphalt filling machine, ATEX barrel filling machine, explosion-proof filling machine, etc.

Drum Filling Machine

Company Certificate

Drum Filling Machine

Our office and workshop

Consulting-Design-Procurement-Processing-Production-Installation-Debugging-Training-Maintenance

Drum Filling Machine


This is a partial Drum Filling MachineDrum Filling Machine

service for us

in China.

Over 30 years of experience, every time we produce in

Shanghai, our friends can visit our factory at any time.






Brand components

We will ensure that our company's equipment has safety, stability, high efficiency and intelli-gent technology, so as to meet your needs, we can also cooperate with you in selecting in-ternational product brand production and business.

Drum Filling Machine


Our service

Complete solution provided

Telephone exchange joint business design plan, you can also visit our company ; we have a good environmental office vehicle,you can visit from time to time.


Duty after death

Our music team has a strong heart, and the customer's suspicions are also the purpose 24 hours of phone cell service and listing to the conversation at any time.


Technology group

We have a wealth of technical personnel and our technical team has been developing technical skills for over ten years.


Successful collaboration

Our factory in Shanghai. China provides free training for our technical staff.Better guarantee good product safety , our company provides safety, convenience, high efficlency packaging servic.

packge and delivery

Multiple Transportation way :Express(Fedex/DHL/TNT/EMS/UPS etc),air and shipping for your choose

Drum Filling Machine

FAQs

Our in-house designers and engineers have produced countless great designs for customers from different industries

1
Can we get your free samples?
Samples can be offered for free. But courier cost for the samples should be at buyer's account.
2
Can you print our LOGO in flatware set?
Yes.we can print the logo on the flatware set as your requirements.Embossed, laser,stamped and engraved are available.
3
How long is the delivery time of sample?
Samples from stock can be sent within 1-3 days. New produced samples will be sent within 5-15 days.
4
Is there any MOQ for what I purchase?
Yes, we have MOQ for mass production. Different item with different package has different MOQ. Please contact us for more details.
5
Do you accept OEM or ODM services?
OEM and ODM are accepted!
6
What is 18-10 Stainless Steel Flatware?
18-10 refers to the composition of stainless steel. It contains 18% chromium and 10% nickel for excellent strength and corrosion resistance.
