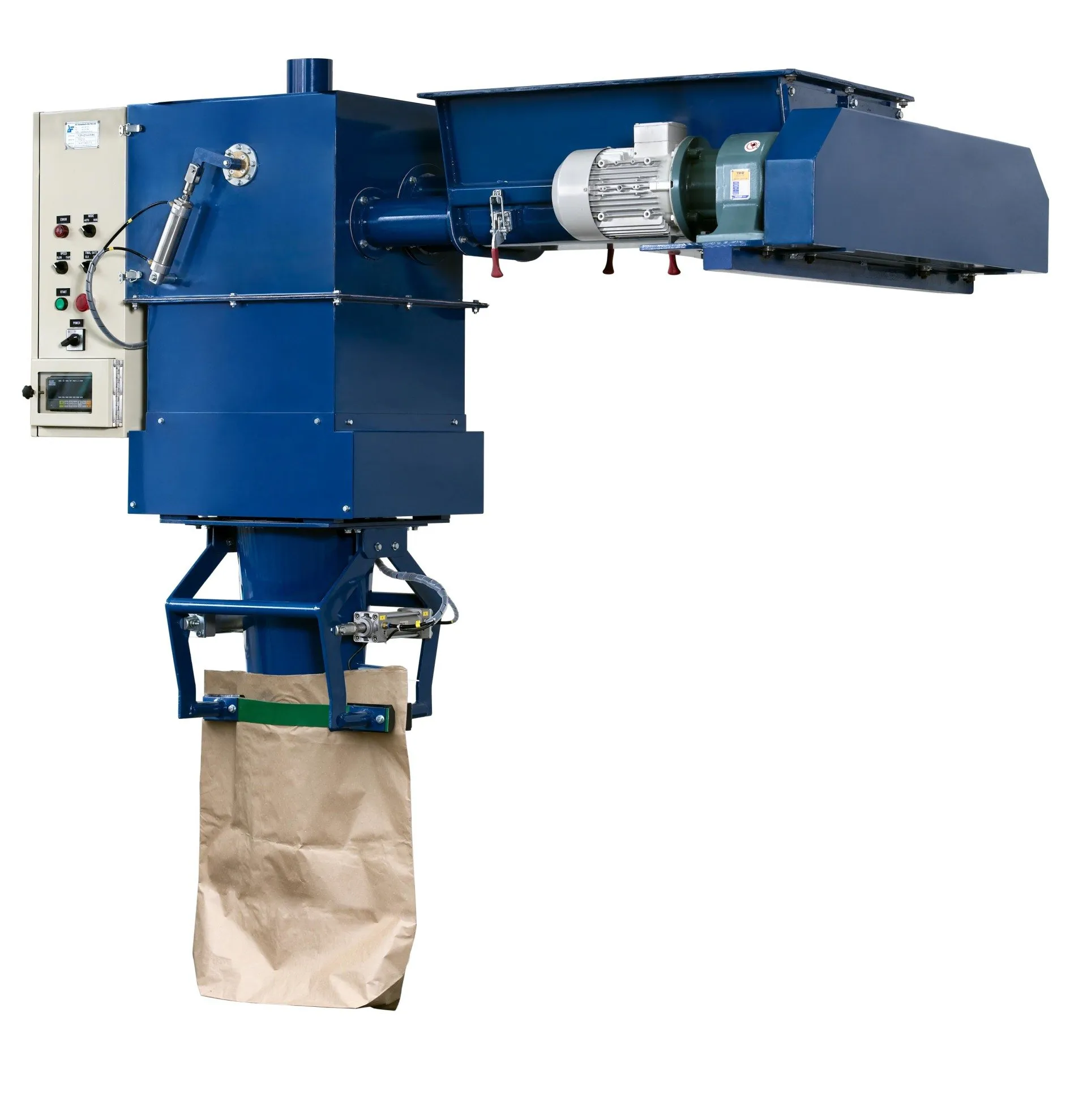

GROSS BAGGING MACHINE WITH SCREW FEEDER

Twin screw with main and dribble feed screws driven by separate motors with cut-off gate for precise clean cut and minimum free fall. Dust tight design enclosure with inlet flange connection. Its uniq

  • Brand: glzon
  • Model: GZM-50V

Product Introduction: GZ-GB Series Gross Bagging Machine with Screw Feeder

Precision Bulk Packaging for Granular & Powdered Materials
Shanghai Guangzhi Automation’s GZ-GB Series integrates advanced screw feeding technology with gross-weight bagging automation, delivering ±0.3% filling accuracy at 25 bags/hour for minerals, chemicals, and food-grade powders. Engineered with heavy-duty carbon steel construction and PLC-controlled dosing, this system eliminates manual weighing errors while reducing labor costs by 75% in demanding industrial environments.

Gross Weight Bagging Machine


Core Technologies & Features

  1. High-Precision Screw Feeder System

    • Anti-Segregation Design: Variable-pitch screw (?150–400mm) maintains product integrity for blends

    • Speed Control: 5–60 rpm adjustable via VFD (flow range: 0.5–3 T/h)

  2. Gross-Weight Bagging

    • 500kg load cells with ±0.3% accuracy

    • Automatic tare compensation for bag weight variations

  3. Dust-Tight Operation

    • Pneumatic telescopic spout + dust collection port (ISO 8573-1 Class 2)

    • IP65-rated control panel for harsh environments

  4. Semi-Auto Bag Handling

    • Bag placers position open-mouth sacks (25–50kg)

    • Foot pedal initiates filling/sealing cycle

  5. Robust Construction

    • 5mm carbon steel frame (1,500 kg capacity)

    • Abrasion-resistant screw flights (Hardox 400 coating)


Technical Specifications

ParameterSpecificationOptions
Bag Capacity25–50 kg (standard)10–100 kg
Throughput25 bags/hour40 bags/hour
Accuracy±0.3% (gross weight)±0.2% (premium load cells)
Screw Diameter?250 mm?150–400 mm
Material CompatibilityGranules (0.5–20mm), Powders (<500μm)Sticky pastes (add vibrator)
Power Supply380V/50Hz, 4.5 kW + 0.7 MPa air220V/60Hz
Bag TypesWoven PP, Paper, LaminatedValve sacks
Machine Dimensions2,800 × 1,800 × 3,200 mm
ComplianceCE, ATEX (Zone 22), OIML R61FDA/USDA (food grade)

Industry Applications

  • Minerals & Aggregates:

    • Sand, gravel, cement (dust-proof design)

  • Chemicals:

    • Granular fertilizers, polymer pellets (anti-static option)

  • Food Processing:

    • Sugar, flour, powdered ingredients (sanitary 304SS version)

  • Animal Feed:

    • Pelletized feed with additive dosing


Workflow Process

  1. Bag Placement: Operator positions empty bag on filling spout

  2. Clamping: Pneumatic clamps secure bag mouth (dust-tight seal)

  3. Screw Filling: PLC-controlled screw delivers precise material volume

  4. Weighing: Load cells monitor gross weight in real-time

  5. Release: Auto bag drop onto take-away conveyor


Operational Advantages

FeatureImpact
Labor Efficiency1 operator handles 1,250 kg/h output
Material SavingsPrevents overfill (saves 3–5% product)
Durability10,000+ hour MTBF in abrasive environments
Quick ChangeoverSwap screws in <15 mins (tool-free)
ROI Period6–10 months (vs. manual bagging)

Customization Options

  • Special Screws:

    • Ribbon screws for fragile crystals

    • Paddle screws for cohesive powders

  • Automation Upgrades:

    • Robotic bag placers
      |Automatic palletizing integration

  • Hazardous Environments:

    • ATEX Zone 21/22 explosion-proofing

    • Nitrogen purging for oxidizable materials

  • Hygienic Packages:

    • CIP-ready with polished surfaces



APPLICABLE BARREL TYPE

Drum Filling Machine
