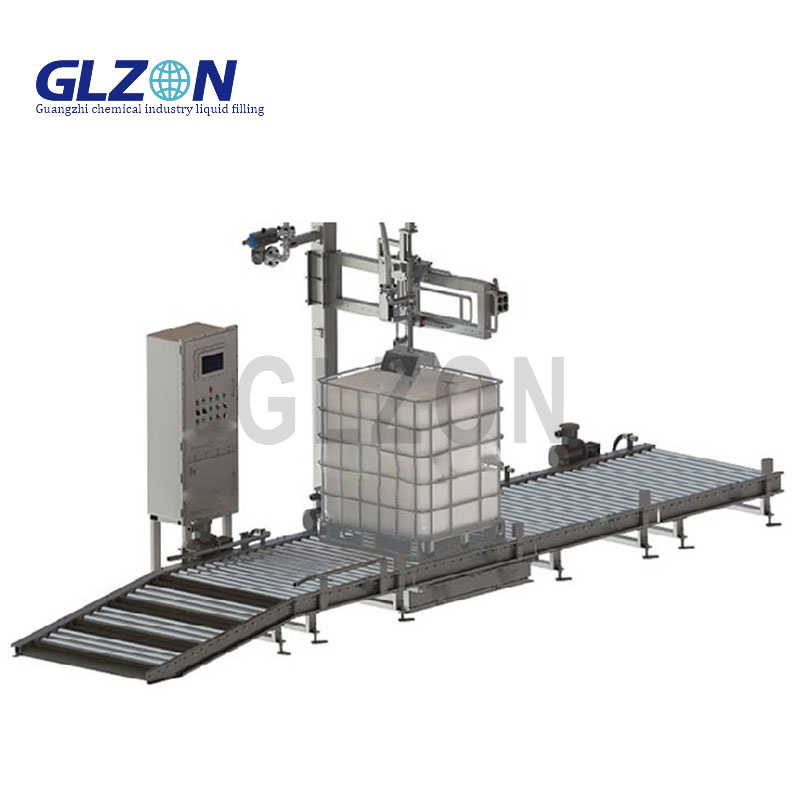

IBC filling station
The solution to meet your demands: "plug and fill". The pre-configured IBC filling station for the automatic filling of containers and drums standing on pallets. With the pre-configured pivo
- Brand： glzon
- Model： GZM
Product Introduction: GZM BulkMaster IFS-1000T
Heavy-Duty Precision Filling for 1000L IBC Totes
The GZM IFS-1000T delivers ±0.2% accuracy in filling solvents, oils, and viscous pastes (up to 500,000 cP) into 1000L IBC totes. Featuring ATEX/ISO compliance, integrated vapor recovery, and AI-driven flow control, this semi-automatic station processes 12-18 totes/hour while eliminating spills and operator exposure risks.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 500–1,500L (adjustable in 0.1L increments) |
| Accuracy | ±0.2% (Coriolis meter) / ±0.5% (mass flow) |
| Flow Rate | 50–300 L/min (servo-controlled) |
| Viscosity Range | 1–500,000 cP (heated lines optional) |
| Tote Types | UN-certified caged/foldable IBCs |
| Material Contact | 316L SS / Hastelloy C276 / PTFE-lined |
| Power | 380V/50Hz, 8.5 kW |
| Vapor Recovery | >99% efficiency (carbon adsorption) |
Core Technology
| System | Innovation | Benefit |
|---|---|---|
| Smart Grounding | Auto-impedance check (<10 Ω) + dual sensors | Prevents static ignition |
| VaporLock? Hood | Nitrogen inerting + LEL monitoring | ATEX Zone 1 compliance |
| Abrasion Defense | Tungsten carbide pump (200 bar pressure) | Handles slurries/abrasives |
| AI Flow Optimization | Real-time viscosity compensation | ±0.5% accuracy in density shifts |
Performance vs. Manual Filling
| Metric | IFS-1000T | Manual Process | Savings |
|---|---|---|---|
| Throughput | 18 totes/hour | 3 totes/hour | 6× faster |
| Material Waste | 0.15% | 3–8% | 98% reduction |
| VOC Exposure | <1 ppm | 50–500 ppm | OSHA compliance |
| Spill Events | Zero | 2–5/month | 100% elimination |
Target Industries
Chemicals: Solvents, acids, polymer resins
Food & Pharma: Edible oils, syrups, glycerin (GMP option)
Lubricants: Gear oils, greases, machining fluids
Paints: Resins, additives, thinners
Industrial-Grade Components
Progressive Cavity Pump: 200-bar pressure for high-viscosity transfer
Overfill Prevention: Redundant sensors (weight + ultrasonic)
Control Panel: 10" IP66 HMI with recipe storage (100+)
Safety Interlocks: Emergency stop, gas detection, purge failure alarm
Why Choose IFS-1000T?
? Explosion Safety: ATEX II 2G Ex db IIC T6 / IECEx certified
? Zero Contamination: Quick-change fluid paths (3-min swap)
? Future-Ready: IoT-enabled for predictive maintenance
? Global Compliance: CE, PED 2014/68/EU, ASME BPE
Options & Upgrades
Nitrogen Blanketing: O? < 0.1% for pyrophoric liquids
High-Temp Kit: 200°C capability for molten materials
EX-Proof Label Printer: GHS/CLP-compliant labeling
Automated Tote Handling: Robotic arm integration

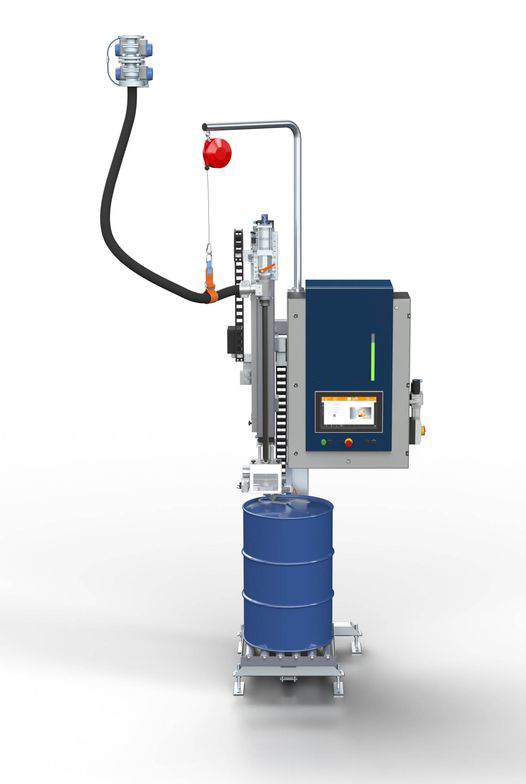

APPLICABLE BARREL TYPE
