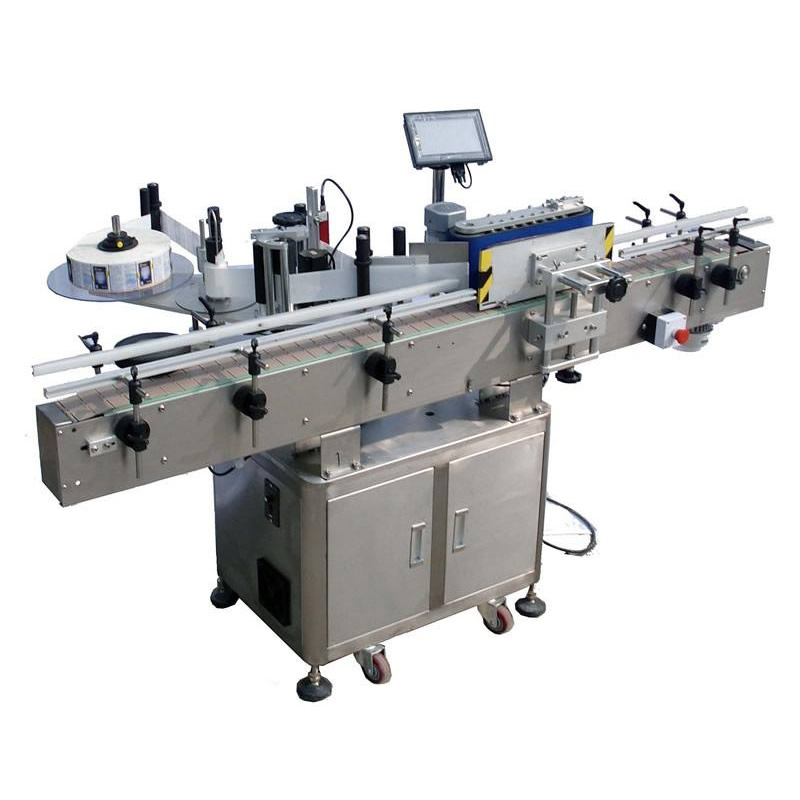

Side label machine
Industrial side label applicator achieves ±0.15mm accuracy at 200 units/min. AI print inspection, 10s tool-free changeover & GMP/ATEX compliance. Reduce mislabels by 99.9%.
- Brand: glzon
- Model: GZM
Industrial side label applicator achieves ±0.15mm accuracy at 200 units/min. AI print inspection, 10s tool-free changeover & GMP/ATEX compliance. Reduce mislabels by 99.9%.
Shanghai Guangzhi Automation
Precision-engineered for high-speed production lines, this side labeling system achieves ±0.15mm placement accuracy on curved, flat, or irregular containers at 200 units/minute. Combining military-grade motion control, AI-driven inspection, and tool-free changeover, it eliminates mislabels while reducing material waste by 30%.
Parameter | Standard Model | Pharma-Grade Model |
---|---|---|
Accuracy | ±0.2mm | ±0.15mm |
Speed | 200 containers/min | 180 containers/min |
Label Width Range | 20–150mm | 20–120mm |
Min. Container Size | ?25mm × 50mm H | ?30mm × 60mm H |
Print Inspection | 600dpi OCR/OCV | 800dpi with UV validation |
Power Supply | 110–240VAC, 1.5kW | 110–240VAC, 1.8kW |
Air Consumption | 60 L/min @ 0.6MPa | 70 L/min @ 0.6MPa |
Changeover Time | <15s | <10s |
Compliance | CE, UL | FDA 21 CFR Part 11, GMP |
Adaptive Surface Tracking
6-axis robotic arm with ±0.05mm path repeatability
Real-time curvature compensation (R≥15mm)
AI-Powered Quality Gate
Detects 0.1mm2 print defects
Barcode readability verification (ISO/IEC 15416 Grade A)
Instant rejection rate: 50ms response
Zero-Downtime Flexibility
Tool-less label reel change (<30s)
Auto-recognition of container profiles
Pharmaceuticals:
Isopropyl wipe station pre-application
Blockchain-enabled serialization
Food & Beverage:
IP69K washdown-rated components
Condensation-resistant vision system
Chemicals:
ATEX Zone 2 option (Ex nA II T4)
Solvent-resistant sensors
99.98% First-Pass Yield (validated with ISO 2858)
40% Reduction in Label Waste vs. conventional systems
ROI: 6 months (based on 24/7 operation)
CE EN 60204-1
FDA 21 CFR 177.2600
ISO 9001:2015
ATEX 2014/34/EU (Zone 22 option)
Precision Engineered. Intelligently Verified.
Shanghai Guangzhi: Where every label becomes a guarantee of quality – from barcode to brand integrity.
