Guangzhi’s automated 30L pail filler/capper delivers ±0.25% accuracy & leak-proof seals. ATEX-certified. 85% labor reduction & near-zero spills. Free demo!
*Integrated Solution for 30L Pails: Precision Filling + Leak-Proof Sealing*

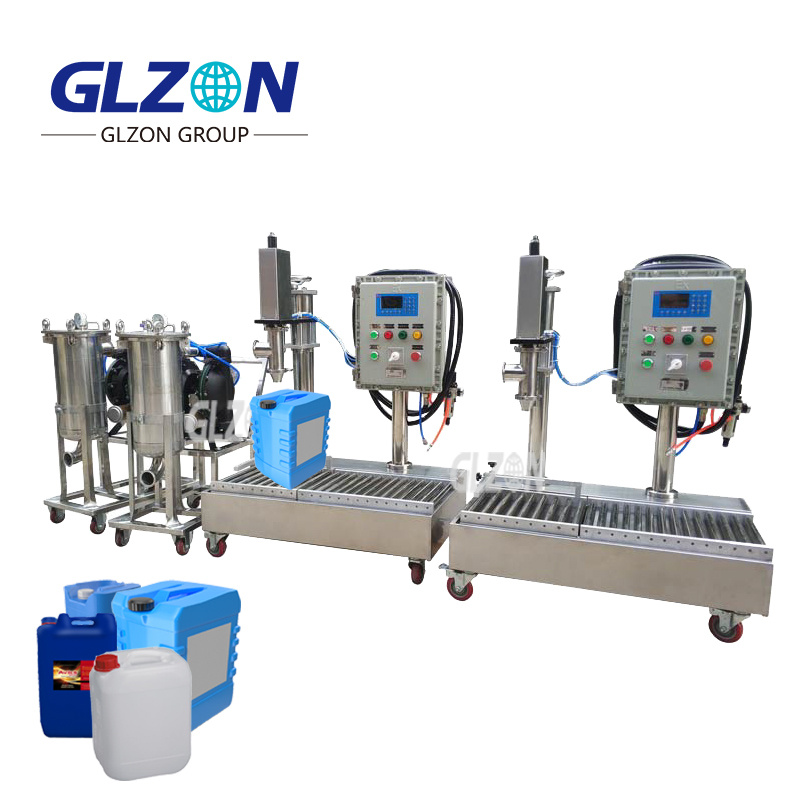

Shanghai Guangzhi Automation’s GZ-PFC800 Series automates the packaging of inks, paints, and motor oils into 30L industrial pails with ±0.25% weight accuracy and 15 pails/hour throughput. This ATEX/CE-certified system combines gravimetric filling, torque-controlled capping, and vapor-recovery technology to eliminate spills, reduce labor by 85%, and ensure OSHA-compliant handling of solvents and volatile compounds.
Closed-Loop Filling & Capping
Net-Weight Filler: Load-cell-controlled servo pumps adjust for viscosity shifts (1–100,000 cP) with ±0.25% accuracy.
Auto Capper: Applies screw caps/lids with 10–50 Nm torque (programmable for leak-proof seals).
Vapor & Spill Containment
Sealed Filling Chamber: Nitrogen inertization + vapor recovery (≤10 ppm VOC emissions).
Drip-Free Nozzles: Vacuum suck-back + anti-static tips prevent static discharge in solvents.
Corrosion-Resistant Build
316L SS/PTFE Fluid Path: Resists pigment abrasion (inks), alkyd resins (paints), and sulfur compounds (motor oils).
ATEX Zone 1 Option: Explosion-proof electronics for flammable vapors (e.g., toluene, mineral spirits).
Operator-Safe Automation
Robotic Pail Handling: Automatic positioning/clamping; no manual lifting.
HMI Diagnostics: 12" touchscreen with OEE tracking and jam alerts.
| Parameter | Specification |
|---|---|
| Model | GZ-PFC800-Pro |
| Pail Capacity | 30L (range: 20–50L) |
| Filling Accuracy | ±0.25% |
| Capping Torque | 10–50 Nm (adjustable) |
| Throughput | 15 pails/hour |
| Viscosity Range | 1–100,000 cP |
| VOC Recovery | >95% efficiency (optional) |
| Power | 380V/50Hz, 5.5 kW |
| Air Supply | 0.7 MPa, 0.4 m3/min |
| Footprint (L×W×H) | 3200 × 1500 × 2400 mm |
| Compliance | ATEX, CE, OSHA 1910.106, ISO 80079 |
| Metric | GZ-PFC800 Automated | Manual Operation |
|---|---|---|
| Output (8h) | 120 pails | 24 pails |
| Labor | 0.5 operators | 3 operators |
| Spillage Loss | <0.1% | 4–12% |
| Seal Failure Rate | 0.01% | 2–5% |
| ROI Period | 7–11 months | N/A |
Inks: Nitrogen purge prevents skinning; conductive hoses (106–109 Ω resistance).
Paints: Self-cleaning nozzles for pigment-rich formulas; Agitator-equipped hopper.
Motor Oils: High-flow filling (40 L/min); API/SAE-compliant material traceability.
