Semi Auto Metal Pail/Tin Filling Machine
Guangzhi’s semi-auto filler achieves ±0.25% accuracy for metal pails/tins. ATEX-certified, 75% labor reduction & <0.08% waste. Free chemical test!
- Brand： glzon
- Model： GZM_30L

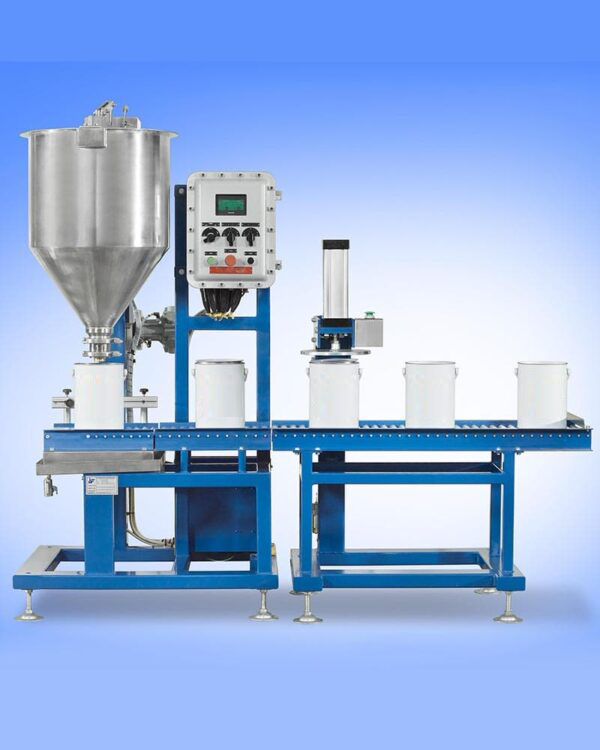

Semi-Automatic Metal Pail/Tin Filler GZ-SMT700 Series
*Heavy-Duty Gravimetric Filling for Steel Pails & Tin Containers (5-50L)*
Shanghai Guangzhi Automation’s GZ-SMT700 delivers ±0.25% weight accuracy for filling paints, solvents, greases, and corrosive chemicals into 5–50L metal containers. Designed for ATEX/OSHA compliance, this system combines operator-assisted loading with servo-controlled gravimetric technology – reducing spills by >99%, cutting labor costs by 75%, and ensuring safe handling of flammable or reactive materials.
Engineering Innovations
Static-Safe Precision Filling
ATEX Zone 1 Load Cells: Explosion-proof certification for solvents (flash point <23°C).
Conductive Nozzles & Grounding Clamps: <10? Ω resistance prevents electrostatic discharge.
Corrosion-Resistant Architecture
316L SS/Halar? Fluid Path: Resists acids (pH 0.5), alkalis (pH 14), and abrasive pigments.
Quick-Change Adaptors: Magnetic couplings swap nozzles for pail/tin necks (?40–150mm) in <30 seconds.
Operator-Centric Safety
Height-Adjustable Fill Head (500–1,300mm): Fits palletized containers.
Hands-Free Control: Foot pedal + auto-shutdown if weight deviation exceeds ±1%.
Zero-Waste Technology
Vacuum Suck-Back System: Residual loss <0.08% (patented anti-drip valve).
Viscosity Intelligence: Handles 1–300,000 cP materials (e.g., gear oil to epoxy putty).
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | GZ-SMT700-Pro |
| Container Capacity | 5–50L (steel pails/tins) |
| Accuracy | ±0.25% (gravimetric) |
| Viscosity Range | 1–300,000 cP |
| Throughput | 12–18 containers/hour |
| Max. Filling Pressure | 40 bar (for high-viscosity silicones) |
| Power | 380V/50Hz, 4.0 kW |
| Air Supply | 0.6 MPa, 0.3 m3/min |
| Material Contact | 316L SS, Halar?, PTFE |
| Footprint (L×W×H) | 1900 × 1100 × 2300 mm |
| Compliance | ATEX, CE, OSHA 1910.106, ISO 80079 |
Performance vs. Manual Filling
| Metric | GZ-SMT700 Semi-Auto | Manual Process |
|---|---|---|
| Hourly Output | 18 containers | 3–4 containers |
| Labor | 1 operator | 3 operators |
| Material Waste | <0.08% | 4–12% |
| Spill Events | 0 | 3–7 daily |
| ROI Period | 5–8 months | N/A |
Industry-Specific Solutions
Paints/Solvents: Nitrogen purge (<10 ppm O?) + vapor recovery hood.
Lubricants: High-flow mode (45 L/min) with anti-foam.
Acid Transfer: Halar?-coated wetted parts for pH 0.5 resistance.
Adhesives: Heated hopper (40–80°C) prevents curing.
