GZM SCF-1000T semi-auto IBC filler handles 1000L chemical resins/pastes (500,000 cP) at 12 totes/hour with ±0.5% accuracy. Features ATEX safety, vapor recovery, and hydraulic pumping. Reduces waste to 0.3% and operator exposure to <1 ppm VOC. Ideal for epoxy, solvents, and greases. Includes auto grounding and CIP capability.
Heavy-Precision Transfer for 1000L Intermediate Bulk Containers (IBCs)

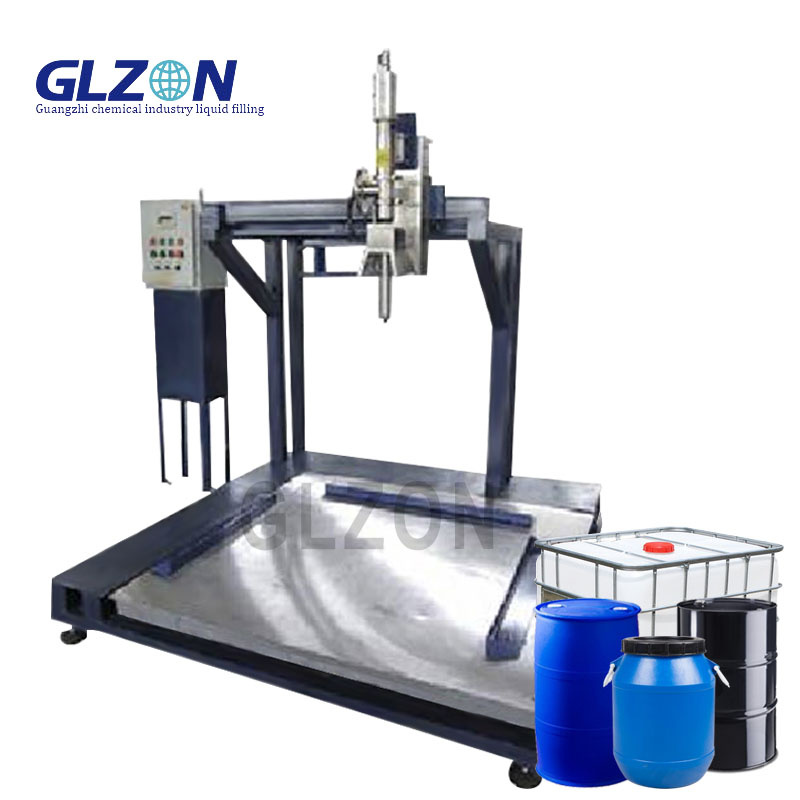

The GZM ChemiFill SCF-1000T delivers ±0.5% accuracy in filling resins, solvents, adhesives, and pastes (up to 500,000 cP) into 1000L IBC totes. Combining industrial-grade components with operator-assisted controls, this system handles viscous and hazardous materials at 8-12 totes/hour while ensuring ATEX compliance and zero cross-contamination.
| Parameter | Specification |
|---|---|
| Capacity | 500–1,200L (adjustable in 0.5L increments) |
| Accuracy | ±0.5% (mass flow) / ±1% (high-viscosity) |
| Viscosity Range | 100–500,000 cP (heated option available) |
| Flow Rate | 150–300 L/min |
| Tote Types | UN-certified IBCs (caged or foldable) |
| Material Contact | 316L SS / Hastelloy C22 / PTFE-lined |
| Power | 380V/50Hz, 11 kW |
| Safety Certifications | ATEX II 2G Ex db IIC T6, IECEx, OSHA 1910.106 |
| Challenge | SCF-1000T Solution |
|---|---|
| High-Viscosity Transfer | Hydraulic piston pump (200 bar) + pre-heating jacket |
| Resin Crystallization | Steam-traced lines + insulated hoses |
| Grounding Safety | Auto impedance check (<10 Ω) + dual sensors |
| Residual Material | Pneumatic piston scraper (99.9% evacuation) |
| Metric | SCF-1000T | Manual Operation | Savings |
|---|---|---|---|
| Throughput | 12 totes/hour | 2 totes/hour | 6× faster |
| Material Waste | 0.3% | 4–8% | 96% reduction |
| Operator Exposure | <1 ppm VOC | 50–200 ppm | 99% safer |
| Spill Containment | 100% capture | Frequent spills | Zero EPA incidents |
Chemicals: Epoxy resins, polyurethanes, silicone polymers
Pastes: Sealants, lubricating greases (NLGI Grade 0-3)
Solvents: Acetone, toluene, MEK (with vapor recovery)
Food/Pharma: Glycerin, syrups, pharmaceutical intermediates (GMP option)
Pumping System: Progressive cavity pump (200 bar)
Weighing Platform: 2,500 kg capacity (±0.1% FS)
Vapor Hood: Carbon adsorption + LEL monitoring
Control Panel: 10" IP66 HMI with recipe storage (100+)
Quick-Change Couplings: Sanitary Tri-Clamp or DIN 11851
? Explosion Safety: ATEX gas/dust group IIC T6 certification
? Zero Dead Legs: CIP/SIP-ready for FDA batches
? Viscosity Mastery: Handles thixotropic pastes (500,000 cP)
? Rugged Mobility: Forklift slots + heavy-duty casters (3-ton capacity)
Nitrogen Purging Kit: O? < 0.1% for reactive resins
Ex-Proof Label Printer: GHS/CLP hazard labeling
High-Temp Kit: 200°C for molten sulfur/pitch
IoT Module: Cloud-based batch reporting (CFR 21 Part 11)
