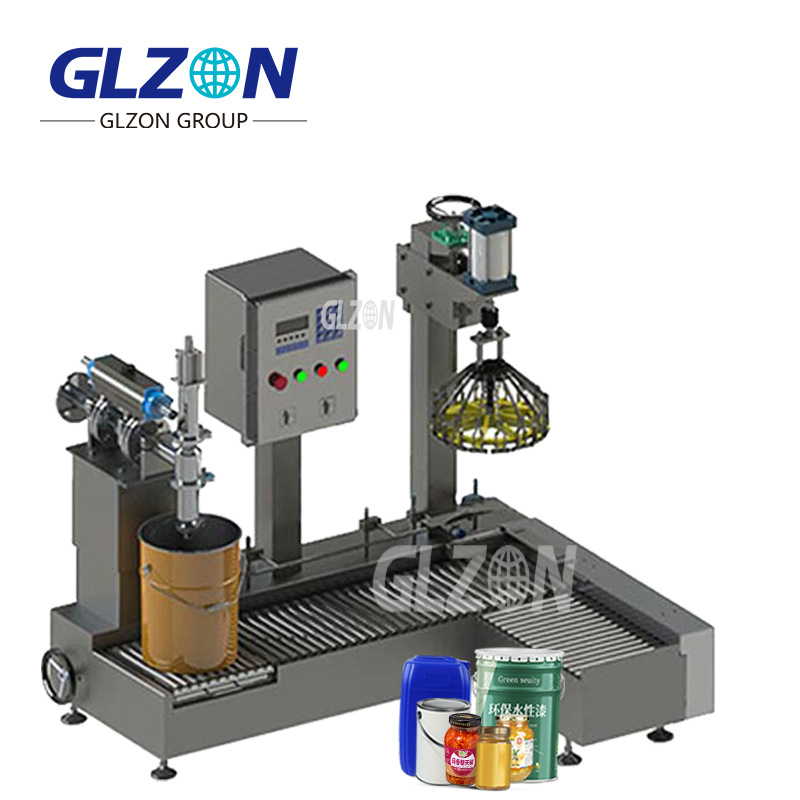

Precision Gravimetric Filling for Paints, Coatings & Resins (5–25kg Containers)
Shanghai Guangzhi Automation’s GZ-SPF2500 delivers ±0.25% weight accuracy for filling abrasive, high-viscosity (up to 300,000 cP), and reactive materials into pails, drums, or jerrycans. Designed for paint manufacturers, industrial coating suppliers, and composite material producers, this ATEX/CE-certified system reduces spillage by >99%, cuts labor costs by 80%, and ensures OSHA/REACH compliance for solvent-based paints, UV-cured resins, and epoxy coatings.
Smart Viscosity Compensation
Shear-Force Adaptive Pumping: Servo-driven progressive cavity pumps auto-adjust for shear-thinning/thickening behavior (e.g., latex paints, thixotropic resins).
Heated Path (40–90°C): PTFE-lined hoses with jacket heating maintain optimal viscosity for filled materials.
Hazard-Safe Operation
ATEX Zone 1/21 Option: Explosion-proof load cells/IP66 motors for flammable solvents (flash point ≤23°C).
StaticControl? System: Conductive nozzles (<10? Ω) + grounded clamps prevent static ignition.
Operator-Optimized Design
Height-Adjustable Fill Head (600–1,300mm): Accommodates palletized containers.
Foot Pedal + Hands-Free Mode: Dual control options with emergency stop (<0.3s response).
Zero-Contamination Architecture
316L SS/Halar? Fluid Path: Resists pigments, acids (pH 0.5), and solvents.
Quick-Change Nozzles: Swap for container necks (?50–150mm) in <45 seconds.
| Parameter | Specification |
|---|---|
| Model | GZ-SPF2500-Pro |
| Capacity | 5–25 kg (extendable to 30 kg) |
| Accuracy | ±0.25% (gravimetric) |
| Viscosity Range | 50–300,000 cP |
| Throughput | 15–20 containers/hour |
| Max. Filling Pressure | 40 bar (60 bar for resins) |
| Material Contact | 316L SS, Halar?, PTFE |
| Power | 380V/50Hz, 5.0 kW |
| Air Supply | 0.7 MPa, 0.4 m3/min |
| Heating Option | 40–90°C (±1°C control) |
| Footprint (L×W×H) | 2200 × 1200 × 2400 mm |
| Compliance | ATEX, CE, REACH, ISO 80079 |
| Metric | GZ-SPF2500 Semi-Auto | Manual Filling |
|---|---|---|
| Output (8h) | 160 containers | 32 containers |
| Labor | 1 operator | 3 operators |
| Material Waste | <0.1% | 5–18% |
| Spill Events | 0 | 4–10 daily |
| ROI Period | 6–10 months | N/A |
| Application | Guangzhi Technology |
|---|---|
| Solvent-Based Paints | VOC recovery hood (>95% capture) |
| Epoxy/UV Resins | Dual-component metering (1:1 to 100:1) |
| Abrasive Coatings | Tungsten-carbide pump rotors (3× lifespan) |
| Acidic Liquids | Halar? coating (pH 0.5–14 resistance) |
