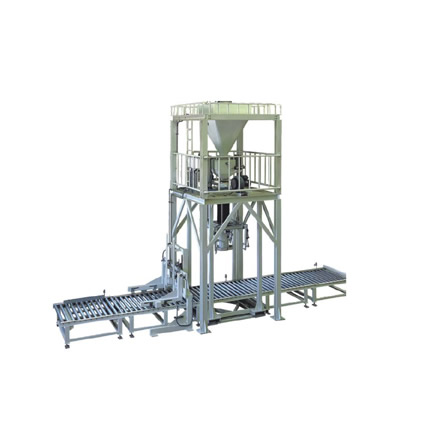

Ton bag packaging machine
Automatic ton bag filler for 500-2000kg bulk materials. ±0.2% weighing accuracy, dust containment & auto spout sealing. 15 bags/hour. Ideal for cement/chemicals/minerals.
- Brand: glzon
- Model: GZM-50V
Automatic ton bag filler for 500-2000kg bulk materials. ±0.2% weighing accuracy, dust containment & auto spout sealing. 15 bags/hour. Ideal for cement/chemicals/minerals.
Shanghai Guangzhi Automation’s Ton Bag Filler masters 500-2000kg bulk material packaging with ±0.2% gravimetric accuracy. Engineered for cement, minerals, polymers, and chemicals, it features dual-load cell weighing, closed-loop dust containment, and robotic spout handling, achieving 15 bags/hour while reducing material loss by 99% and ensuring OSHA/ATEX compliance.
1. Heavy-Duty Precision Weighing
System | Technical Advantage |
---|---|
Dual Load Cells | OIML R60 Class III (±0.1%) |
Loss-in-Weight Control | Real-time flow compensation (±0.2%) |
Shock Absorption | Hydraulic dampers (50G impact) |
Auto Tare | ±1kg bag weight deduction |
2. Industrial Dust Containment
Triple-Seal System:
Telescopic spout with inflatable seal
Negative pressure hood (≤5mg/m3 dust)
HEPA filtration (99.99% @ 0.3μm)
Explosion Protection:
ATEX Zone 21 option (Ex t IIIC)
Nitrogen inerting for combustible dusts
3. Automated FIBC Handling
Process | Technology |
---|---|
Bag Positioning | Laser-guided AGV pallet |
Spout Opening | Robotic arm + vacuum gripper |
Filling Control | Auto-stop at 95% → dribble fill |
Sealing | Heat seal / sewing / spout lock options |
Parameter | Standard Model | Hazardous Zone Model |
---|---|---|
Capacity | 500-2000kg (±0.2%) | 500-1500kg (±0.3%) |
Throughput | 15 bags/hour | 12 bags/hour |
Bag Size | 90×90×200cm | 90×90×200cm |
Material Density | 0.3-2.5 g/cm3 | 0.3-2.0 g/cm3 |
Dust Emission | ≤5 mg/m3 | ≤1 mg/m3 (ATEX) |
Power | 380V/50Hz, 11kW | 380V/50Hz, 9.5kW |
Air Consumption | 300 L/min @ 0.7MPa | 250 L/min @ 0.7MPa |
N? Consumption | - | 20 L/min @ 4bar |
Footprint (L×W×H) | 6000×4000×6500mm | 6500×4000×7000mm |
Material | Guangzhi Solution |
---|---|
Cement/Powder | Anti-bridging vibrators + fluidizing pads |
Plastic Pellets | Low-shear auger (shear <200 s?1) |
Metal Powders | Explosion venting + static control |
Food Granules | IP69K washdown + USDA materials |
15" HMI with IoT Dashboard
Real-Time Monitoring:
Fill accuracy SPC chart
Dust concentration alarms
Bag tension force analytics
Predictive Maintenance:
Conveyor belt wear index
Filter differential pressure
Industry 4.0 Integration
OPC UA to WMS/ERP (SAP integration)
Blockchain traceability:
Batch number → bag serial number
Remote calibration via AR glasses
German Cement Plant Case:
Reduced material loss from 1.2% to 0.05%
Eliminated $250k/year dust cleanup costs
ROI in 14 months via automation savings
Certifications:
CE EN 61496-1 (Safety)
OIML R60 Class III
ATEX 2014/34/EU (Zone 21)
FDA 21 CFR 177.2600 (Food option)
Critical Upgrades:
Module | Function |
---|---|
AGV Integration | Auto transport to warehouse |
X-Ray Inspection | Detects lumps/contaminants (≥5mm) |
Bag Compression | Reduces volume by 30% |
Carbon Footprint Tracker | ISO 14067 compliance reporting |
24/7 Heavy Industry Support:
Remote diagnostics via 5G IIoT
Critical Spares Dispatch ≤72h:
Load cells (up to 5t capacity)
Inflatable seals
HEPA filter modules
On-Site Optimization:
Material flow testing
Dust emission validation
APPLICABLE BARREL TYPE
