Auto Auger Valve Packaging Machine for Packaging Powder/Flour/Coffee Powder/Additive

2025-07-04 16:09:08 glzon

Auto Auger Valve Packaging Machine

Model NO.
GZM-50A
Automatic Grade
Semi-Automatic
Application
Cleaning, Detergent, Cosmetics, Skin Care Products, Oil, Tea, Rice, Flour, Seasoning
Type
Filling and Sealing Machine
Forming Species
Bag Moulding
Forming Function
Forming, Filling
Driven Type
Mechanical
Material Type
Powder
Packaging
Bag
Packaging Material
Bamboo, Wood
Core Components
Pressure Vessels, Pumps, Plcs, Gears, Bearings, Ge
Voltage
220V 380V 50/60Hz
Applicable Industries
Hotels, Manufacturing Plants, Food and Beverage Pl
Quantitative Error
±0.2%Fs
Transport Package
Wood
Specification
1850mmX700mmX1200mm
Trademark
GLZON
Origin
Shanghai

Packaging & Delivery

Package Size
160.00cm * 80.00cm * 180.00cm
Package Gross Weight
300.000kg

Product Description


Product Description

Auto Auger Valve Packaging Machine for Packaging Powder/Flour/Coffee Powder/Additive
Applicable material

Auto Auger Valve Packaging Machine for Packaging Powder/Flour/Coffee Powder/Additive                        rice                                             flour                                          Buckwheat                                    cat litter
Auto Auger Valve Packaging Machine for Packaging Powder/Flour/Coffee Powder/Additive                      peanut                                       dog food                                     Stoneboog                                chemical fertilizer
Auto Auger Valve Packaging Machine for Packaging Powder/Flour/Coffee Powder/Additive              coarse food grains                                 tea                                              cereal                                         candy

Product Parameters

Applicable materialsfood pellets, corn, seed, Sesame, beans, fertilizer granules, Rubber particles, feed pellets,coal...
Package weight range15-50kg/ bag
power supplyAC220V 380V 50/60Hz
Air pressure (Mpa)0.6-0.8MPA
Filling accuracy (%)±0.2%
Packaging speed200-300 packs/hour
Materialsus304/sus316/carbon steel/PTFE

Product features

    ? The single-station independent weighing system adopts servo motor arc gate control, which enables fast weighing and high precision.
    ? High-resolution three-point suspension sensor with high sensitivity and more stable weighing.
    ? The Chinese and English touch screen operation interface makes the parameter settings clear at a glance and the operation is more user-friendly. A variety of different product parameters can be set to realize the selection of different products and measurement values.
    ? It is equipped with a linkage interface to realize linkage work with other packaging equipment.
    ? This unit consists of a bag preparation warehouse, bag taking and sorting device, bag loading robot, bag clamping and unloading device, bag pushing device, bag mouth guide device, vacuum system and control system.
Auto Auger Valve Packaging Machine for Packaging Powder/Flour/Coffee Powder/Additive

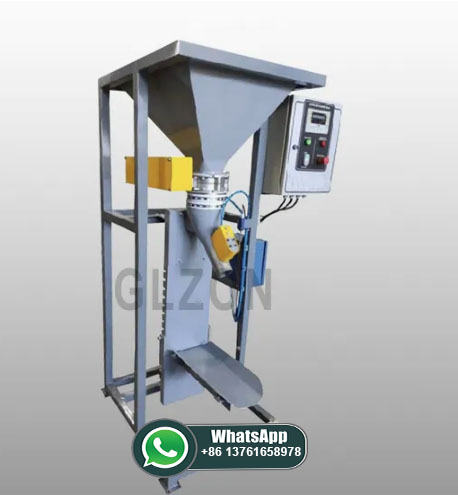

Detailed Photos

Auto Auger Valve Packaging Machine for Packaging Powder/Flour/Coffee Powder/Additive
Features

Low pollution adopts low air pressure instantaneous flow control. The amount of mixed air during the transportation of materials is very small, and the air pressure is extremely low (about 0.01-0.05Mpa). During the packaging process, bulging, breaking, and material leakage are avoided, effectively controlling the appearance of dust. leakage, effectively reducing the amount of pollution from traditional packaging machines by 70%-90%.
How to operate

The material is added to the weighing hopper by the feeding mechanism (pneumatic gate). After the controller receives the weight signal from the sensor, it controls according to the preset program value. At the beginning, rapid feeding (fast, medium and slow feeding at the same time) is performed. When the weight ≥ (target value - coarse measurement value), stop the fast acceleration signal output and enter the medium speed (medium acceleration and slow acceleration at the same time) feeding; when the weight ≥ (target value - fine measurement value), stop the medium speed Add signal output and enter slow speed (slow adding) feeding; when the weight ≥ (target value - overshoot value), stop slow adding signal output, the feeding door is completely closed, and fixed value weighing is completed. After the bag clamping signal is input, the weighing hopper discharge door automatically opens. When the weight ≤ zero setting value, the weighing hopper discharge door automatically closes, and the material bag automatically releases and falls onto the conveyor belt, and is sent to the sewing machine. After sewing the bag, it enters the next process, and at the same time, the controller enters the next control cycle.
Auto Auger Valve Packaging Machine for Packaging Powder/Flour/Coffee Powder/Additive
Auto Auger Valve Packaging Machine for Packaging Powder/Flour/Coffee Powder/Additive
Touch screen PLC control

Touch screen, PLC, C3 level load cell, dual 6-bit high-precision weighing controller (sampling speed up to 128 times/second), and frequency converter to ensure filling quality and accuracy

Structure and composition

It is mainly composed of material inlet, feeding mechanism (gate), weighing hopper, bag clamping mechanism, frame, air suction port, pneumatic system, sensor, control box, etc.
Auto Auger Valve Packaging Machine for Packaging Powder/Flour/Coffee Powder/Additive

Company Profile
Auto Auger Valve Packaging Machine for Packaging Powder/Flour/Coffee Powder/Additive

Our company

Shanghai Guangzhi Automation Equipment Co., Ltd. is a domestic high-tech enterprise located in Songjiang District, Shanghai. This is Shanghai's large industry and large equipment manufacturing base."High excellence and high compatibility" is the manufacturing guideline of Shanghai Guangzhi Instrument Equipment Co., Ltd. The company has passed the IS09001 international quality system certification and IS014001 environmental management system certification. The mechanical equipment is gradually passing the "CE certification". Shanghai Guangzhi Specializing in the production of packaging machinery, customers are welcome to negotiate.


Factory strength display
Auto Auger Valve Packaging Machine for Packaging Powder/Flour/Coffee Powder/Additive
                                                                     Shipping scenario
Auto Auger Valve Packaging Machine for Packaging Powder/Flour/Coffee Powder/AdditiveAuto Auger Valve Packaging Machine for Packaging Powder/Flour/Coffee Powder/Additive                                                                         Component brand
Auto Auger Valve Packaging Machine for Packaging Powder/Flour/Coffee Powder/Additive
Special note

Note: Our company reserves the right to update product designs and speci?cations at any time. The product information description on this page does not constitute any guarantee or commitment, and is not regarded as a product or service contract term.
